Technical drawing

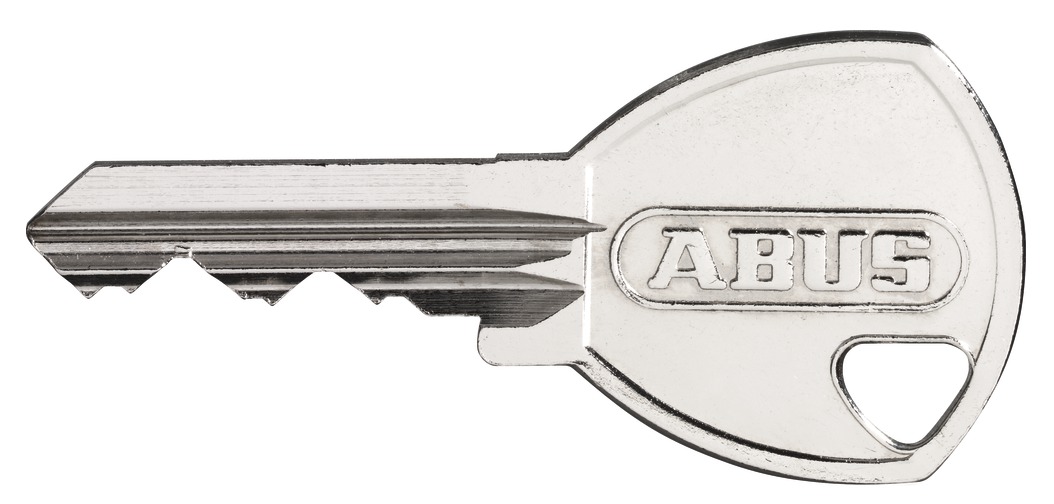

Shackle locked on both sides Paracentric keyway: resists professional picking by special key profile Shackle made from hardened steel New sophisticated plating for extreme corrosion resistance
|||

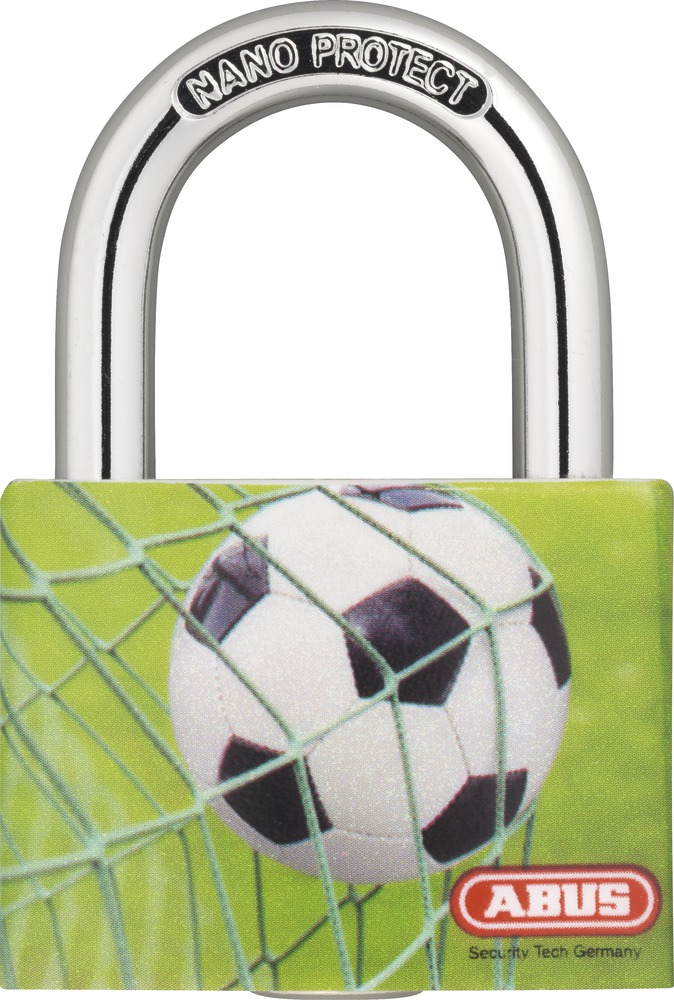

T65AL/40 soccer

It's mySport

Technology:

  • Solid aluminium body
  • High-quality printed vinyl casing to prevent damage
  • Inner components made from non-corrosive materials
  • Special alloy steel shackle with NANO PROTECT™ coating
  • Precision pin tumbler cylinder
  • Double bolted
  • Vinyl casing with different casings: football, tennis, basketball, handball, ice hockey, golf and swimming

Operation and use:

  • To secure valuables / goods of medium value or at an average risk of theft

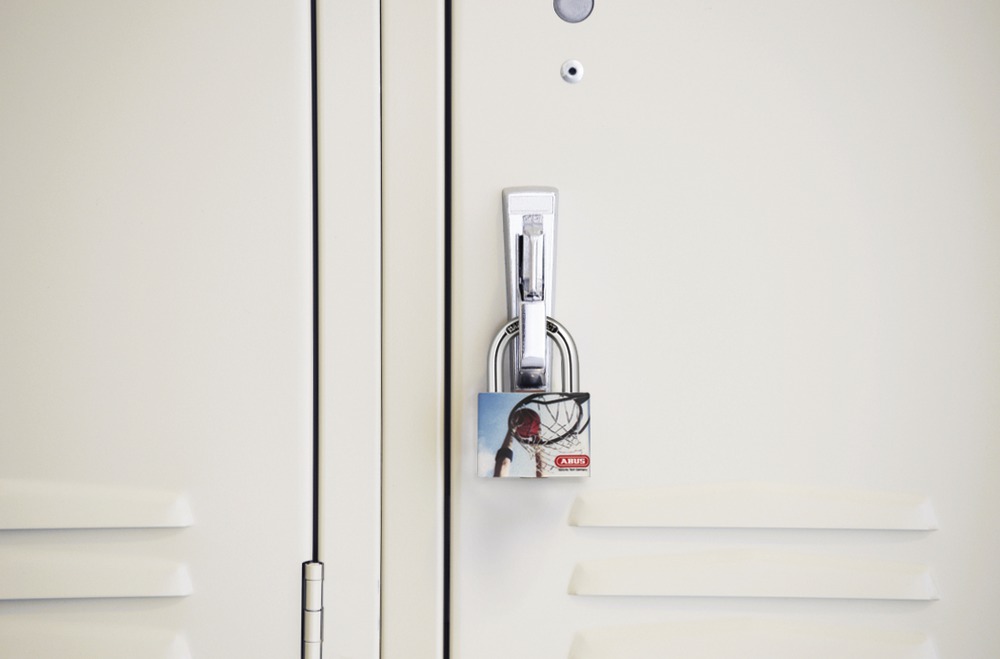

  • Ideal to individually secure lockers and wardrobes (e.g. in fitness centers), for cellar sheds, tool boxes, etc.

Variants:

  • Size: 30 mm, 40 mm
  • Motifs: soccer (also in 30 mm), tennis (also in 30 mm), handball, basketball, ice hockey, golf, swimming

Technical data:

Art. no.: 56695
Width a [mm]: 43
Horizontal clearance b [mm]: 22
Vertical clearance c [mm]: 23
Shackle diameter d [mm]: 6.5
Depth e [mm]: 18
Height f [mm]: 61.5
Level: 5
Weight [g]: 80

Variants:

T65AL/40 soccer
Art. no. 56695
Width a [mm]: 43
Level: 5
T65AL/30 soccer
Art. no. 56702
Width a [mm]: 33
Level: 4
T65AL/30 tennis
Art. no. 56703
Width a [mm]: 33
Level: 4

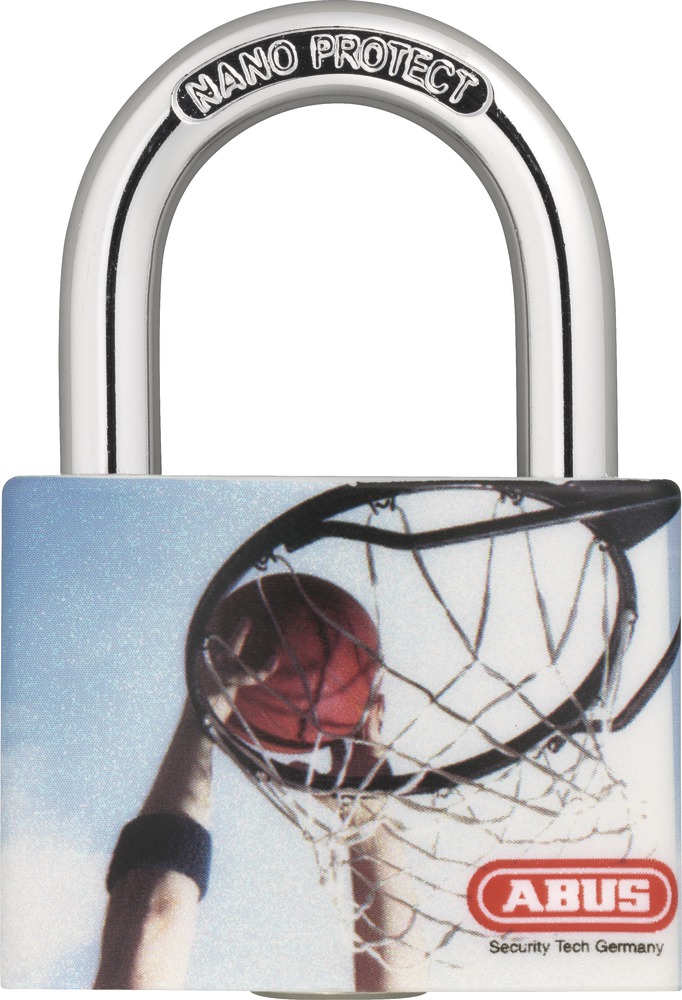

T65AL/40 basketball
Art. no. 56698
Width a [mm]: 43
Level: 5

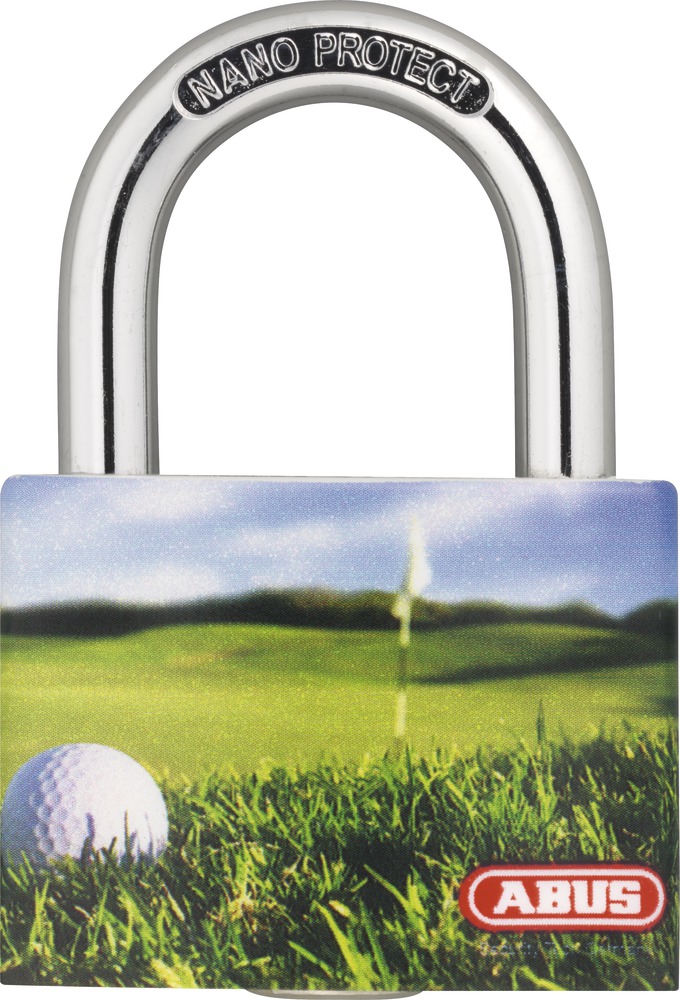

T65AL/40 golf
Art. no. 56699
Width a [mm]: 43
Level: 5

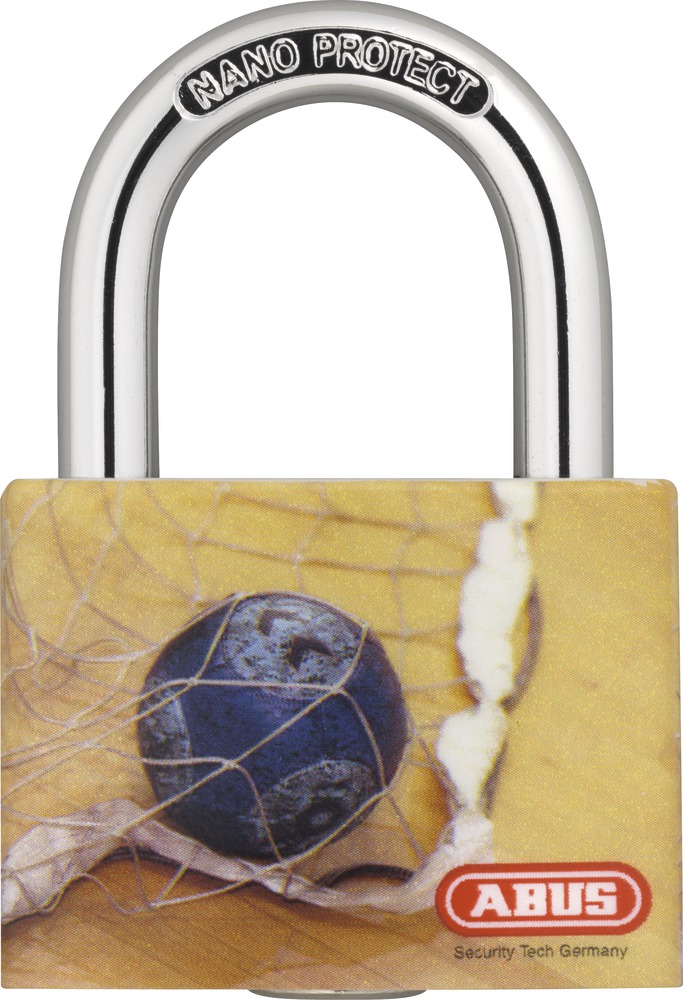

T65AL/40 handball
Art. no. 56700
Width a [mm]: 43
Level: 5

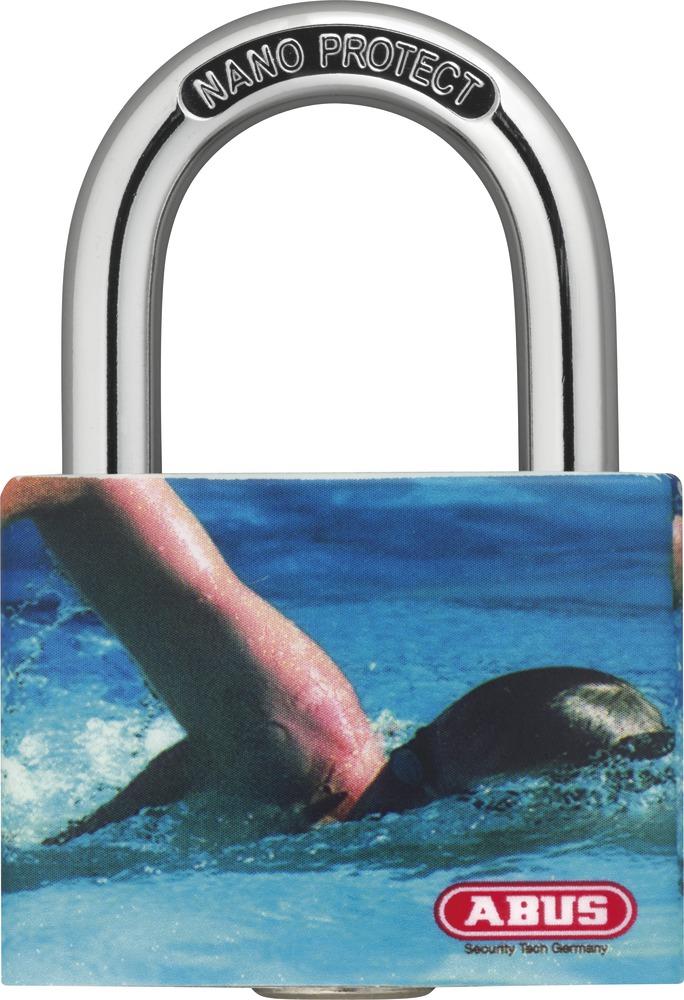

T65AL/40 swimming
Art. no. 56697
Width a [mm]: 43
Level: 5

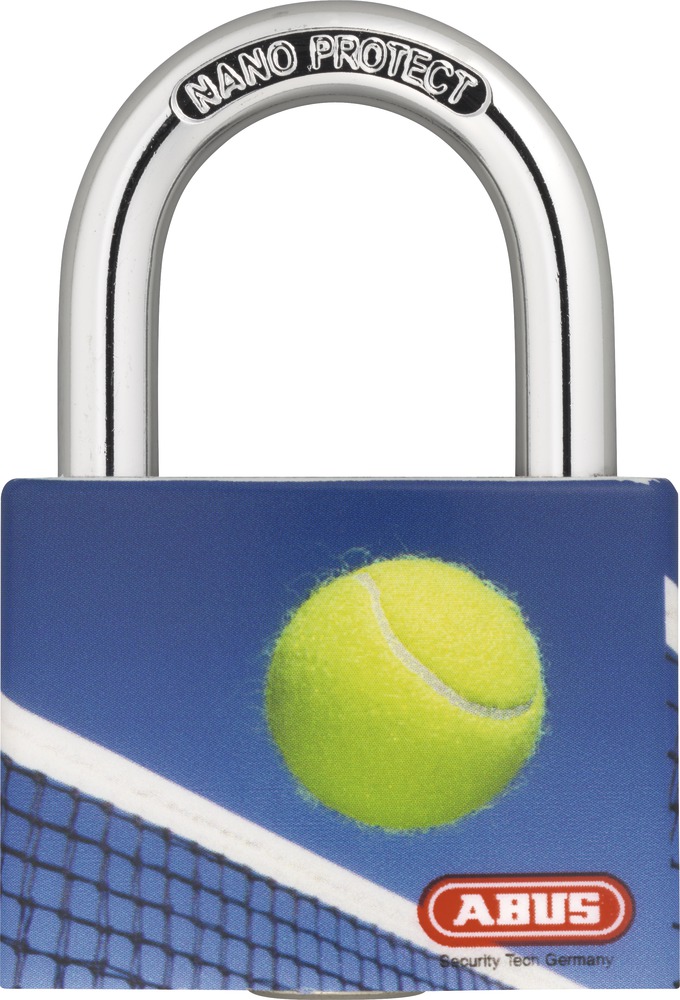

T65AL/40 tennis
Art. no. 56701
Width a [mm]: 43
Level: 5

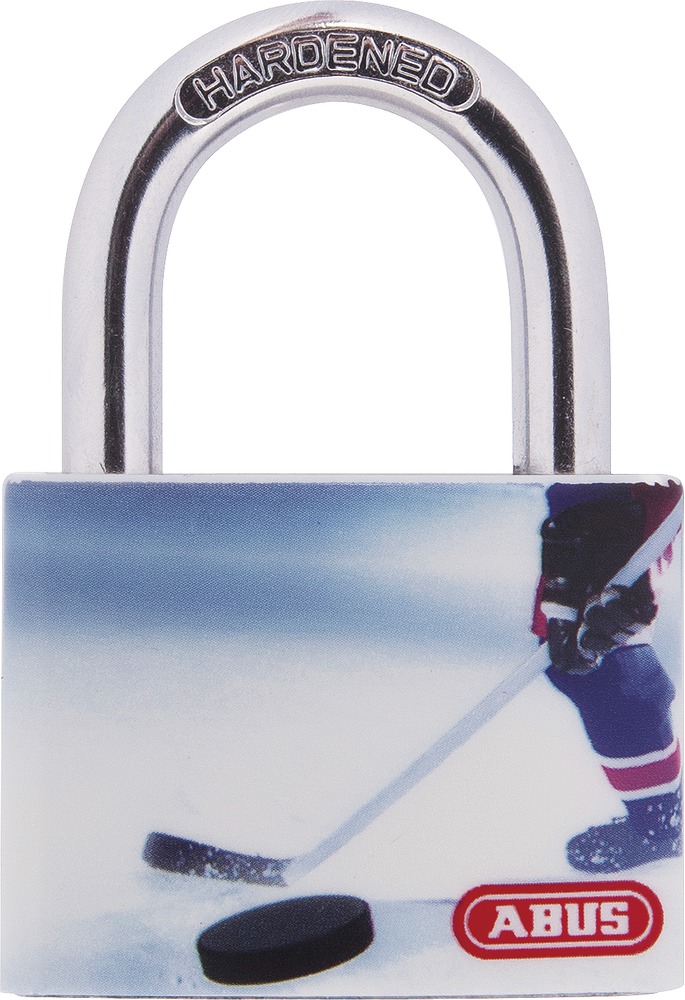

T65AL/40 ice hockey
Art. no. 58630
Width a [mm]: 43
Level: 5
