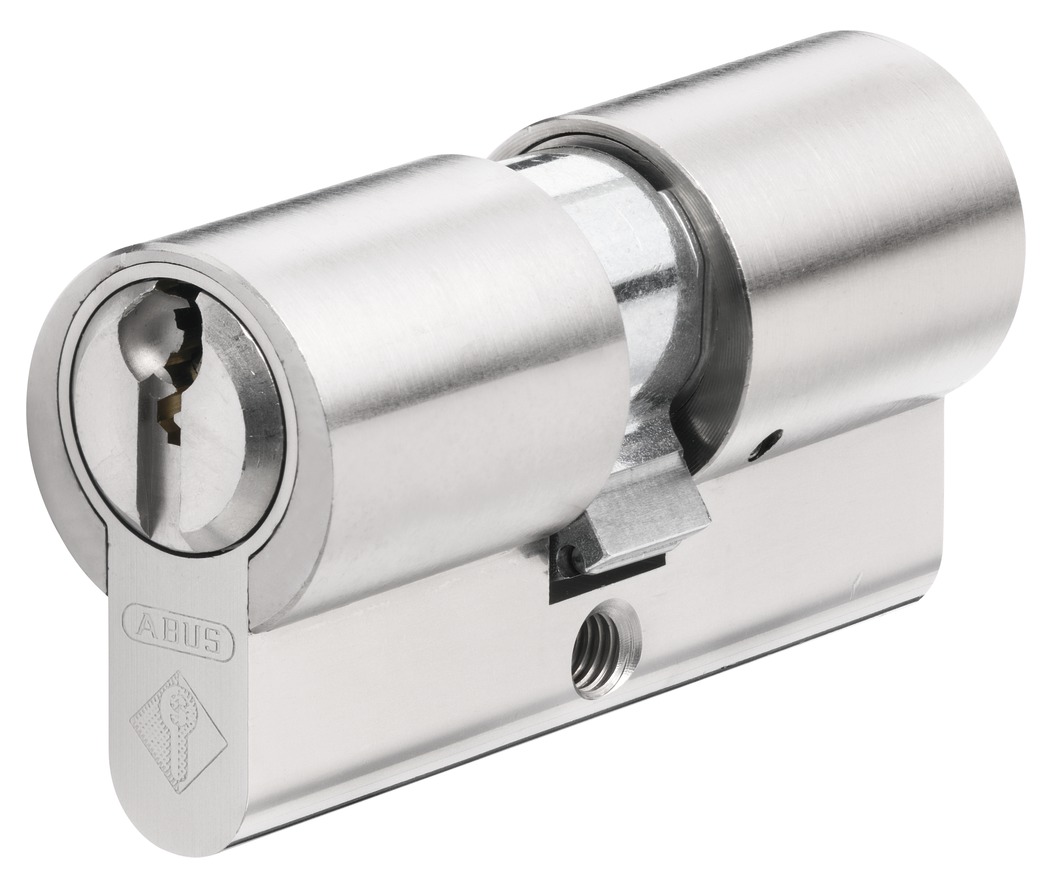

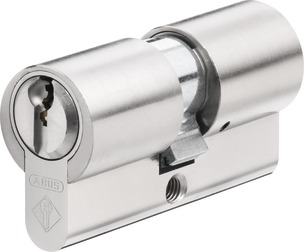

Circular double cylinder Ø 22mm Circular double cylinder Ø 22mm
Increased or strong drill protection available as option Corresponds to fire resistance class 1 for fire protection doors Development and production in Germany Salt-water resistance according to DIN50021SS available as option Key retrofittabel with rfid cap
DIN EN 1303 - European norm for locking cylinders DIN 18252 - German norm for locking cylinders
|||||

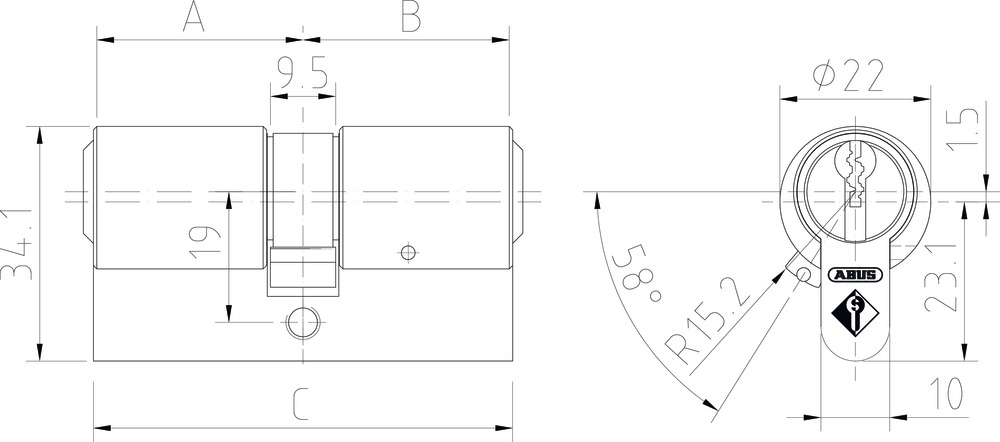

Circular double cylinder Ø 22 mm 319/419

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection

Operation and use:

  • for interior and exterior use
  • especially in Switzerland, Europe
  • together with respective rim locks

Variants:

  • available in the systems Standard, X14, K14, Z14, XZ14, V14, XV14, KV14, Y14, XY14, Y14 Deltus, XY14 Deltus, KY14 Deltus, W14, XW14, KW14, Wavy Line, Wavy Line pro and Integral
  • housing only available in 6 pin length
  • 5 pin tumblers: standard length (C) 61 mm
  • 6 pin tumblers: standard length (C) 61 mm
  • salt-water resistance (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Swiss profile cylinder

Swiss profile cylinder

These profile cylinders of our special range are especially used in Switzerland. Together with the respective rim locks it is possible to realize key systems with double, knob and half cylinders for interior and exterior use. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Subsequent you will find more detailed information on the Swiss profile double, -half and -knob cylinders with a ...
