Pressure cylinder Pressure cylinder
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

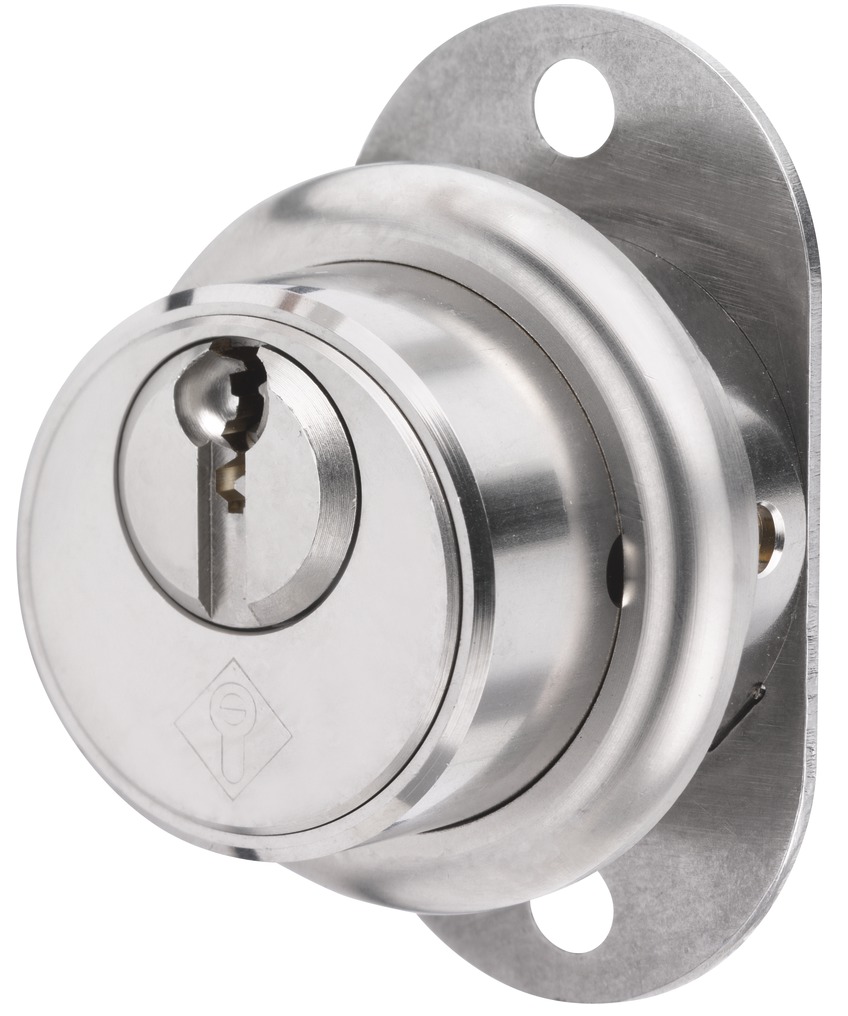

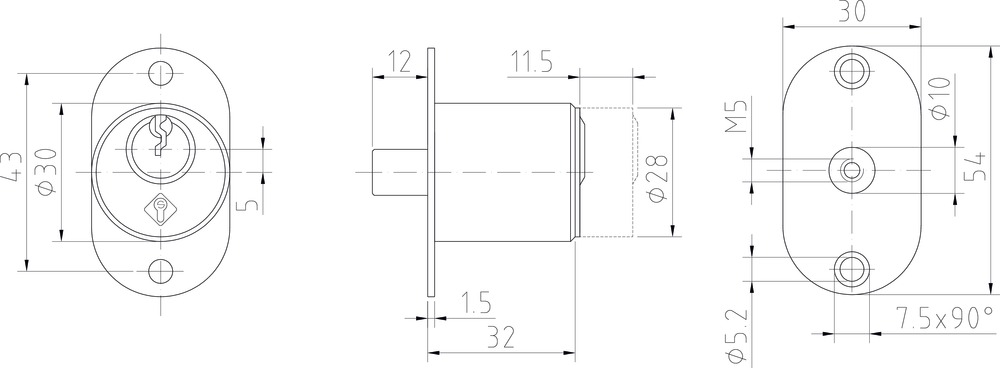

Pressure cylinder 356-D30/456-D30

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection fitting diameter 30 mm
  • locked by pressure on the cylinder, opened with key only

Operation and use:

  • indoors
  • e.g. sliding cupboard doors or medicine cabinets

Variants:

  • available in the systems Standard, X14, Z14, XZ14, V14, XV14, Y14, XY14, Y14 Deltus, XY14 Deltus, W14, XW14 and Integral (further systems on demand)
  • standard: key can be removed immediately after opening
  • obliged locking version: key cannot be removed until cylinder is locked
  • salt-water resistant (finish CR, special pinning)
  • finishes: CR (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Pressure cylinders

Pressure cylinders

In our special range we offer pressure cylinders which can be especially applied in interior, e.g. for sliding doors of medicine cabinets. Available as standard or with obliged locking function. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. ...
