Oval double cylinder, bolt lock version Oval double cylinder, bolt lock version
Increased or strong drill protection available as option Corresponds to fire resistance class 1 for fire protection doors Development and production in Germany Salt-water resistance according to DIN50021SS available as option Key retrofittabel with rfid cap
DIN EN 1303 - European norm for locking cylinders DIN 18252 - German norm for locking cylinders
|||||

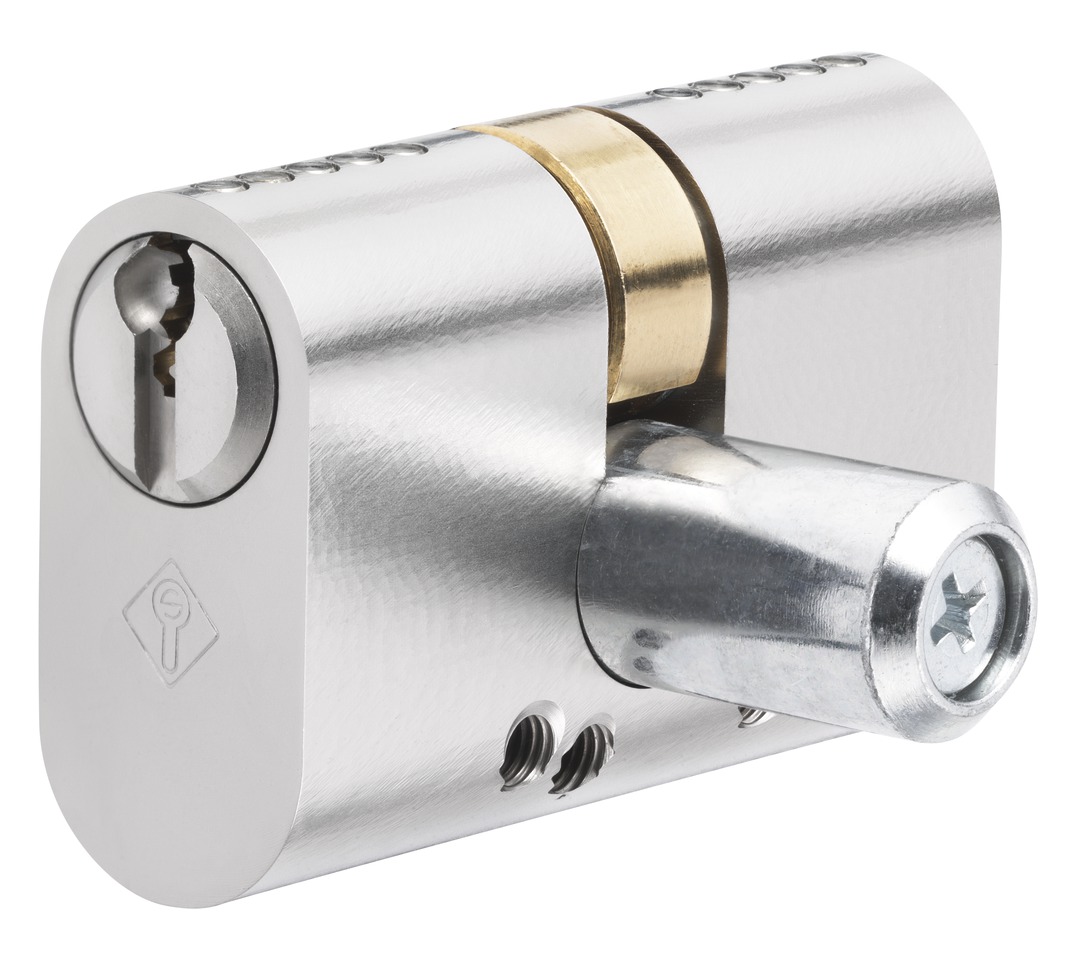

Oval double cylinder, bolt lock version 317-RS/417-RS

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection

Operation and use:

  • for interior and exterior use
  • as an independent combination of bolt lock and key cylinder, e.g. special window / door locking

Variants:

  • available in the systems Standard, X14, Z14, XZ14, Y14 Deltus, XY14 Deltus, W14, XW14, V14, XV14, Y14, XY14, Wavy Line and Integral (further systems on request)

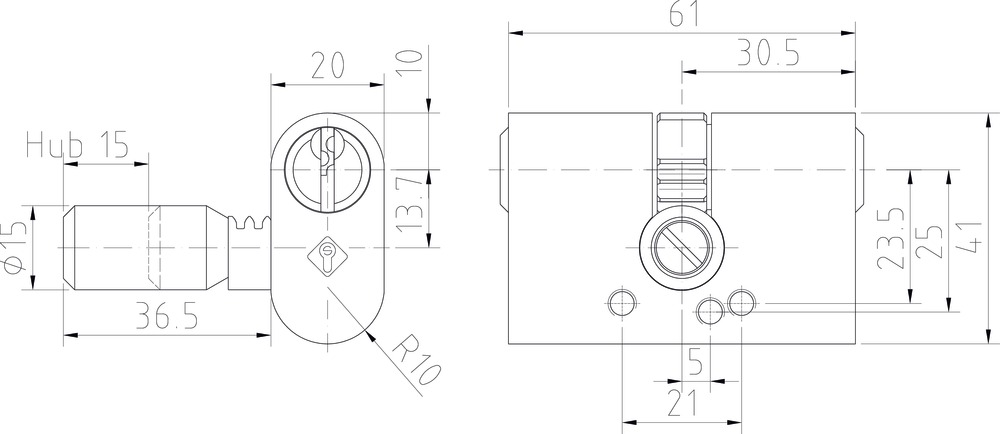

  • 5 pin tumblers: standard length (C) 61 mm
  • 6 pin tumblers: standard length (C) 61 mm
  • available up to a length of 81 mm (further lengths on request)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Oval cylinder

Oval cylinder

Oval cylinders of our special range are especially used in the Netherlands, Belgium and Great Britain. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Here you find more detailed information on oval cylinders for special mortise locks, as well as on oval cylinders as double-, knob- and half cylinder. ...
