Locking insert, System "ME" Locking insert, System "ME"
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

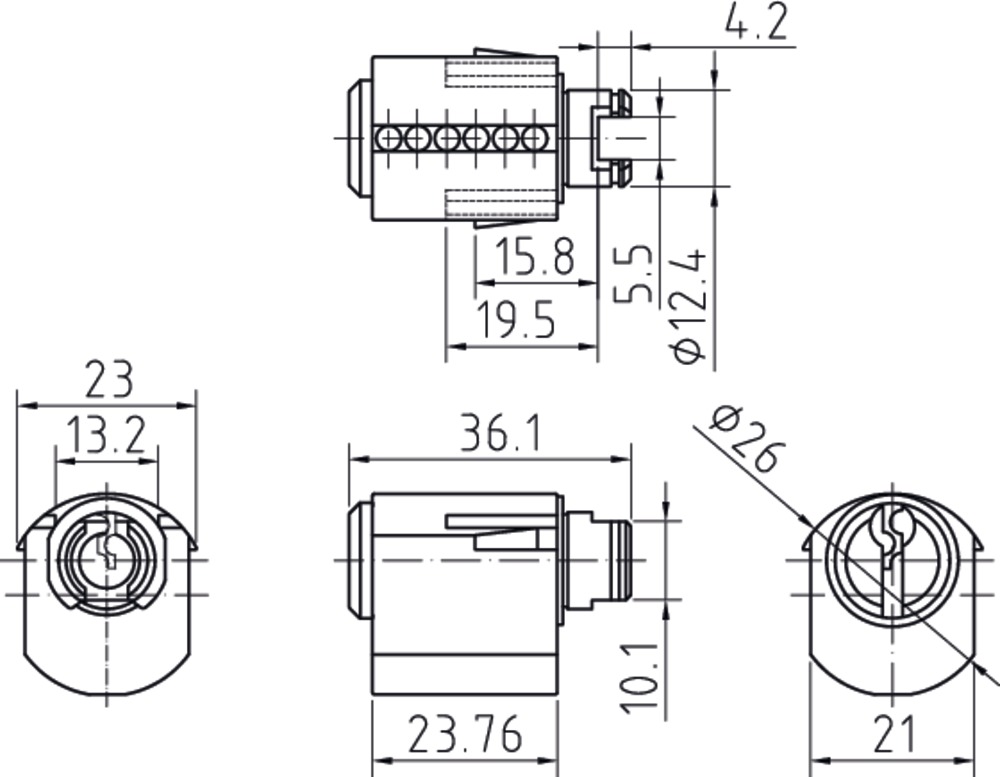

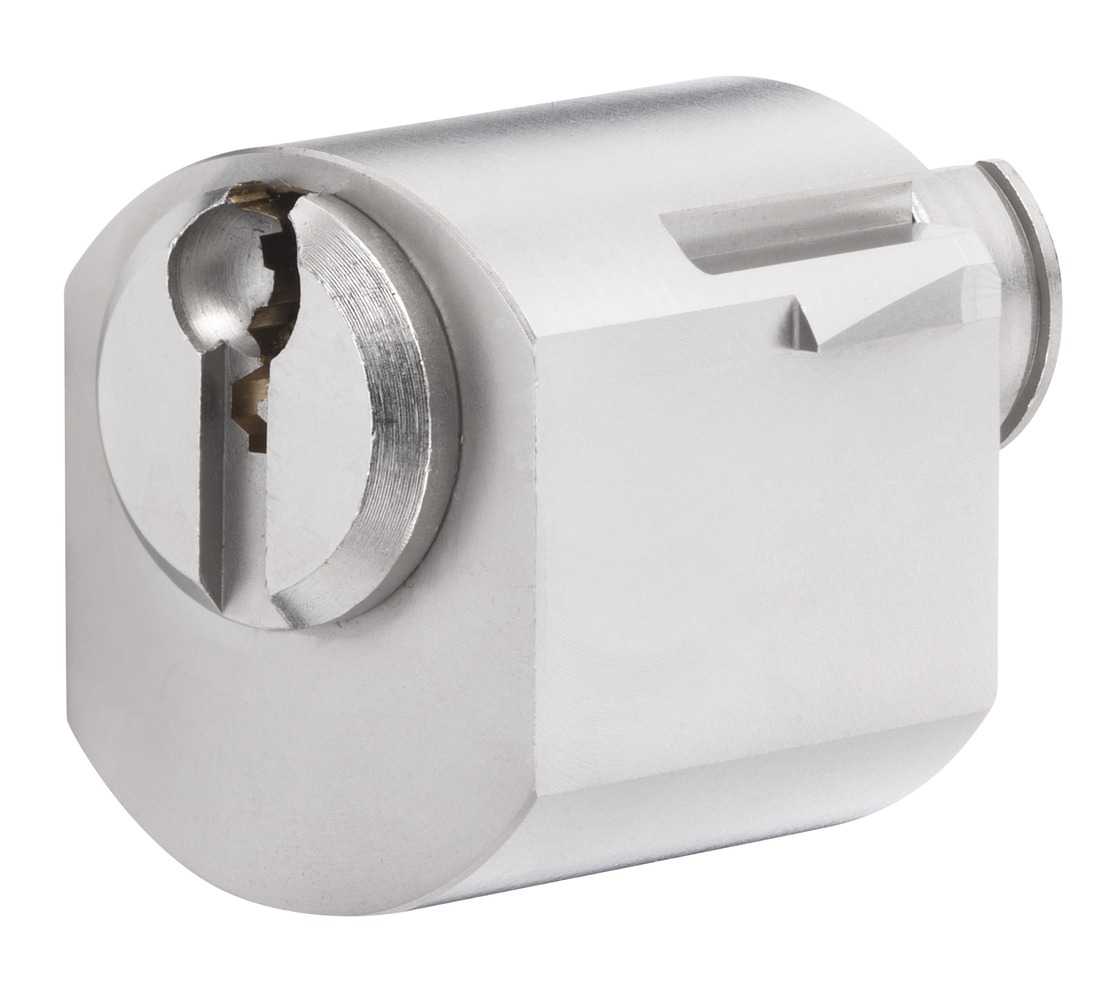

Locking insert, System "Me" 356-ME/456-ME

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection
  • locking function 360°

Operation and use:

  • for interior and exterior use
  • especially in Italy, Europe
  • together with push bottom cylinders, corresponds to model P875 (Italy)

Variants:

  • in the systems Standard, X14, Z14, XZ14, V14, XV14, Y14, XY14, Y14 Deltus, XY14 Deltus, W14, XW14 and Integral
  • 5 pin tumblers: standard length 36 mm
  • 6 pin tumblers: standard length 36 mm
  • salt-water resistance (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Locking inserts

Locking insert

These different locking insert are especially used in the USA, Northern America and Asia. They can be used in interior and outdoor areas together with respective knob cylinders. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Subsequent you will find more detailed information on the locking insert systems “Me“ and “S2“ to “S5“ for the application in special knob cylinders ...
