Profile knob cylinder Profile knob cylinder
Increased or strong drill protection available as option Pre-snap function available as option in selected systems Corresponds to fire resistance class 1 for fire protection doors Development and production in Germany Salt-water resistance according to DIN50021SS available as option Key retrofittabel with rfid cap According to DIN, cylinders are alowed to overlap the exterior fitting for max. 3 mm
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders BSI Kitemark - available as option for systems Z14 and Y14 in 6-pin version
|||||

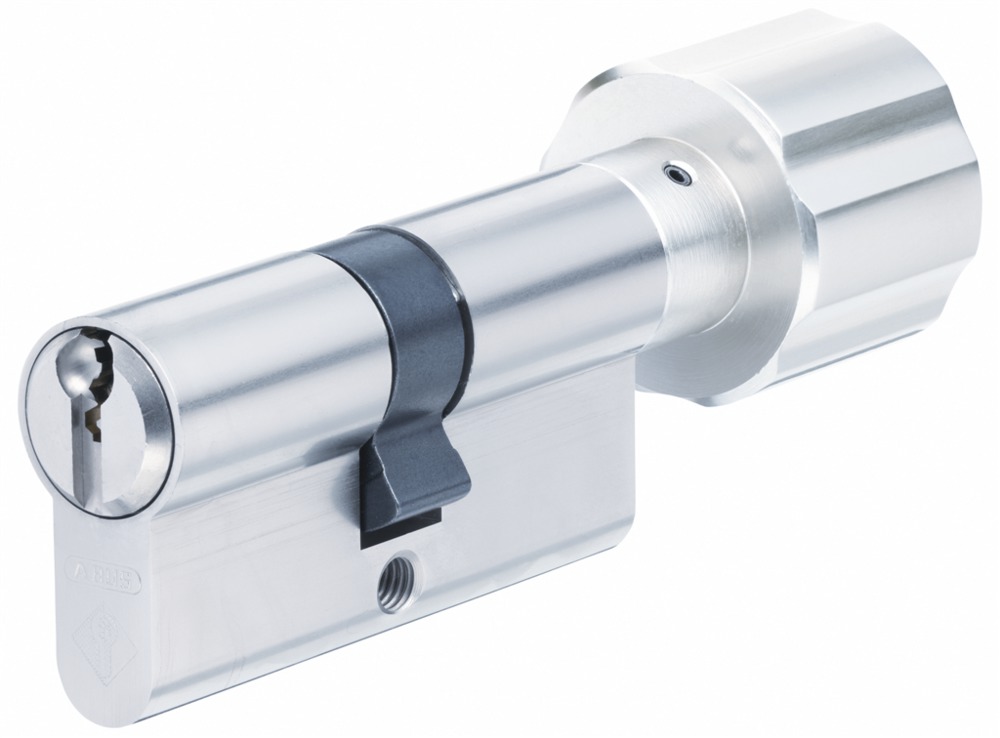

Profile knob cylinder 330/430

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection

Operation and use:

  • for interior and exterior use
  • to be used together with respective DIN door locks

Variants:

  • available in the systems Standard, X14, K14, Z14, XZ14, V14, XV14, KV14, Y14, XY14, Y14 Deltus, XY14 Deltus, KY14 Deltus, W14, XW14, KW14, Wavy Line, Wavy Line pro and Integral

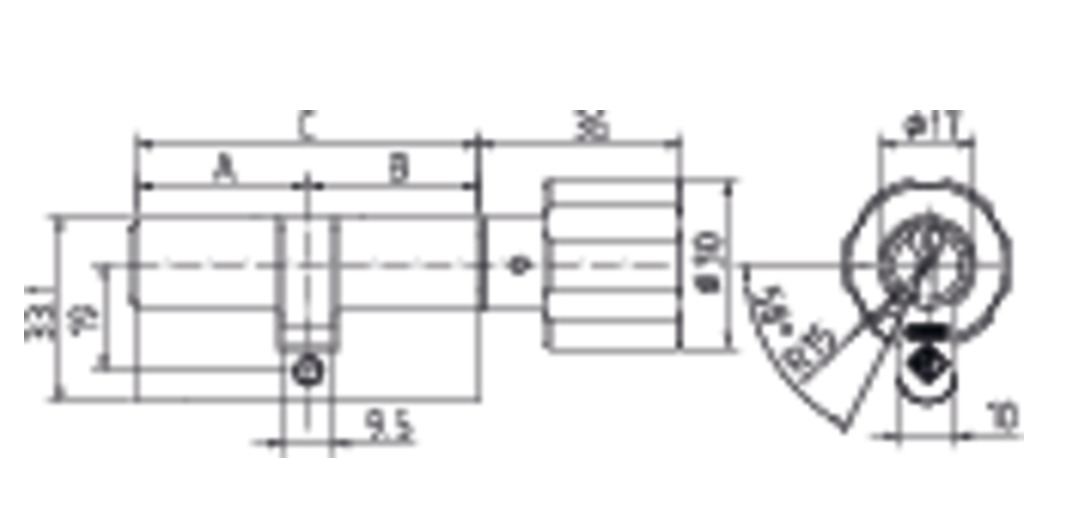

  • 5 pin tumblers: standard length (C) 53 mm
  • 6 pin tumblers: standard length (C) 61 mm
  • standard knob: Form Z, aluminum, nickel pearl finish (see Locking systems - Complete Assortment - Accessories - “knob shapes and finishes”)
  • knob shapes "K", "S" and "O" are flushed to the cylinder housing
  • also available with obliged decoupling of knob or release catch (see Infobar - Special features for cylinders)
  • salt-water resistance (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Profile knob cylinder

Profile knob cylinder with Euro profile

Profile cylinders with knob are delivered in series with knob shape Z, nickel pearl finish. Further knob shapes and finishes are available on demand. Due to our 14 mm core diameter it is possible to realize complex locking systems for inner and outdoor areas. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Here you can find more information on our knob cylinders, optionally with anti ...
