Cam cylinder, M24x1 Cam cylinder, M24x1
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

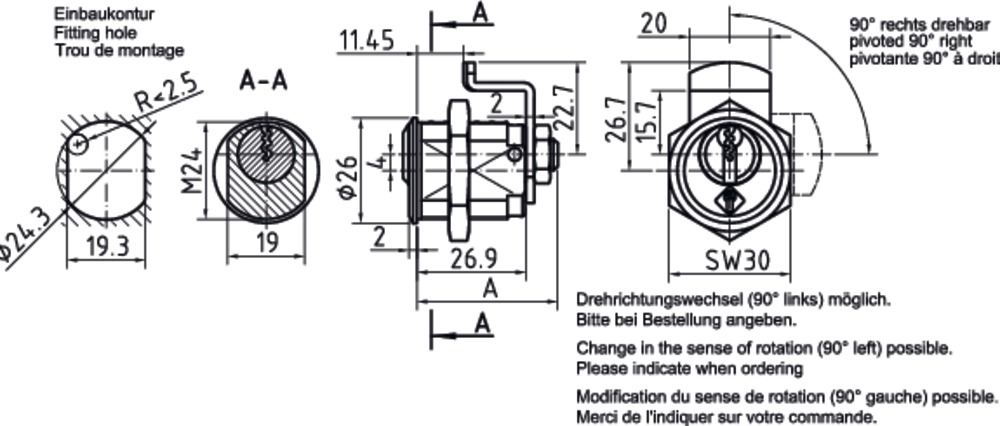

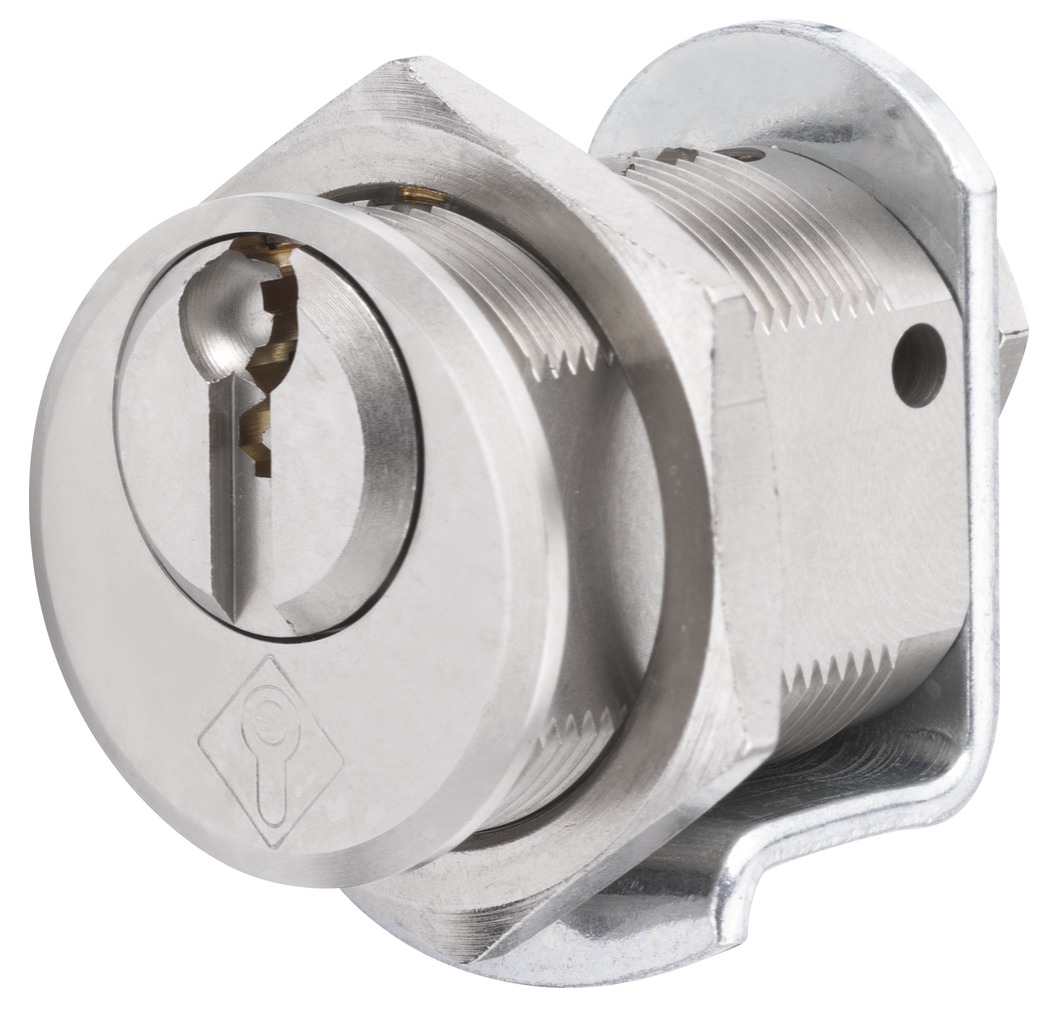

Cam cylinder Ø 24 mm 356-H24/456-H24

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection
  • fitting diameter 24 mm
  • cam is adjustable in 45° steps
  • key only removable in
  • locking position
  • locking movement always 90°, in direction left or right, our standard is 90° in right direction

Operation and use:

  • for interior and exterior use
  • letterboxes, wardrobes, strongboxes, lamp posts, inspection hatches, vending machines

Variants:

  • available in the systems Standard, X14, Z14, XZ14, V14, XV14, Y14, XY14, Y14 Deltus, XY14 Deltus, W14, XW14, Wavy Line, Wavy Line pro and Integral (other systems on request)
  • 5 pin tumblers: standard length A = 31 mm
  • 6 pin tumblers: standard length A = 34,8 mm
  • further cams see "Cam shapes"
  • matching rosettes see "Rosettes"
  • salt-water resistant (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Downloads:

Cam cylinders

Cam cylinders

Cam cylinders are designed for application in mailboxes, wardrobes, strongboxes, lamp posts or vending machines. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Please also find more detailed information on ABUS cam cylinders in diameter 18 mm and 24 mm. ...
