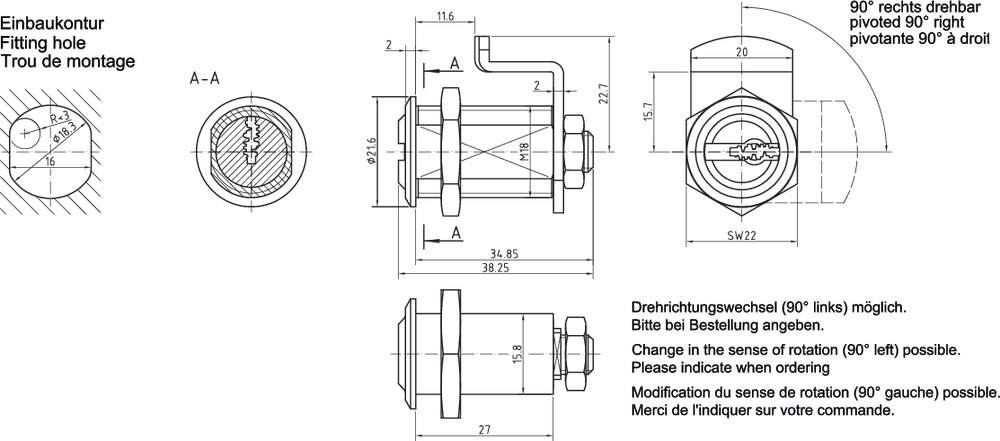

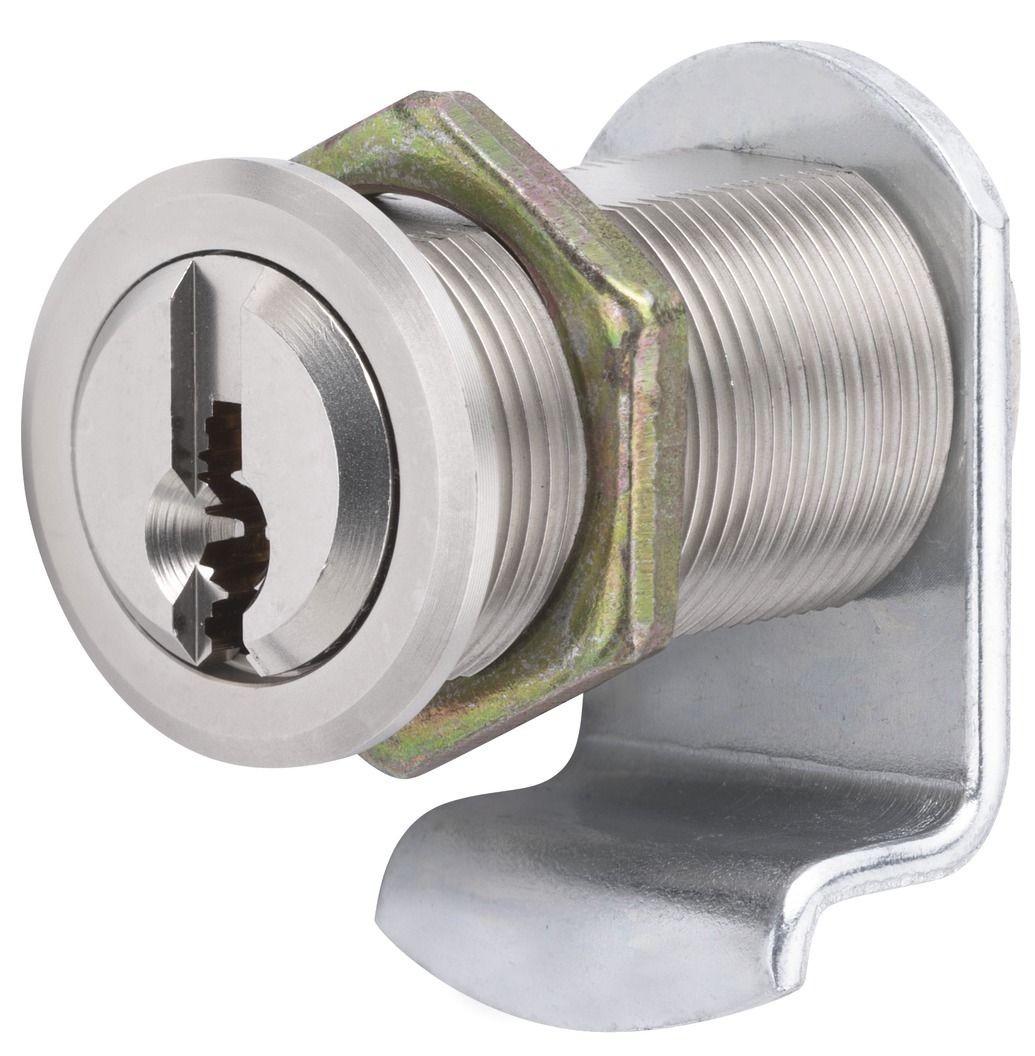

Cam cylinder Ø 18 mm 356-H18/456-H18

Technology:

  • cylinders: nickel-plated brass (finish Ni)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • System XY14 standard drill protection
  • System Integral drill protection by a massive hard metal plate
  • fitting diameter 18 mm
  • cam is adjustable in 45° steps
  • key only removable in
  • locking position locking movement always 90°, in direction left or right

Operation and use:

  • for interior and exterior use
  • letterboxes, wardrobes, strongboxes, lamp posts, inspection hatches, vending machines

Variants:

  • only available in system Integral and XY14, restrictions in the use for locking systems
  • further cams see "Cam shapes"
  • salt-water resistant (finish CR)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")

Cam cylinders

Cam cylinders are designed for application in mailboxes, wardrobes, strongboxes, lamp posts or vending machines. We manufacture according to DIN EN 1303, DIN 18252 and are ISO 9001:2008 certified. Please also find more detailed information on ABUS cam cylinders in diameter 18 mm and 24 mm. ...
