Screw-in cylinder Ø 29,6 mm, with extra wide collar Screw-in cylinder Ø 29,6 mm, with extra wide collar
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

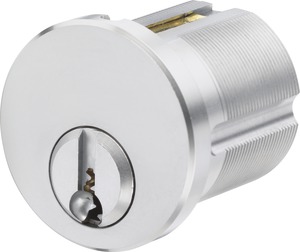

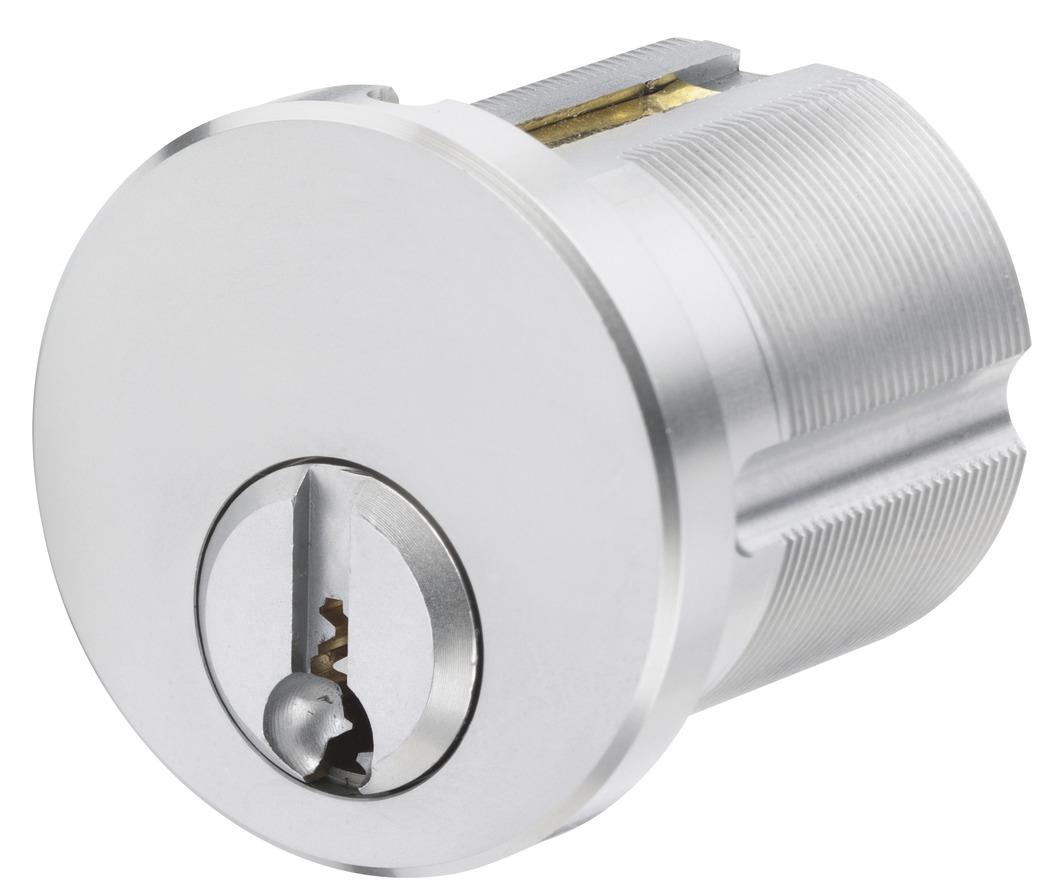

Screw-in cylinder with extra wide collar Ø 29,2 mm 356-SR3/456-SR3

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection

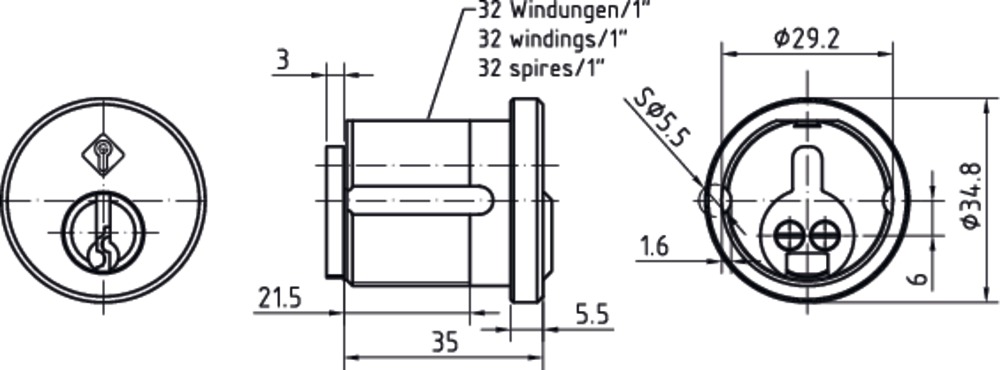

  • fitting diameter 29,2 mm
  • locking movement 360°
  • standard cam: 50SZU SZ01

Operation and use:

  • for interior and exterior use
  • together with respective door locks with thread Ø 29,2 x 32G/1

Variants:

  • available in the systems Standard, X14, Z14, XZ14, V14, XV14, Y14, XY14, Y14 Deltus, XY14 Deltus, W14, XW14 and Integral
  • 5 pin tumblers: standard length 35 mm
  • 6 pin tumblers: standard length 35 mm
  • further cam shapes (see Locking systems - Complete Assortment - Accessories - "Cams for screw-in cylinder")
  • salt-water resistance (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")
