Half cylinder for lift switch Half cylinder for lift switch
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

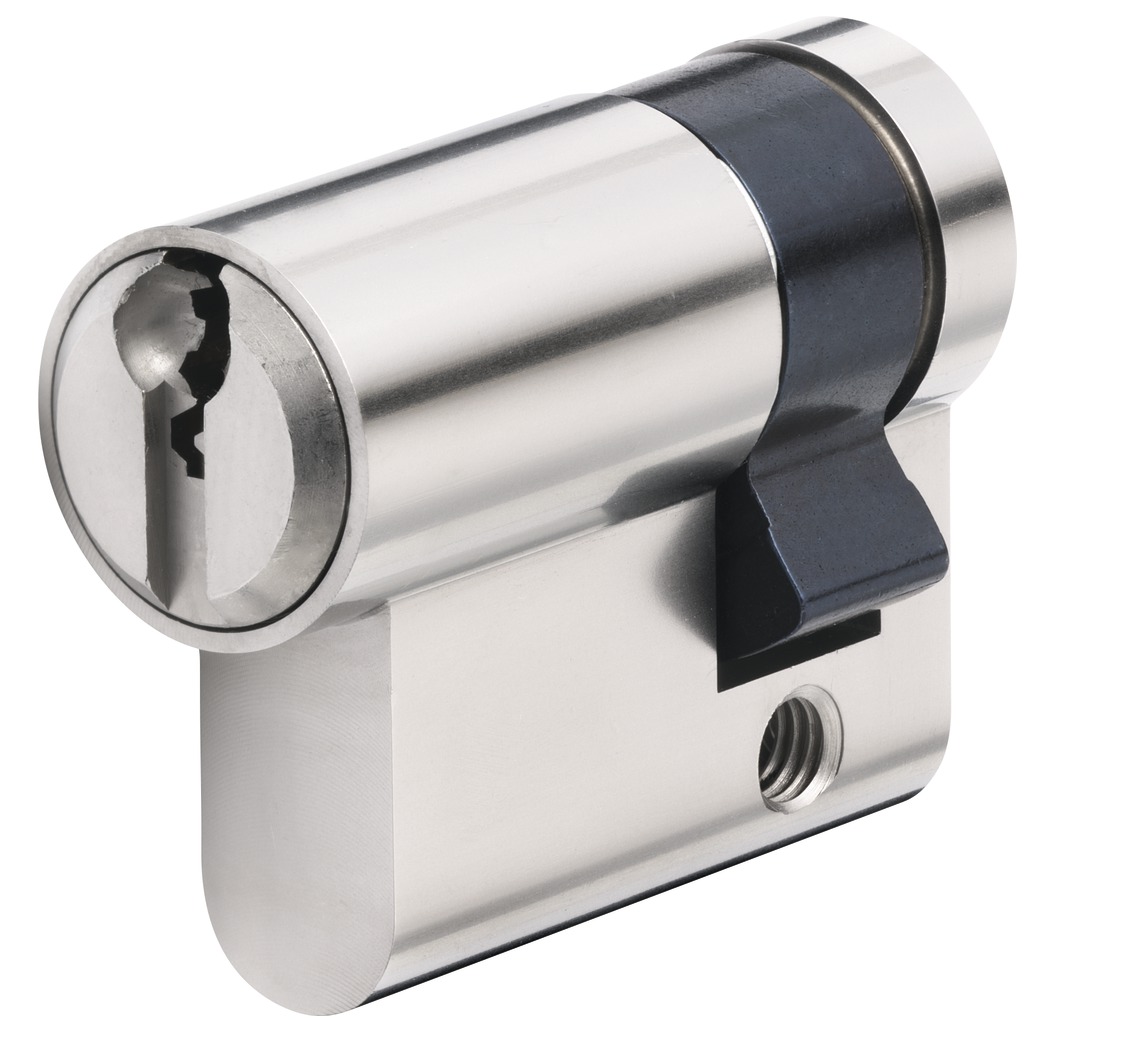

Half cylinder for lift switch 352-AZ/452-AZ

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection
  • two drill holes on the back for fixing the cylinder

Operation and use:

  • for interior and exterior use
  • as lift switch
  • after fitting, parts of cylinder are concealed
  • can only be used conditionally in key systems

Variants:

  • available in the systems Standard, X14, Z14, XZ14, V14, XV14, Y14, XY14, Y14 Deltus, XY14 Deltus, W14, XW14, Wavy Line and Integral (further systems on request)

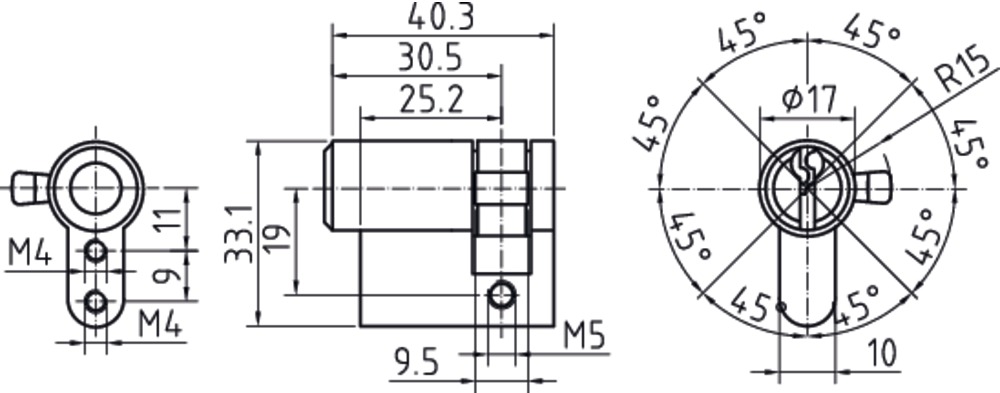

  • 5 pin tumblers: standard length 40,3 mm
  • 6 pin tumblers: standard length 40,3 mm supplied with cam in 7 o'clock position and the user can put it in any position in 45° steps (8-position adjustability)
  • salt-water resistance (finish CR, special pinning)
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")
