Half cylinder for "Haushahn" lifts Half cylinders for "Haushahn" lifts
DIN 18252 - German norm for locking cylinders DIN EN 1303 - European norm for locking cylinders
|||||

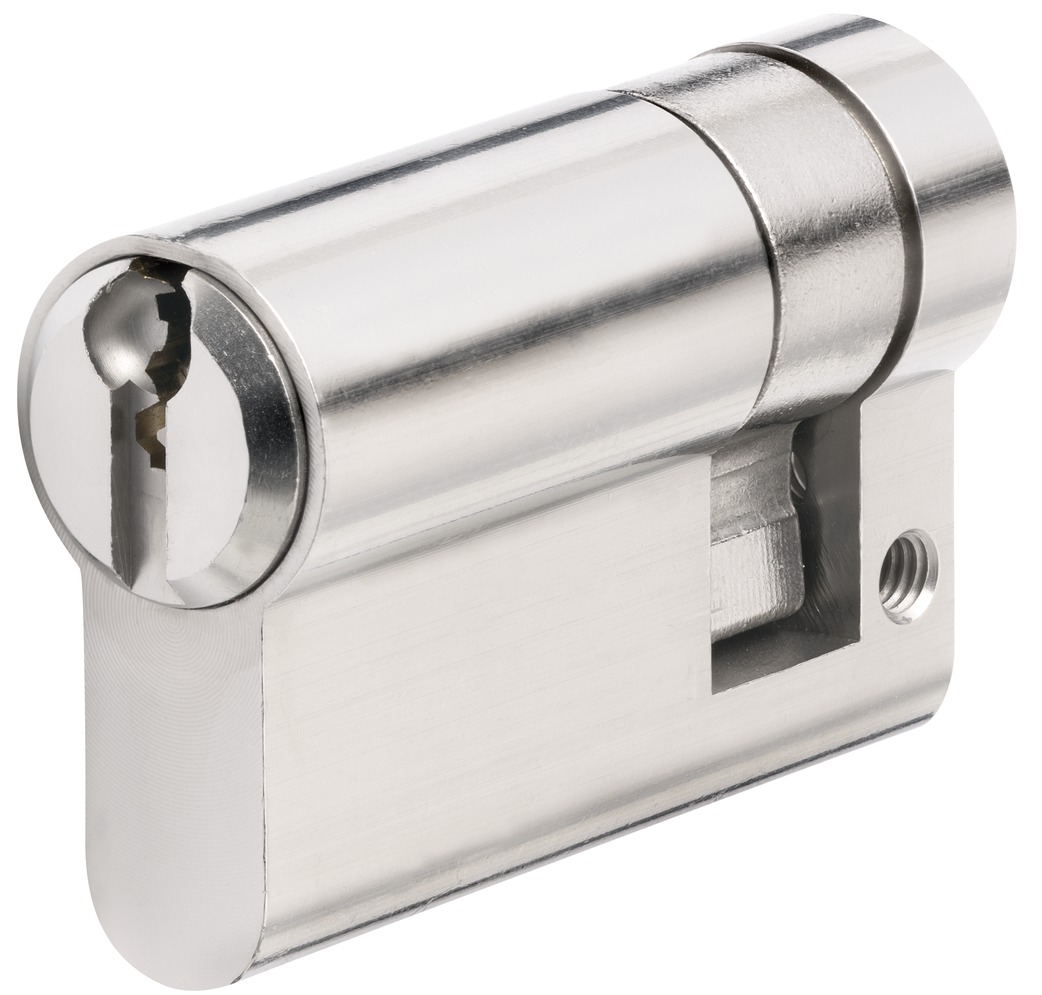

Half cylinder for “Haushahn” lifts 350-AZ/450-AZ

Technology:

  • cylinders: nickel-plated brass (finish NI)
  • keys: nickel silver (except stock profile - nickel-plated brass)
  • standard drill protection
  • Cam in 0° position
  • two drill holes on the back for fixing the cylinder

Operation and use:

  • for interior and exterior use
  • especially designed for lifts of the brand "Haushahn"

Variants:

  • available in the systems Standard, X14, Z14, XZ14, V14, XV14, Y14, XY14, Y14 Deltus, XY14 Deltus, W14, XW14, Wavy Line and Integral (further systems on request)

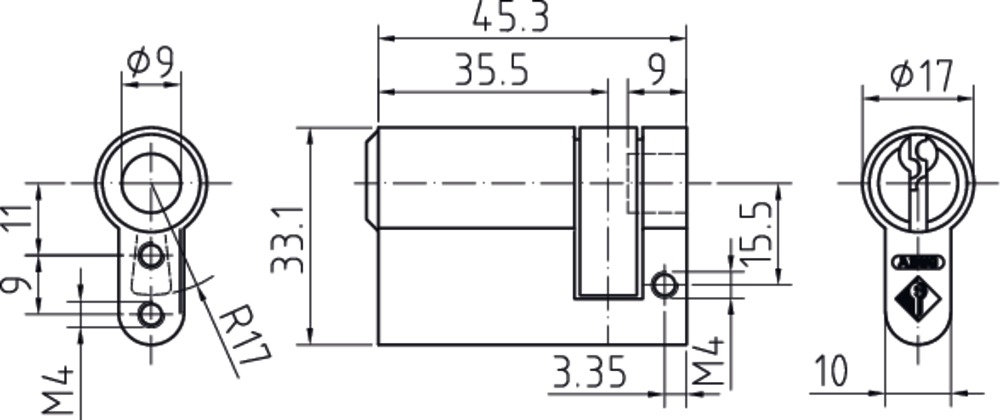

  • 5 pin tumblers: standard length = 45,3 mm
  • 6 pin tumblers: standard length = 45,3 mm
  • finishes: CR, MS, AUPO, BROA, AUMA (see Infobar - Special features for cylinders - "Cylinder finishes")
