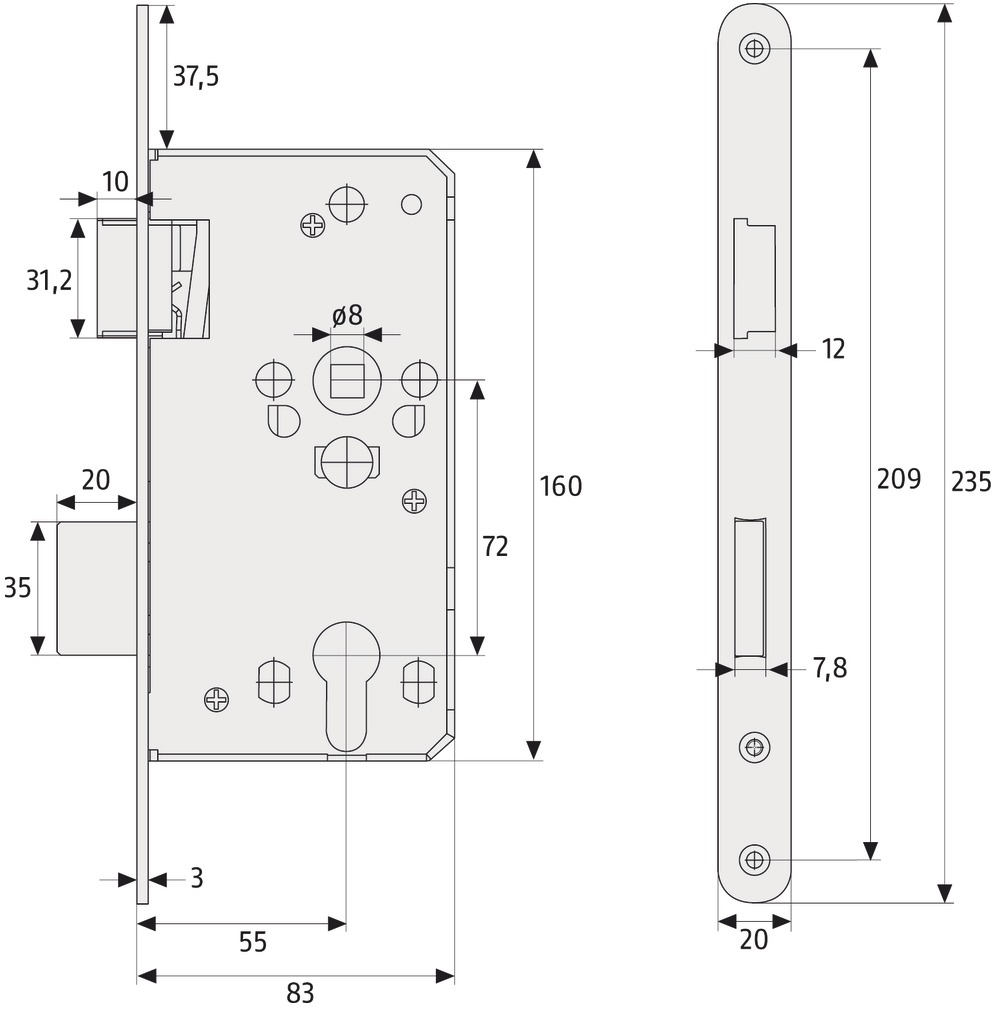

Mortice lock TKZ30 Mortice lock TKZ30 Mortice lock TKZ30 Technical drawing
Level 8 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Mortice lock for door cylinders Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Distance between center of door cylinder and center of thumb turn or handle
|||

Mortice Lock TKZ30 R S

Robust mortice lock for internal doors/apartment doors

Technology:

  • Mortice lock conforming to DIN 18251 class 3
  • Suitable für EURO-cylinders
  • Metal latch and bolt
  • Extra corrosion protection by electrolytic galvanizing
  • Integrated chip protection
  • Integrated distance bolts to stabilize the lock body

Operation and use:

  • For internal doors/apartment doors
  • When closing the door only the latch is being operated
  • By locking the door cylinder the bolt is activated

Variants:

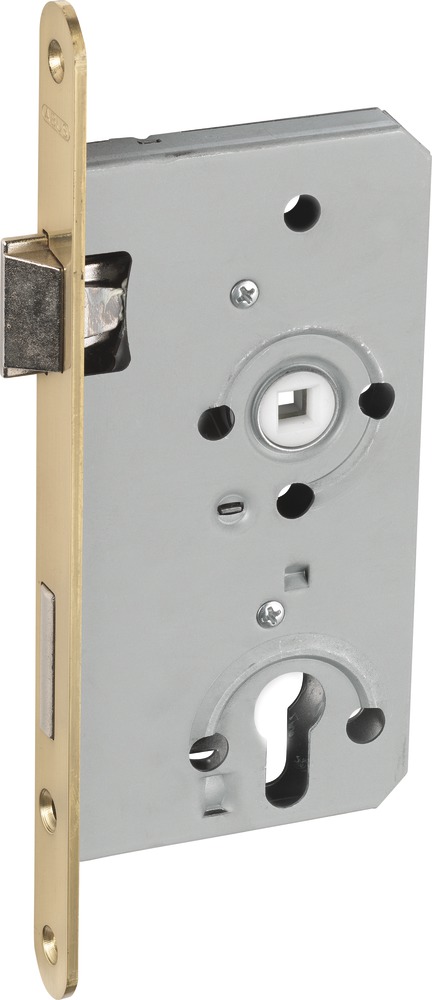

  • Finishes: polished brass, stainless steel, white

Technical data:

Art. no.: 20808
Level: 8
Colour: silver

Variants:

Mortice Lock TKZ30 R S
Art. no. 20808
Level: 8
Weight [g]:
Mortice Lock TKZ 30 Mortise lock
Art. no. 20807
Level: 8
Weight [g]:
Mortice Lock TKZ30 L ER
Art. no. 20840
Level:
Weight [g]:
Mortice Lock TKZ30 L MS
Art. no. 20809
Level: 8
Weight [g]:
Mortice Lock TKZ30 R MS
Art. no. 20810
Level: 8
Weight [g]:

Downloads:

Mortice locks

Mortice locks

The mortice lock is activated by the door cylinder – it may be invisible but it has a crucial function. Just as it's impossible to start an engine without a starter motor, a door cannot be locked without a mortise lock.ABUS mortise locks that meet DIN 18251ABUS offers a wide range of mortise locks that meet DIN 18251 with solutions for a variety of needs, e.g. fire doors or doors with narrow profiles. The premium product is the TKZ 40 – a ...
