Mortice lock TKZ20 Mortice lock TKZ20 Mortice lock TKZ20 Mortice lock TKZ20 Mortice lock TKZ20

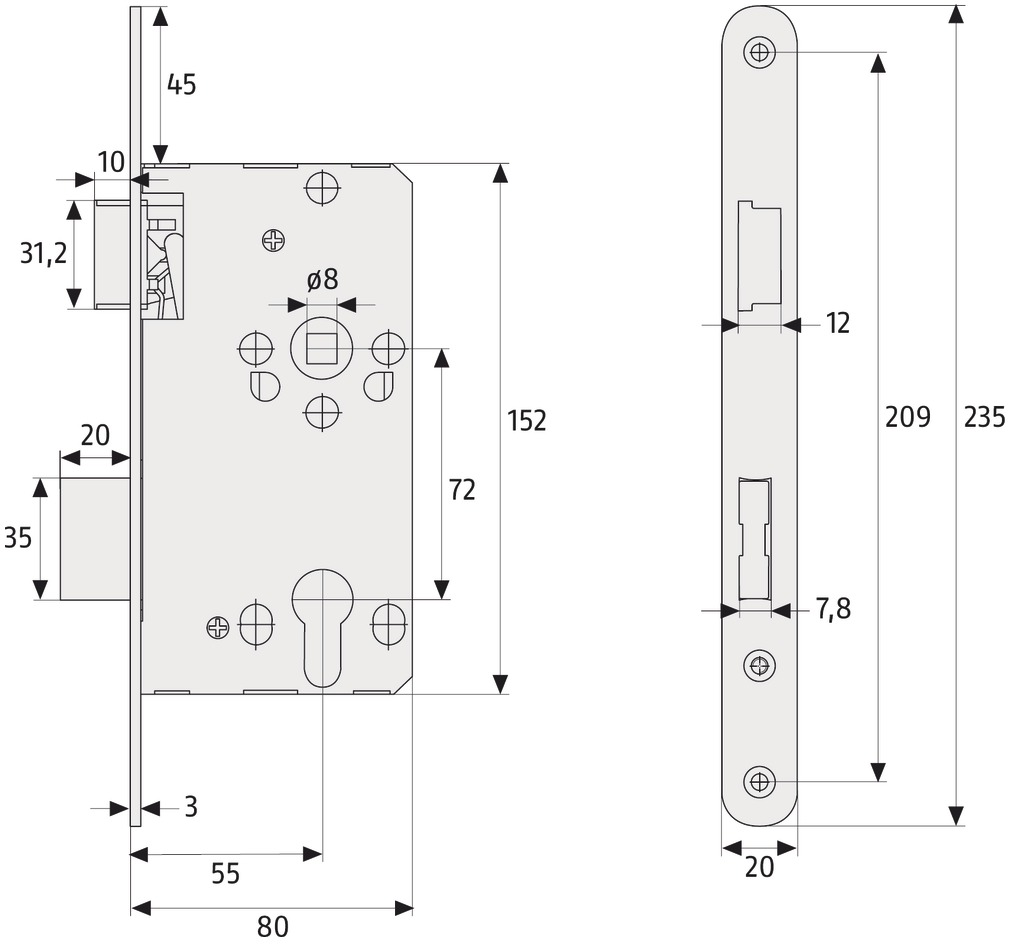

Technical drawing
Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Mortice lock for door cylinders Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Distance between center of door cylinder and center of thumb turn or handle
|||

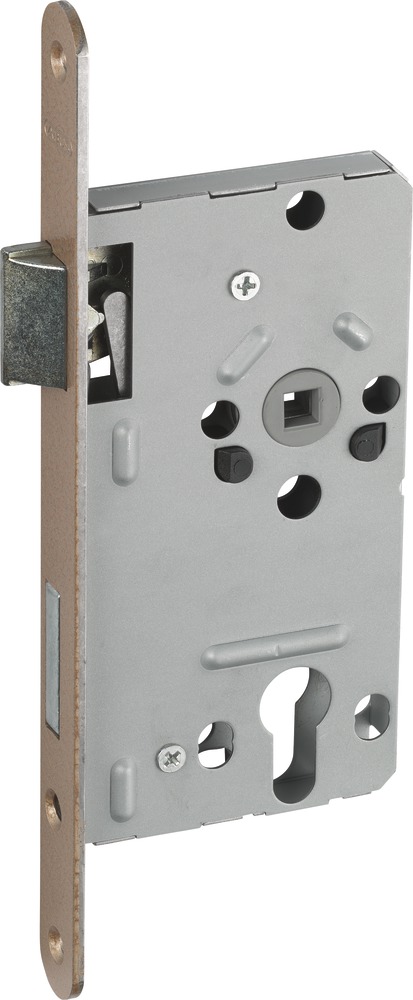

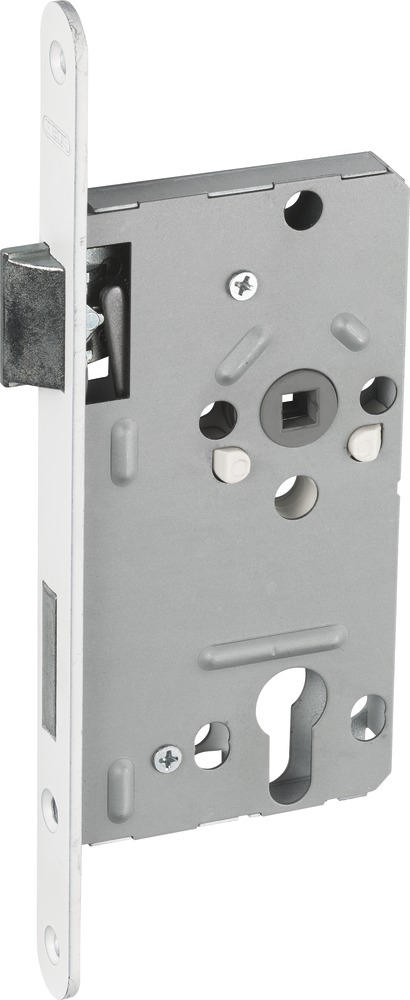

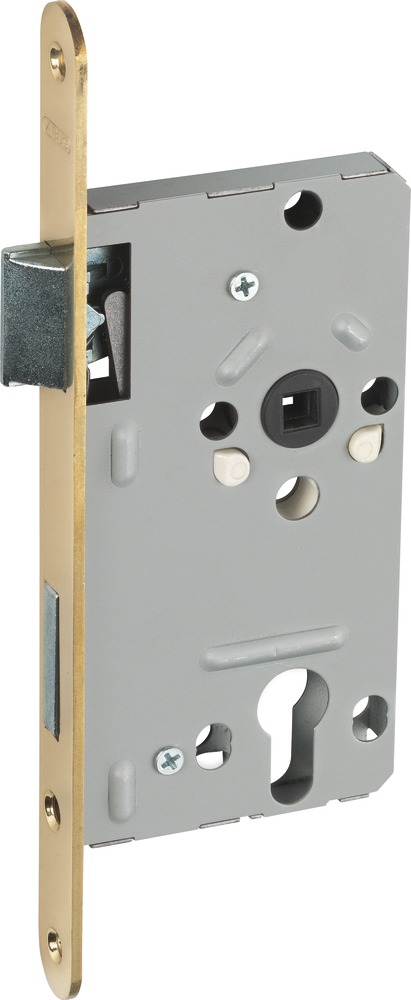

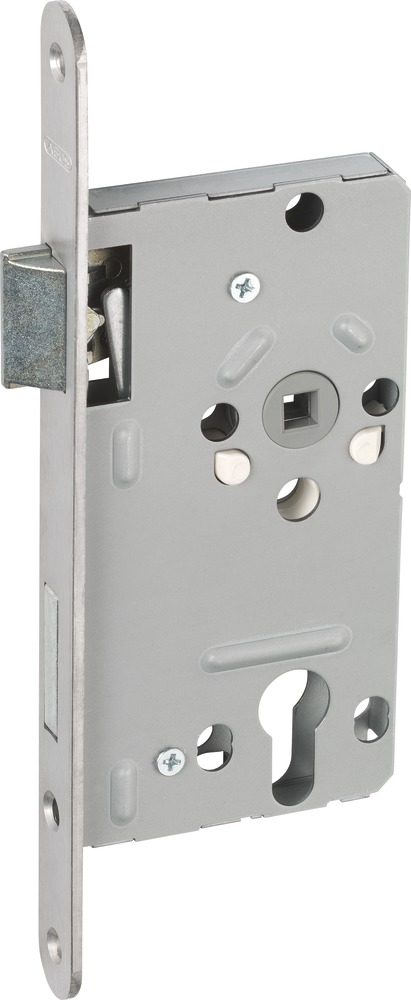

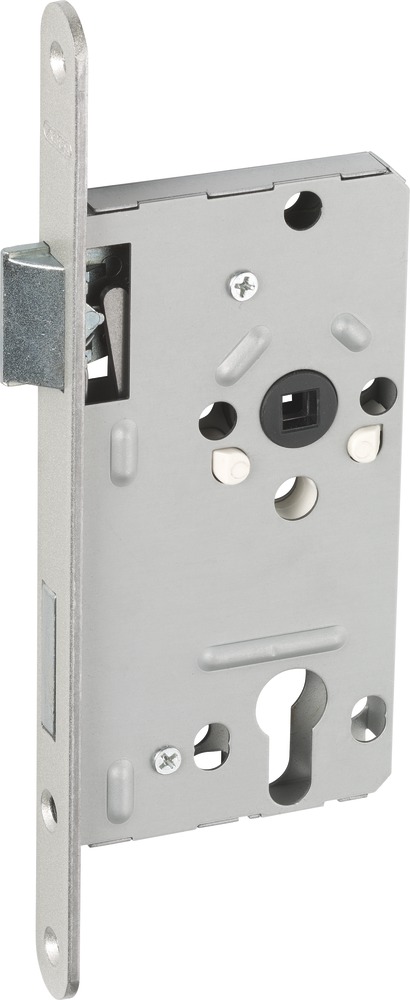

Mortice Lock TKZ20 R S

Mortice lock for internal doors/apartment doors

Technology:

  • Mortice lock conforming to DIN 18251 class 2
  • Suitable for EURO-cylinders
  • Metal latch and bolt
  • High capacity of resistance by use of high quality materials
  • Extra corrosion protection by electrolytic galvanizing
  • Integrated chip protection
  • Integrated distance bolts to stabilize the lock body

Operation and use:

  • For internal doors/apartment doors
  • When closing the door only the latch is being operated
  • By locking the door cylinder the bolt is activated

Variants:

  • Finishes: hammer blow gold, polished brass, silver lacquered, stainless steel, white

Technical data:

Art. no.: 21039
Level: 6
Colour: silver

Variants:

Mortice Lock TKZ20 R S
Art. no. 21039
Level: 6
Weight [g]:
Mortice Lock TKZ20 L HG
Art. no. 20812
Level: 6
Weight [g]:
Mortice Lock TKZ20 R HG
Art. no. 20811
Level: 6
Weight [g]:
Mortice Lock TKZ20 R MS
Art. no. 20813
Level: 6
Weight [g]:
Mortice Lock TKZ20 L MS
Art. no. 20814
Level: 6
Weight [g]:
Mortice Lock TKZ20 L ER
Art. no. 20816
Level: 6
Weight [g]:
Mortice Lock TKZ20 L S
Art. no. 21038
Level: 9
Weight [g]:
Mortice Lock TKZ20 R ER
Art. no. 20815
Level: 6
Weight [g]:
Mortice Lock TKZ20 L W
Art. no. 21289
Level: 6
Weight [g]:
Mortice Lock TKZ20 R W
Art. no. 21290
Level: 6
Weight [g]:
Mortice Lock TKZ20 R HG/18mm
Art. no. 23757
Level: 6
Weight [g]:
Mortice Lock TKZ20 L HG/18mm
Art. no. 23758
Level: 6
Weight [g]:

Downloads:

Mortice locks

Mortice locks

The mortice lock is activated by the door cylinder – it may be invisible but it has a crucial function. Just as it's impossible to start an engine without a starter motor, a door cannot be locked without a mortise lock.ABUS mortise locks that meet DIN 18251ABUS offers a wide range of mortise locks that meet DIN 18251 with solutions for a variety of needs, e.g. fire doors or doors with narrow profiles. The premium product is the TKZ 40 – a ...
