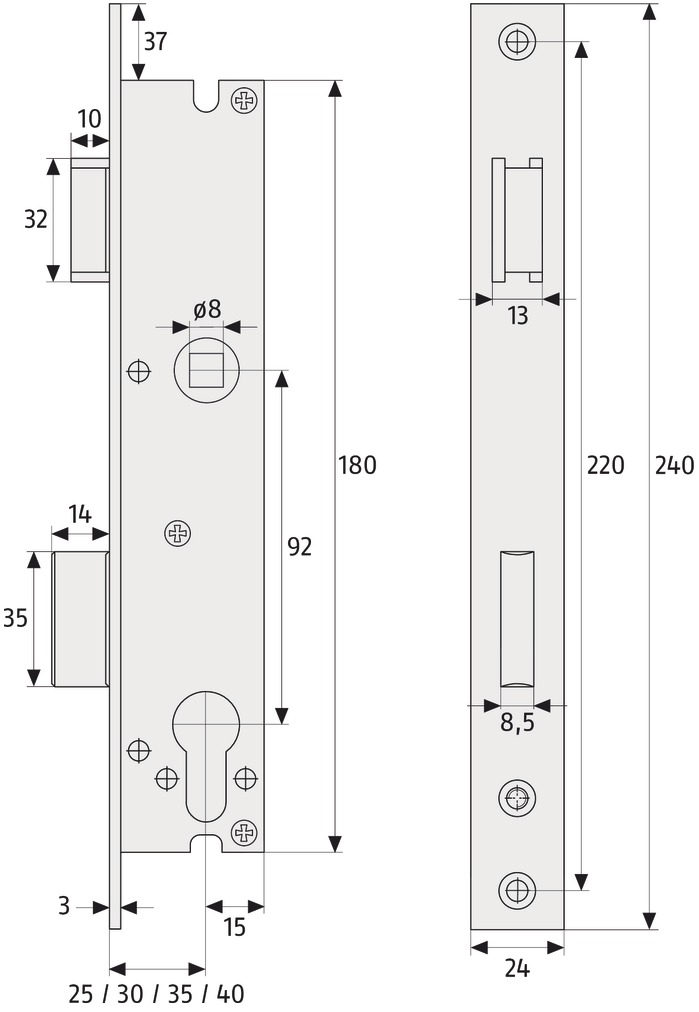

Mortice lock RR25 Mortice lock RR25 Mortice lock RR25 Mortice lock RR25 Technical drawing
Level 7 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Mortice lock for door cylinders Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Distance between center of door cylinder and center of thumb turn or handle
|||

Mortice Lock RR

Heavy duty mortice lock

Technology:

  • High capacity of resistance by use of high quality materials
  • Extra solid mechanical construction
  • Metal latch and bolt
  • Both counter and latch spring made from special steel
  • Extra corrosion protection by electrolytic galvanizing

Operation and use:

  • For doors with tubular frames
  • When closing the door only the latch is being operated
  • By locking the door cylinder the bolt is activated
  • Can be used right or left as latch can be turned

Variants:

  • Finish: galvanic zinc plated

Technical data:

Art. no.: 20824
Distance [mm]: 92
Forend [mm]: 24
Follower backset [mm]: 25
Packing Unit: 3
Level: 7
Colour: galvanisch verzinkt

Variants:

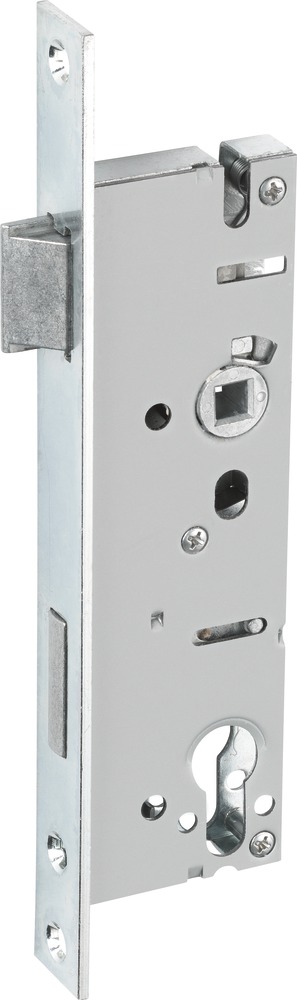

Mortice Lock RR
Art. no. 20824
Distance [mm]: 92
Level: 7

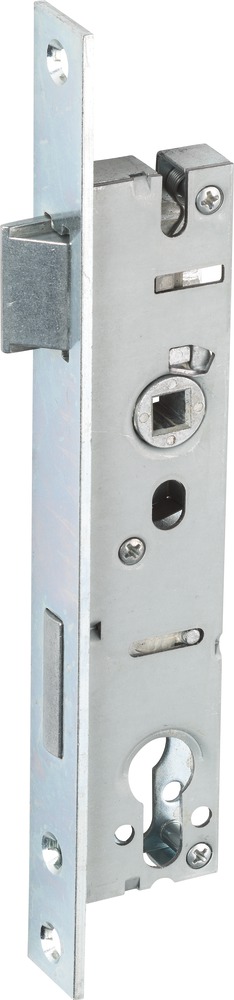

Mortice Lock RR30
Art. no. 20823
Distance [mm]: 92
Level: 7

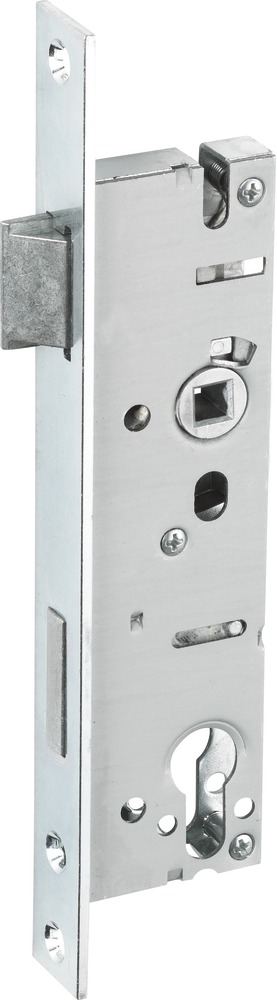

Mortice Lock RR35
Art. no. 21528
Distance [mm]: 92
Level: 7

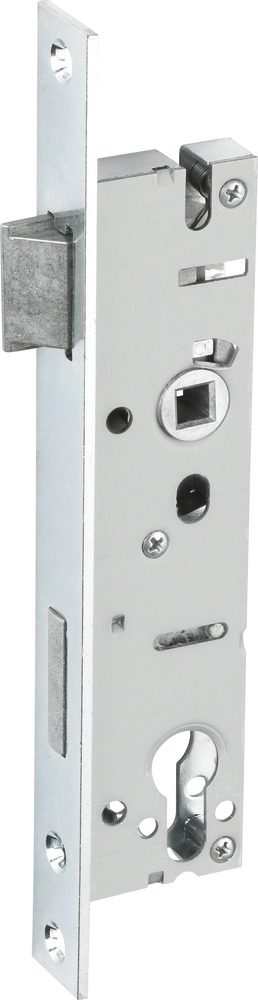

Mortice Lock RR40
Art. no. 35377
Distance [mm]: 92
Level: 7

Downloads:

Mortice locks

Mortice locks

The mortice lock is activated by the door cylinder – it may be invisible but it has a crucial function. Just as it's impossible to start an engine without a starter motor, a door cannot be locked without a mortise lock.ABUS mortise locks that meet DIN 18251ABUS offers a wide range of mortise locks that meet DIN 18251 with solutions for a variety of needs, e.g. fire doors or doors with narrow profiles. The premium product is the TKZ 40 – a ...
