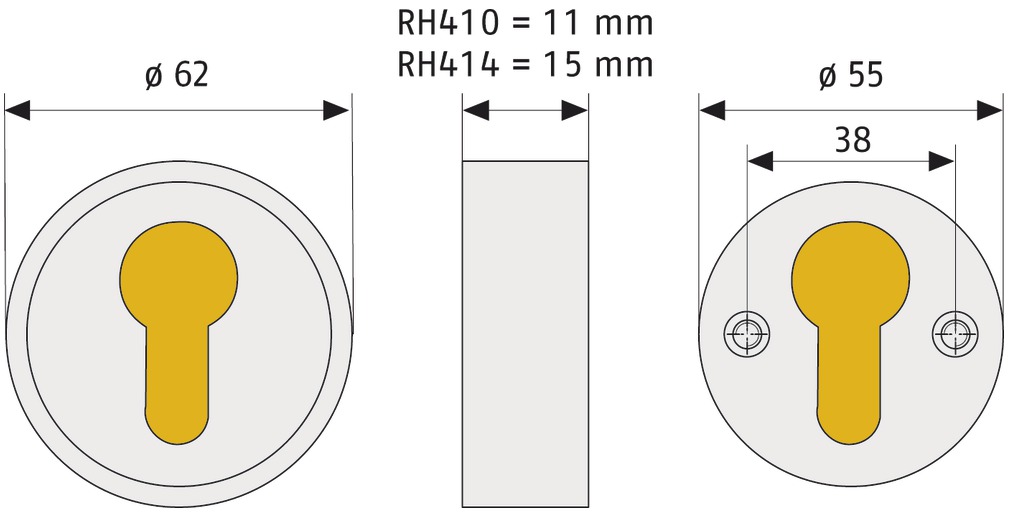

Escutcheon plate RH410 F1 Escutcheon plate RH410 F1 Technical drawing
Level 3 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production
|||

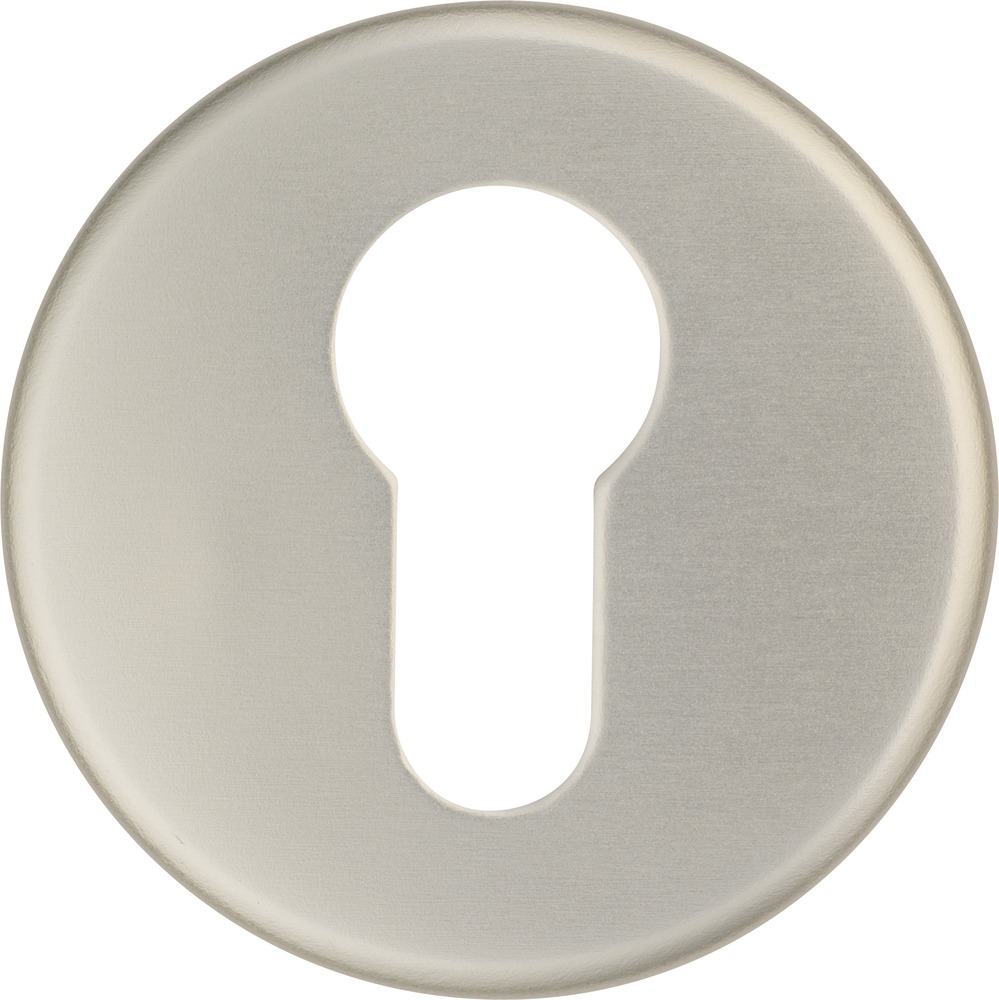

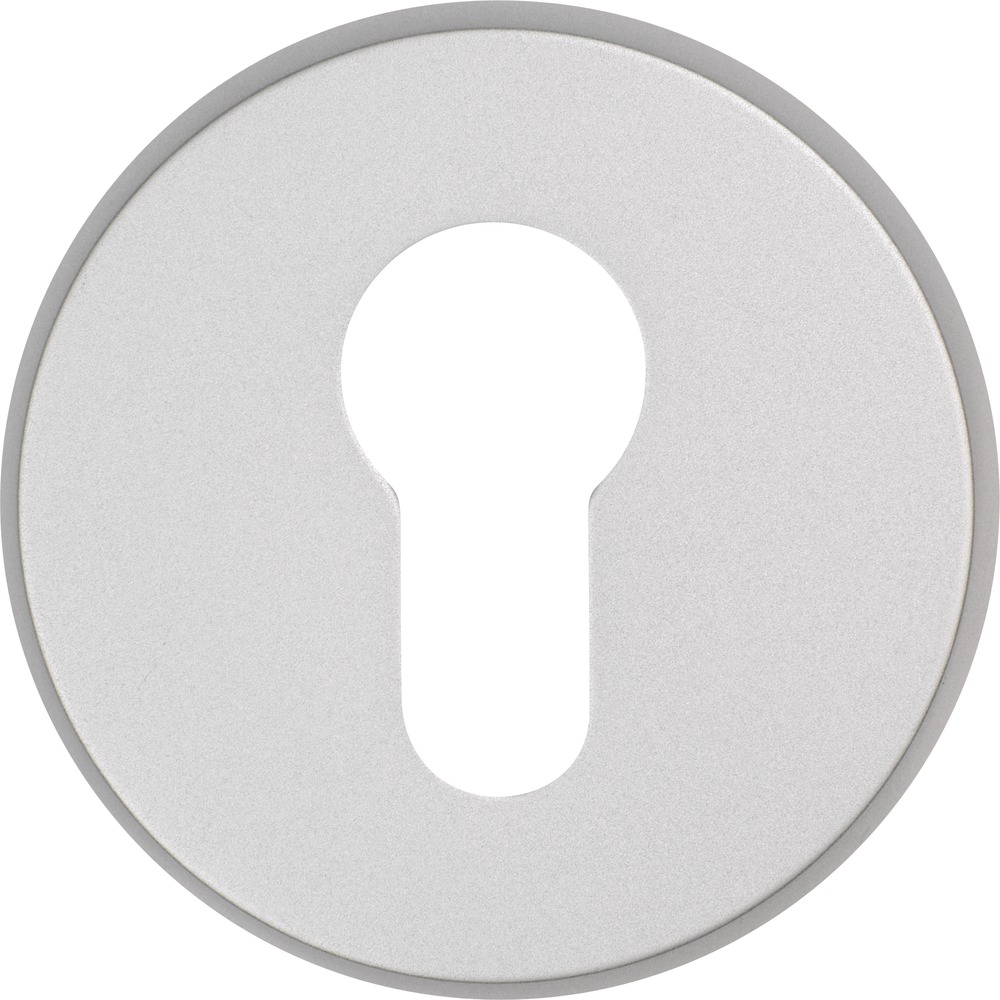

Escutcheon Plate RH410 F1 SB

Escutcheon plate

Technology:

  • Two depths available
  • Screws protected against driling
  • Cylinders should protrude no more than 3 mm

Operation and use:

  • For wooden doors
  • Protruding EURO-Profile Cylinders should be protected with escutcheon plates

Variants:

  • Finishes: F1 (alu anodized), F2 (silver anodized), F3 (anodized brass), F4 (anodized bronze), B7 (antique copper)

Technical data:

Art. no.: 30442
Level: 3
Colour: F1

Variants:

Escutcheon Plate RH410 F1 SB
Art. no. 30442
Level: 3
Weight [g]:
Escutcheon Plate RH410 F2 SB
Art. no. 03669
Level: 3
Weight [g]:
Escutcheon Plate RH414 F1 SB
Art. no. 30443
Level: 3
Weight [g]:
Escutcheon Plate RH414 F2 SB
Art. no. 03671
Level: 3
Weight [g]:

Downloads:

Escutcheon plates

Escutcheon plates

Whenever there is no room for security door fittings or where they spoil the appearance, security escutcheon plates are recommended.Escutcheon plates are like a frame for door cylinders. They bed the cylinder in and thereby protect it against a range of methods of breaking in. This special security device prevents the bolt from being pulled open.ABUS escutcheon plates are available for both metal and wooden doors. Available in all standard ...
