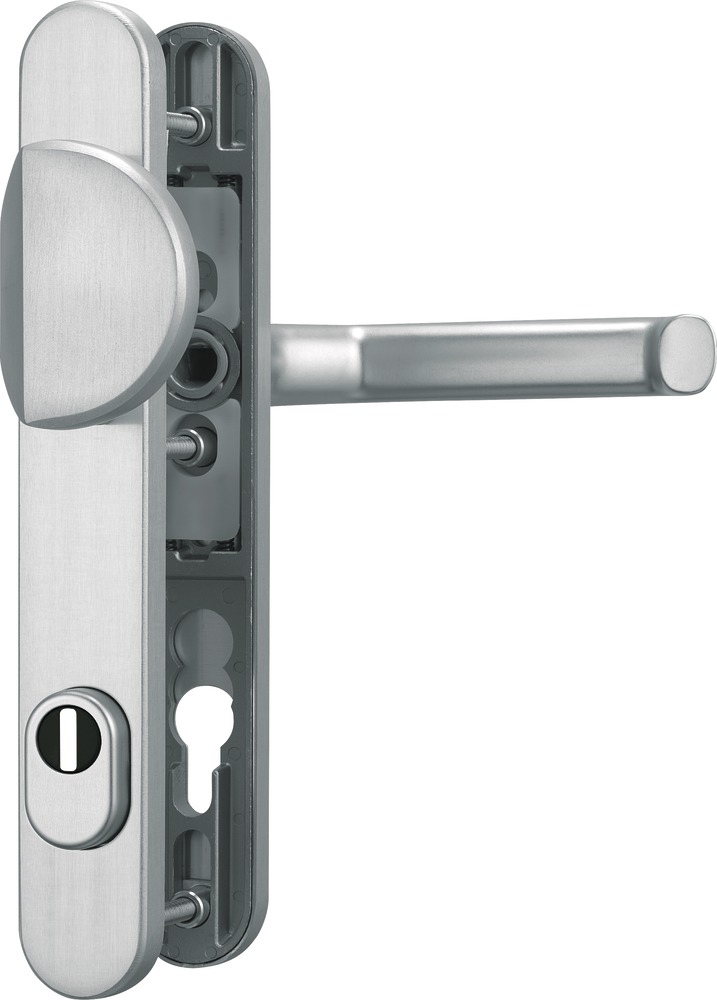

Door Fitting SRG92 ZS F1 EK

Door fitting for narrow frames with cylinder protection

Technology:

  • Integrated pulling protection with cylinder cover
  • Distance of cams adjustable to most common drilling patterns
  • Outside shield with steel plate
  • Fixing screws hidden by decorative aluminium plate
  • Easy fitting

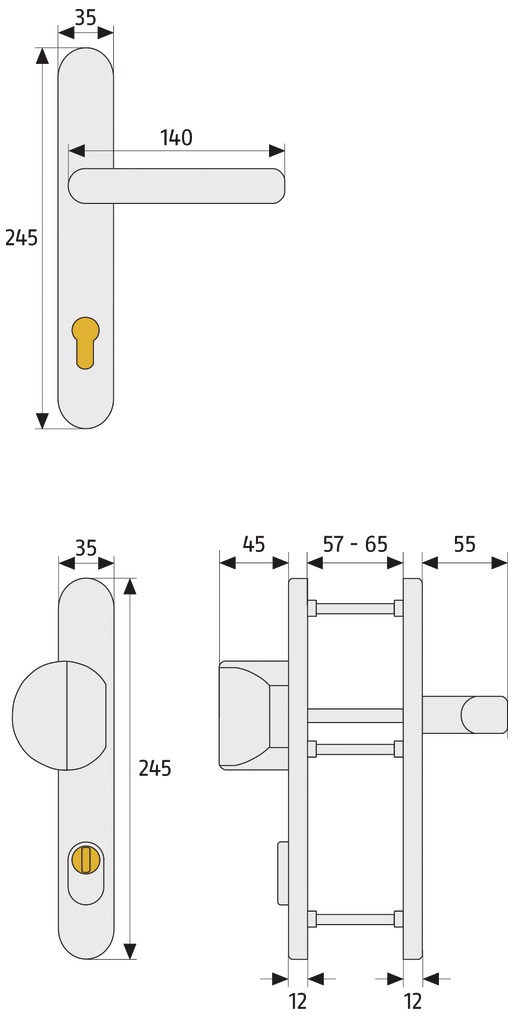

  • Spacing: 92 mm, square bolt: 8 mm

Operation and use:

  • For universal use on narrow frames
  • Grip plate outside, handle inside

Variants:

  • Finishes: F1 (alu anodized), white

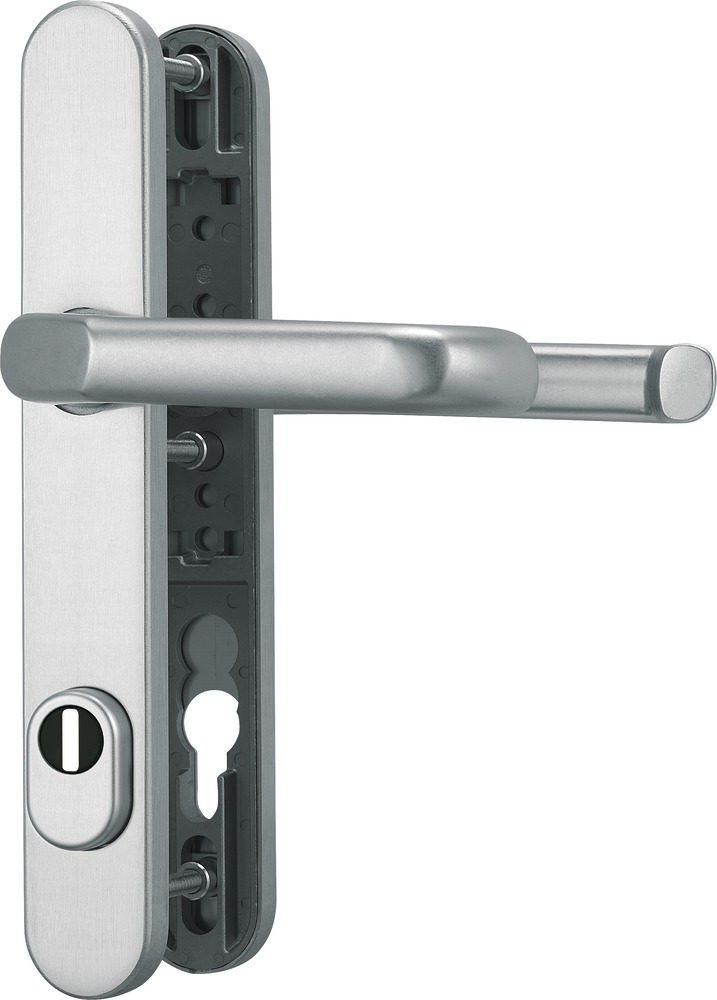

  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 47956
Version: 8-15
Cylinder protusion [mm]: 8 - 15
Level: 5
Colour: F1

Variants:

Door Fitting SRG92 ZS F1 EK
Art. no. 47956
Version: 8-15
Level: 5

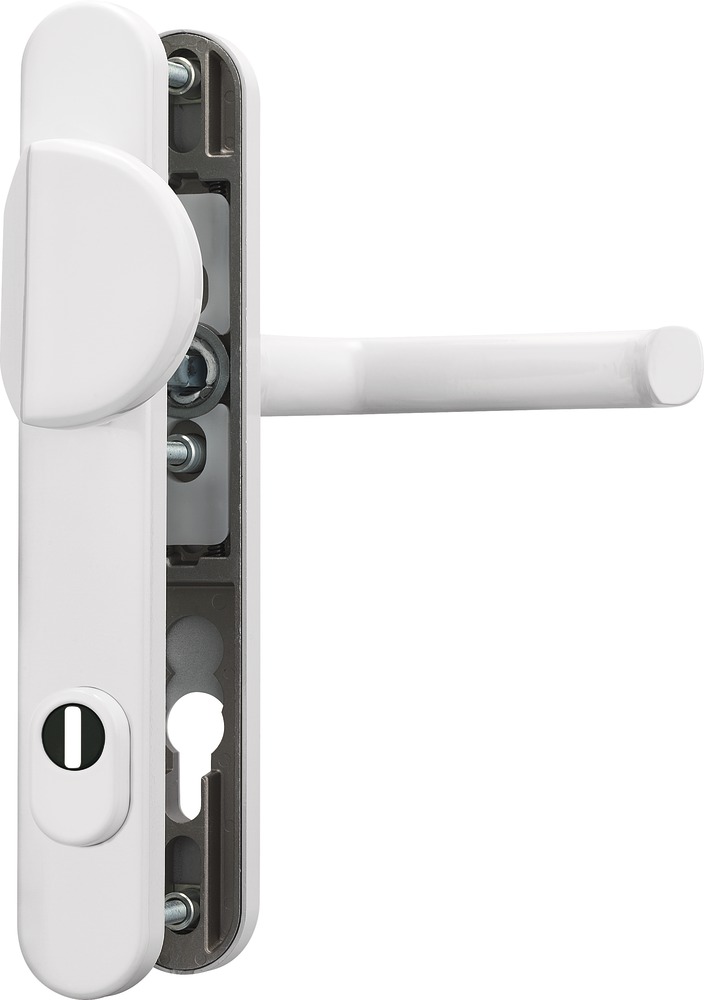

Door Fitting SRG92 ZS W EK
Art. no. 47957
Level: 5
Weight [g]:
Door Fitting SRG92 ZS F1 b.Dr. EK
Art. no. 47958
Level: 5
Weight [g]:

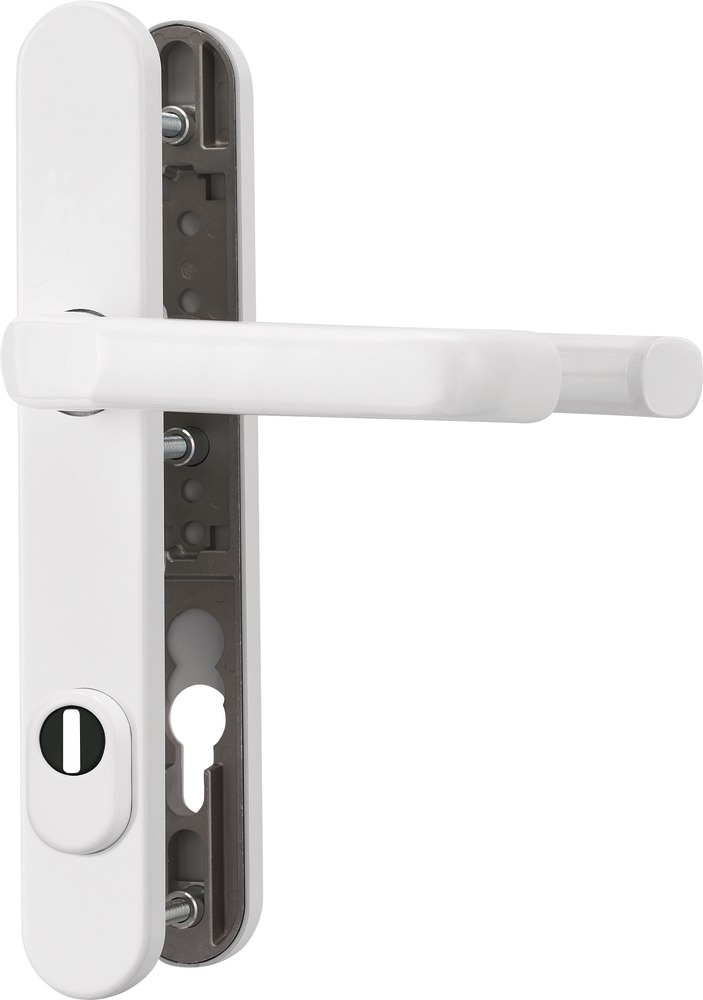

Door Fitting SRG92 ZS W b.Dr. EK
Art. no. 47959
Level: 5
Weight [g]:

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
