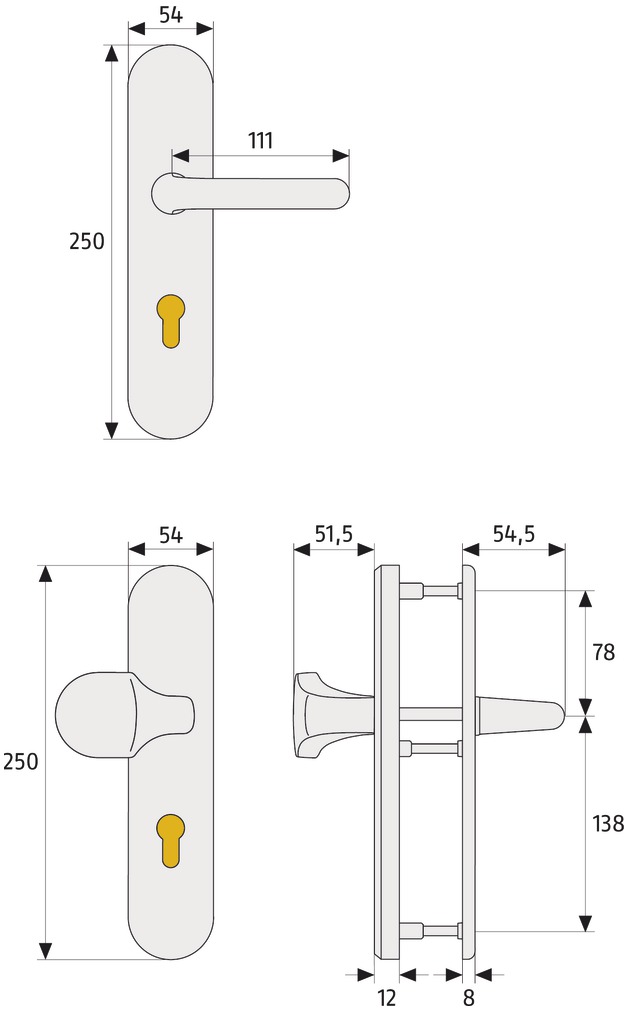

Door fitting Technical drawing
Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Tested and approved product Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Leverage attack resistant (withstands centered pulling force in excess of 1.5 tons) Distance between center of door cylinder and center of thumb turn or handle
DIN certified
|||

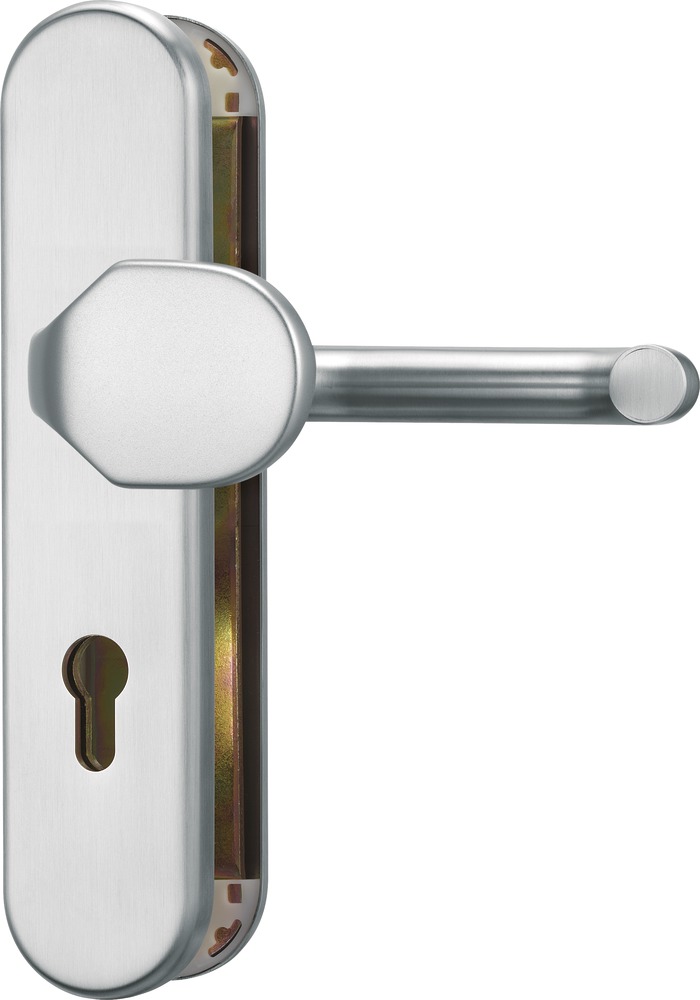

Door Fitting KLT512 F1 FS EK

Strong door fitting for fire doors

Technology:

  • Certified according to DIN, TÜV tested, VdS approved, supervised by the MPA NRW (German institute for testing of materials)
  • Steel core in handle
  • Maximum resistance due to the layer construction: several bottom plates, with a total of 13.5 mm thickness, for maximum protection
  • High impact resistance: extra long steel cams, complete with tempered special screws (3 x M6)
  • An additional steel inset provides extra strong leverage/tear-off resistance
  • Grip plate adjustable to DIN left and right doors
  • Spacing: 72 mm, square bolt: 9 mm

Operation and use:

  • For fire doors
  • Suitable for rebated and flush doors, left and right opening
  • Grip plate outside, handle inside

Variants:

  • Finish: F1 (alu anodized)
  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 42559
Version: Feuerschutzgarnitur nach DIN 18 273
Level: 6
Colour: F1F1

Variants:

Door Fitting KLT512 F1 FS EK
Art. no. 42559
Version: Feuerschutzgarnitur nach DIN 18 273
Level: 6

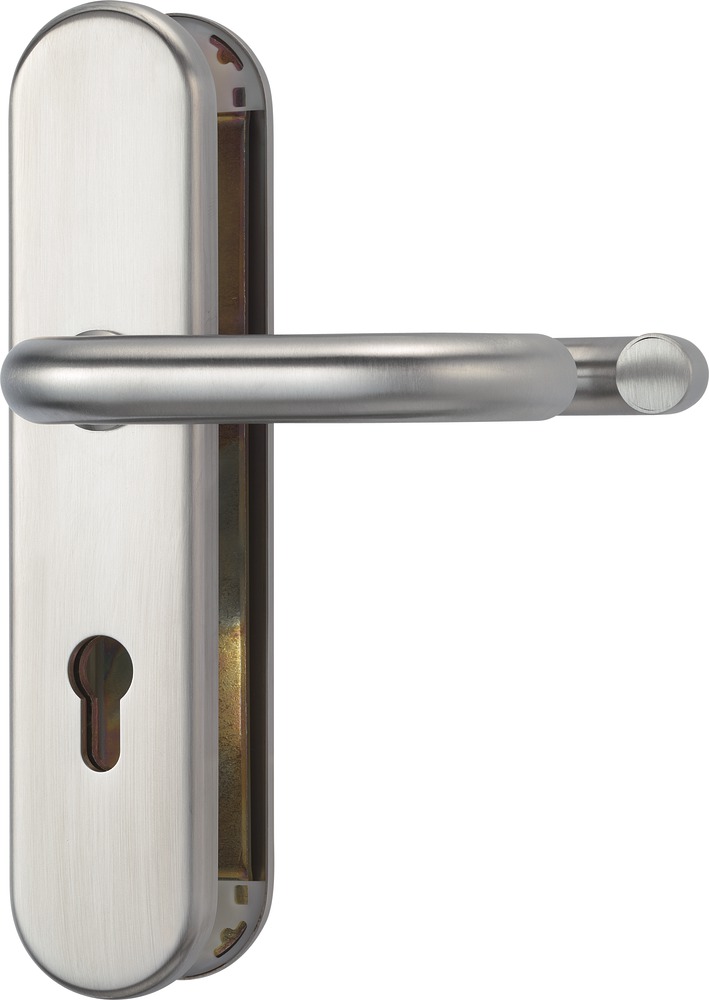

Door Fitting KLT512 F1 b. Dr. FS EK
Art. no. 42556
Version: Feuerschutzgarnitur nach DIN 18 273
Level: 6

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
