Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Drill attack resistant Provides pulling protection to door cylinders Distance between center of door cylinder and center of thumb turn or handle
|||

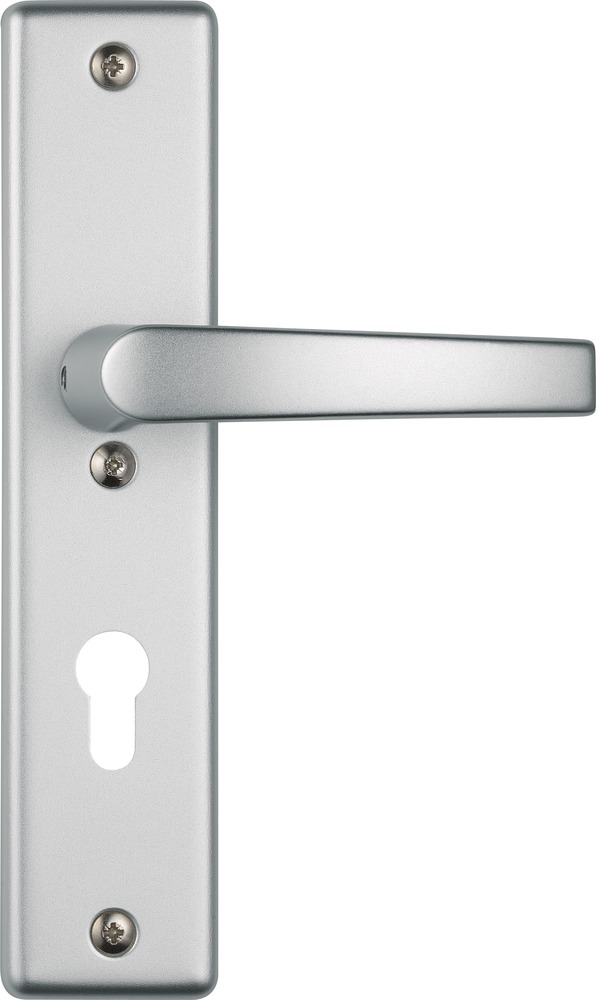

Door Fitting KLS114 ZS F1 EK

Standard door fitting with cylinder protection

Technology:

  • According to DIN EN 1906 SK 1 and DIN 18 257 ES 0
  • Integrated pulling protection with cylinder cover plus freely rotating special steel disc
  • Increased leverage resistance: solid cams plus inner screws
  • Proven layered construction: hardened steel bottom plate, plus sturdy cover plate
  • Just one version is necessary to cover cylinder protrusions from 10 - 18 mm
  • Spacing: 72 mm, square bolt: 8 mm

Operation and use:

  • For apartment doors
  • Grip plate outside, handle inside

Variants:

  • Finishes: F1 (alu anodized), F2 (silver anodized)
  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 21130
Version: Wechselgarnitur
Cylinder protusion [mm]: 10-18
Level: 6
Colour: F1

Variants:

Door Fitting KLS114 ZS F1 EK
Art. no. 21130
Version: Wechselgarnitur
Level: 6
Door Fitting KLS114 ZS F2 EK
Art. no. 20881
Version: Wechselgarnitur
Level: 6
Door Fitting KLS114 ZS F1 b. Dr. EK
Art. no. 21131
Version: Beidseitig Drücker
Level: 6
Door Fitting KLS114 ZS F2 b. Dr.EK
Art. no. 20886
Version: Beidseitig Drücker
Level: 6

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
