Level 8 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Tested and approved product Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Drill attack resistant Provides pulling protection to door cylinders Leverage attack resistant (withstands centered pulling force in excess of 1.5 tons) Distance between center of door cylinder and center of thumb turn or handle
DIN certified
|||

Door Fitting KKZS 700

Door fitting with steel cylinder protection

Technology:

  • Certified according to DIN EN 1906 SK 2 and DIN 18 257 ES 1 ZA, TÜV tested, VdS approved
  • Short cover plate
  • Maximum resistance due to the layer construction: several bottom plates, with a total of 13.5 mm thickness, for maximum protection
  • High impact resistance: extra long steel cams, complete with tempered special screws
  • An additional steel inset provides extra strong leverage/tear-off resistance
  • Integrated pulling protection with cylinder cover plus freely rotating special steel disc
  • Grip plate adjustable to DIN left and right doors
  • Spacing: 72 mm, square bolt: 8 mm

Operation and use:

  • For apartment doors
  • Suitable for rebated and flush doors, left and right opening
  • Grip plate outside, handle inside

Variants:

  • Finishes: F1 (alu anodized), F2 (silver anodized), F3 (anodized brass), F4 (anodized bronze)
  • Alternatively available as a handle/handle set
  • Model fire protection (only in F1)

Technical data:

Art. no.: 20355
Version: Wechselgarnitur kurz
Cylinder protusion [mm]: 10-18
Level: 8
Colour: F1

Variants:

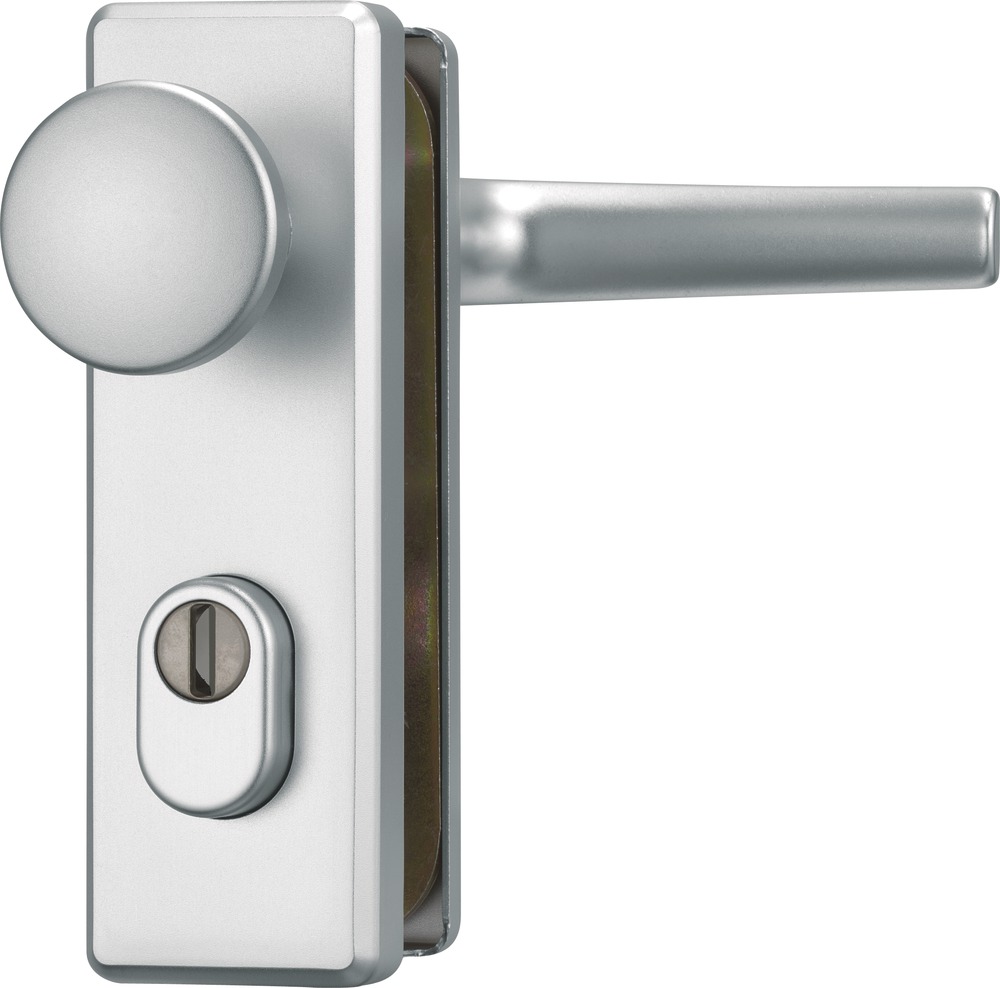

Door Fitting KKZS 700
Art. no. 20355
Version: Wechselgarnitur kurz
Level: 8

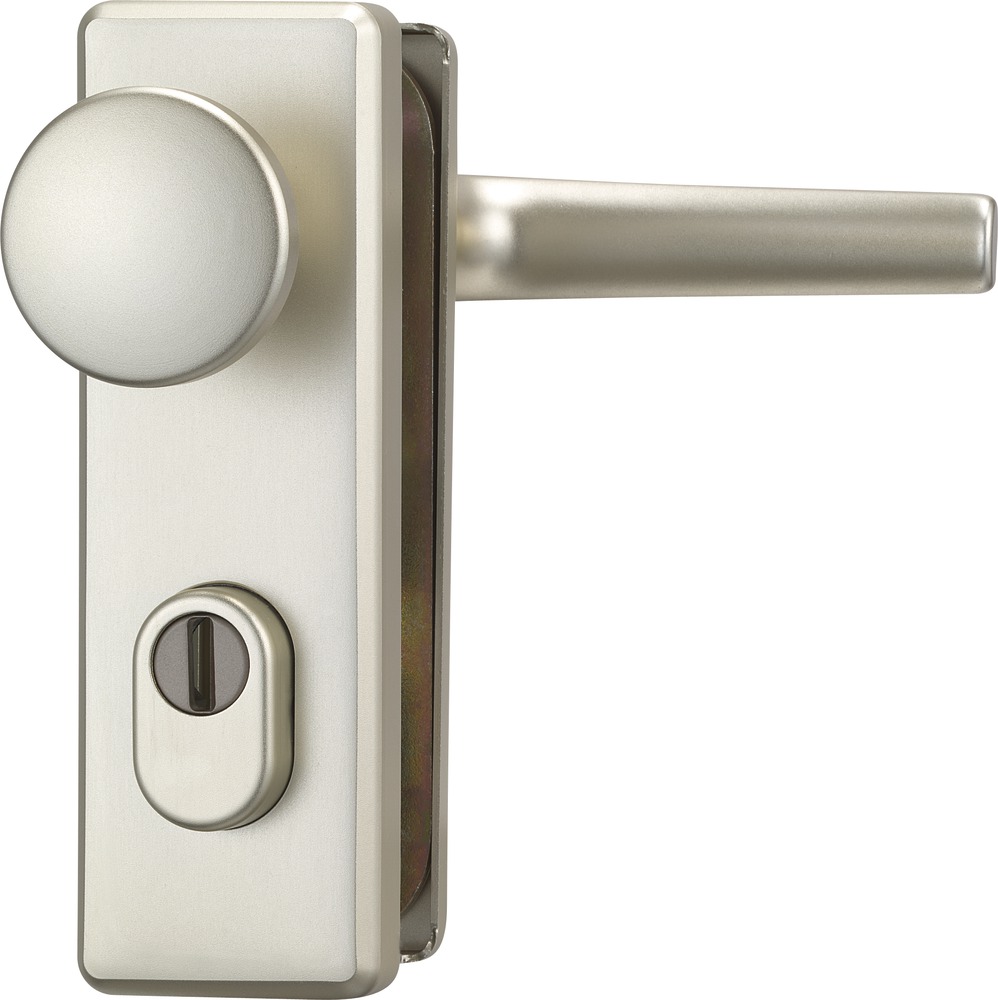

Door Fitting KKZS700 F2 EK
Art. no. 08963
Version: Wechselgarnitur kurz
Level: 8

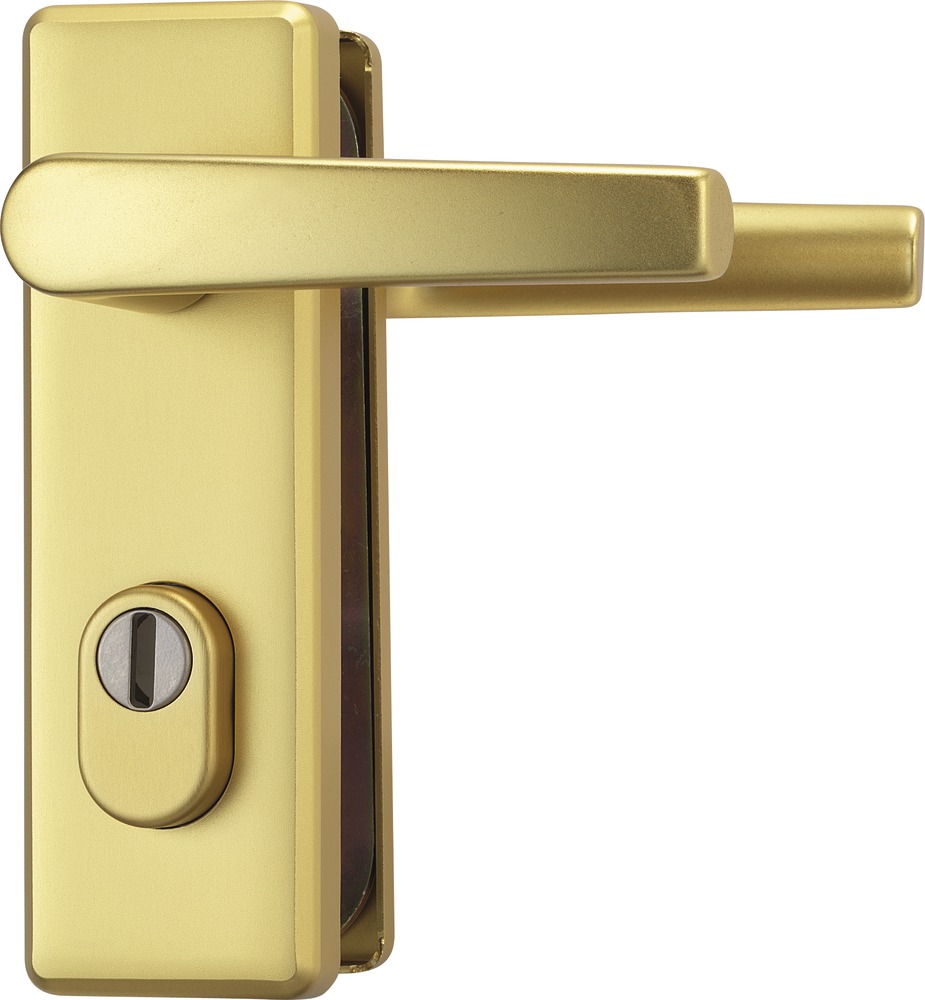

Door Fitting KKZS700 F3 EK
Art. no. 08964
Version: Wechselgarnitur kurz
Level: 8

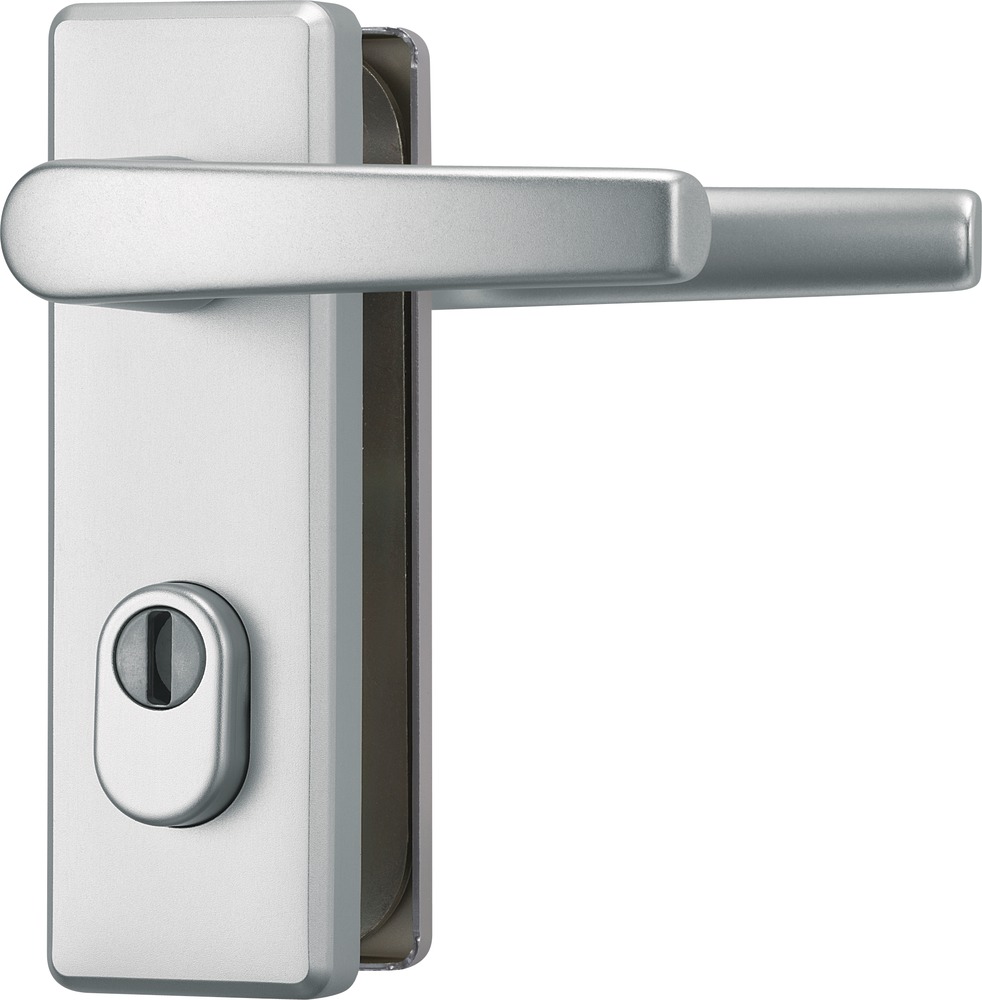

Door Fitting KKZS700 F2 b. Dr. EK
Art. no. 08965
Version: Beidseitig Drücker kurz
Level: 8

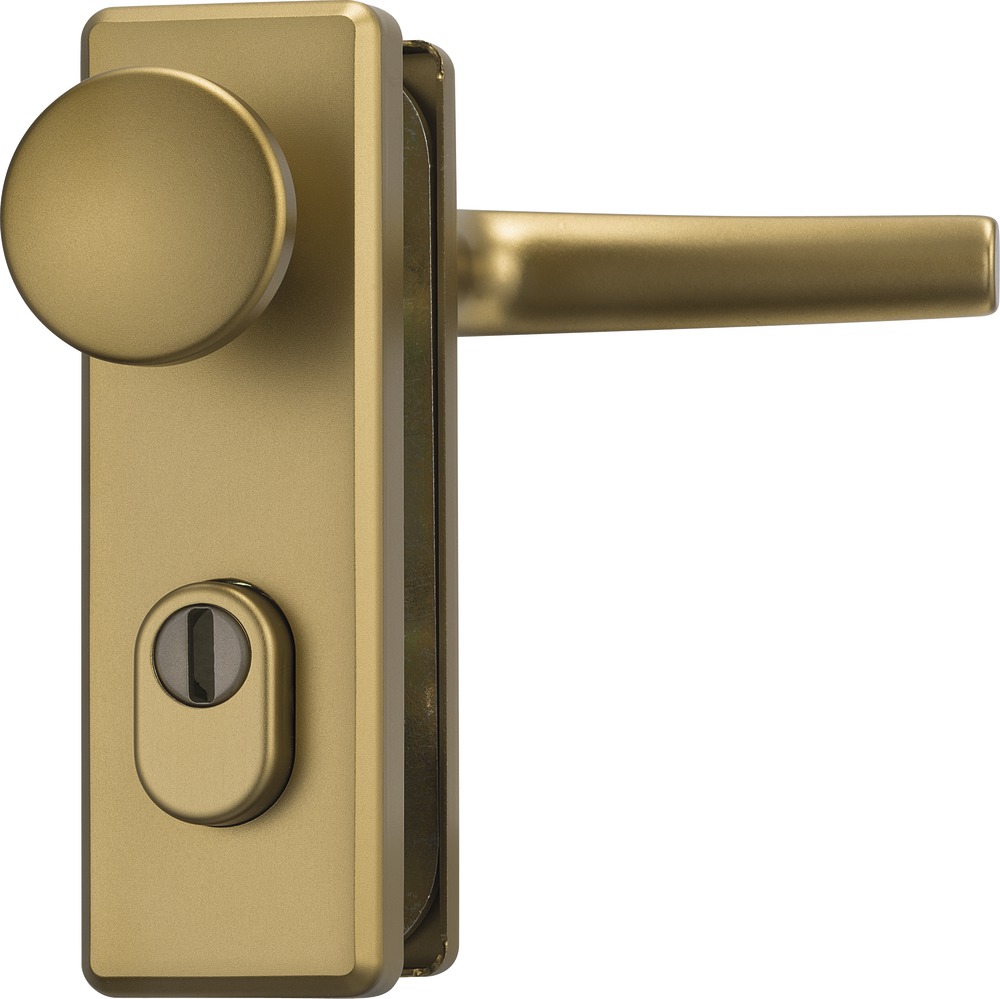

Door Fitting KKZS700 F4 EK
Art. no. 08966
Version: Wechselgarnitur kurz
Level: 8
Door Fitting KKZS700 F2 SB
Art. no. 09340
Version: Wechselgarnitur kurz
Level: 8

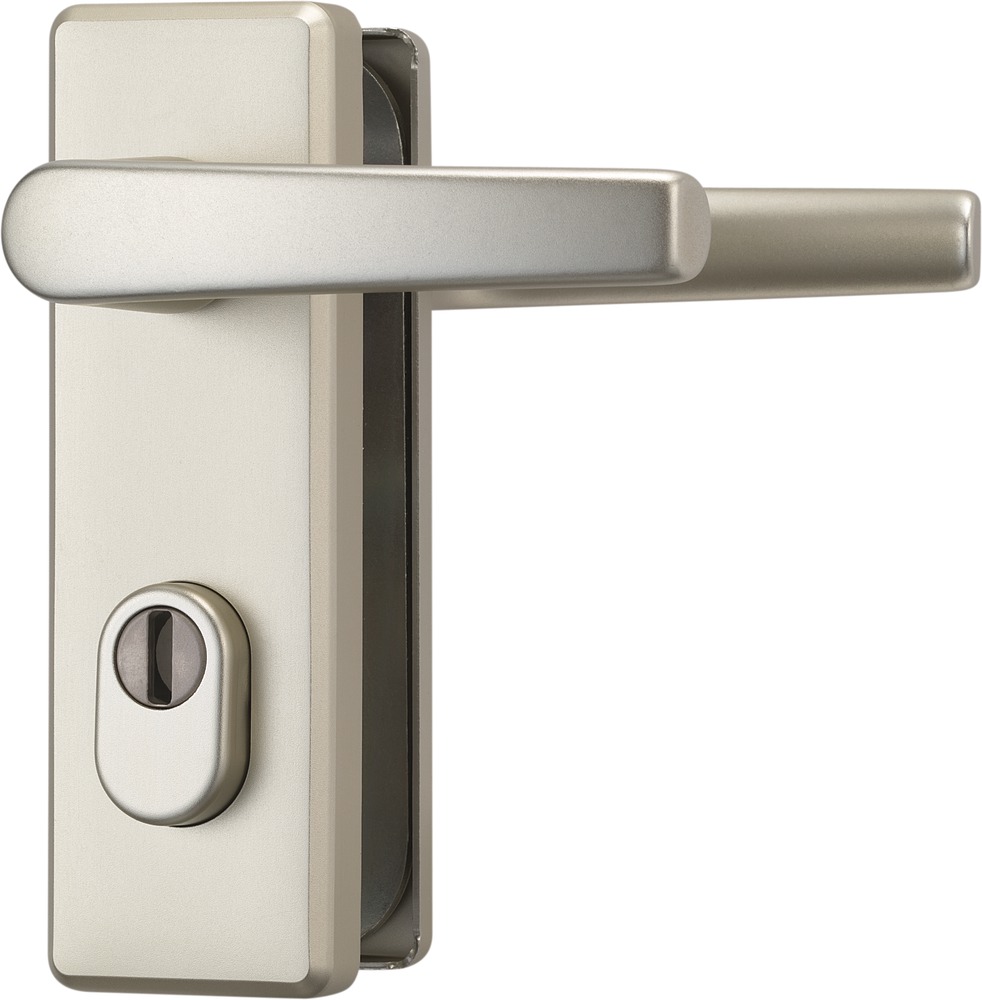

Door Fitting KKZS700 F1 b. Dr. EK
Art. no. 20726
Version: Beidseitig Drücker kurz
Level: 8

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
