Door fitting KKT512 F1 Door fitting KKT512 F1 Door fitting KKT512 F1

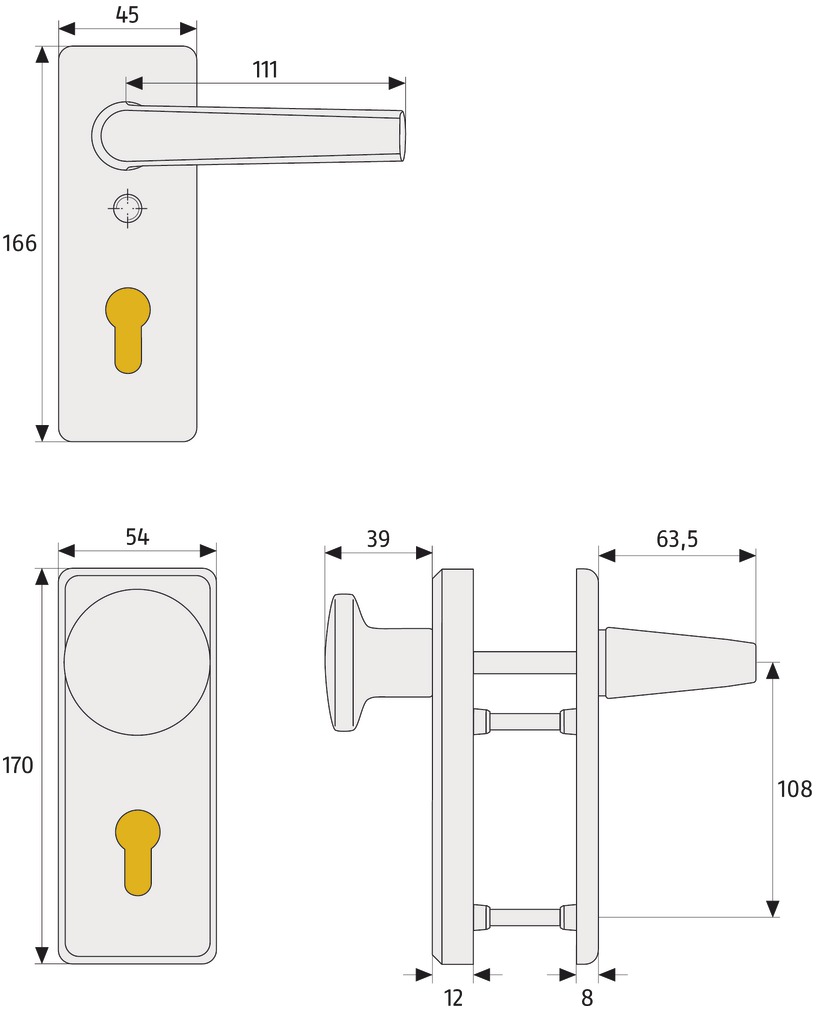

Technical drawing
Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Tested and approved product Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Leverage attack resistant (withstands centered pulling force in excess of 1.5 tons) Distance between center of door cylinder and center of thumb turn or handle
DIN certified
|||

Door Fitting KKT512 F1 EK

Strong door fitting

Technology:

  • Certified according to DIN EN 1906 SK 2 and DIN 18 257 ES, TÜV tested, VdS approved
  • Short cover plate
  • Maximum resistance due to the layer construction: several bottom plates for maximum protection
  • High impact resistance: extra long steel cams, complete with tempered special screws
  • An additional steel inset provides extra strong leverage/tear-off resistance
  • Grip plate adjustable to DIN left and right doors
  • Spacing: 72 mm, square bolt: 8 mm

Operation and use:

  • For apartment doors
  • Suitable for rebated and flush doors, left and right opening
  • Grip plate outside, handle inside

Variants:

  • Finishes: F1 (alu anodized), F2 (silver anodized)
  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 26439
Version: Wechselgarnitur
Cylinder protusion [mm]: 12
Level: 6
Colour: F1

Variants:

Door Fitting KKT512 F1 EK
Art. no. 26439
Version: Wechselgarnitur
Level: 6
Door Fitting KKT512 F2 EK
Art. no. 24888
Version: Wechselgarnitur
Level: 6
Door Fitting KKT512 F2 SB
Art. no. 24919
Version: Wechselgarnitur
Level: 6
Door Fitting KKT512 F2 b. Dr. EK
Art. no. 24890
Version: Beidseitig Drücker
Level: 6
Door Fitting KKT512 F1 b. Dr. EK
Art. no. 26438
Version: Beidseitig Drücker
Level: 6

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
