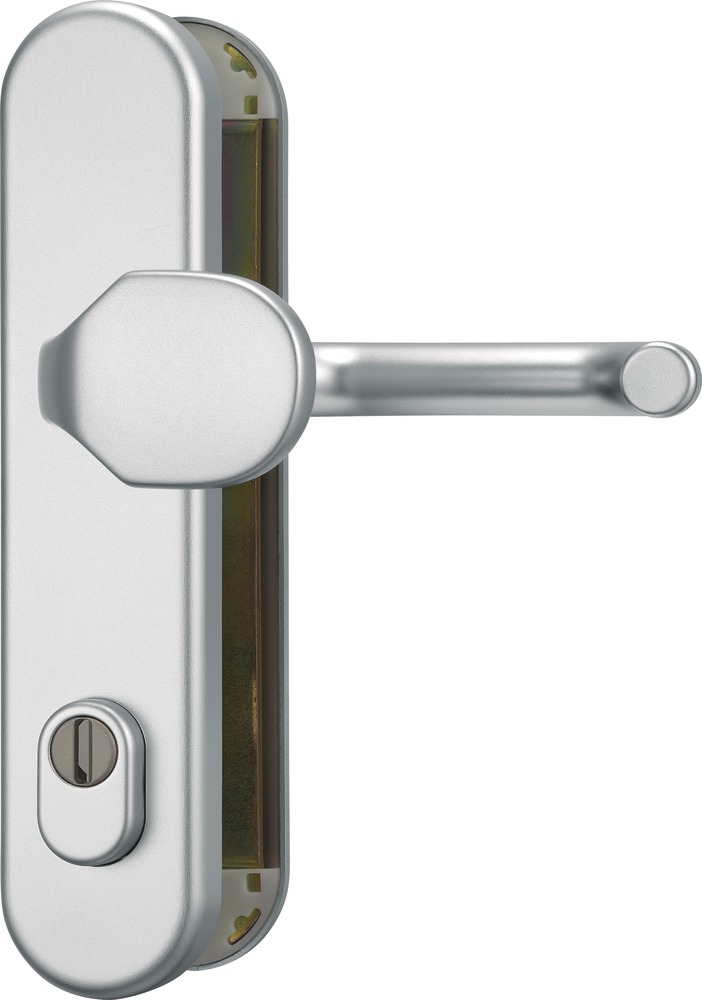

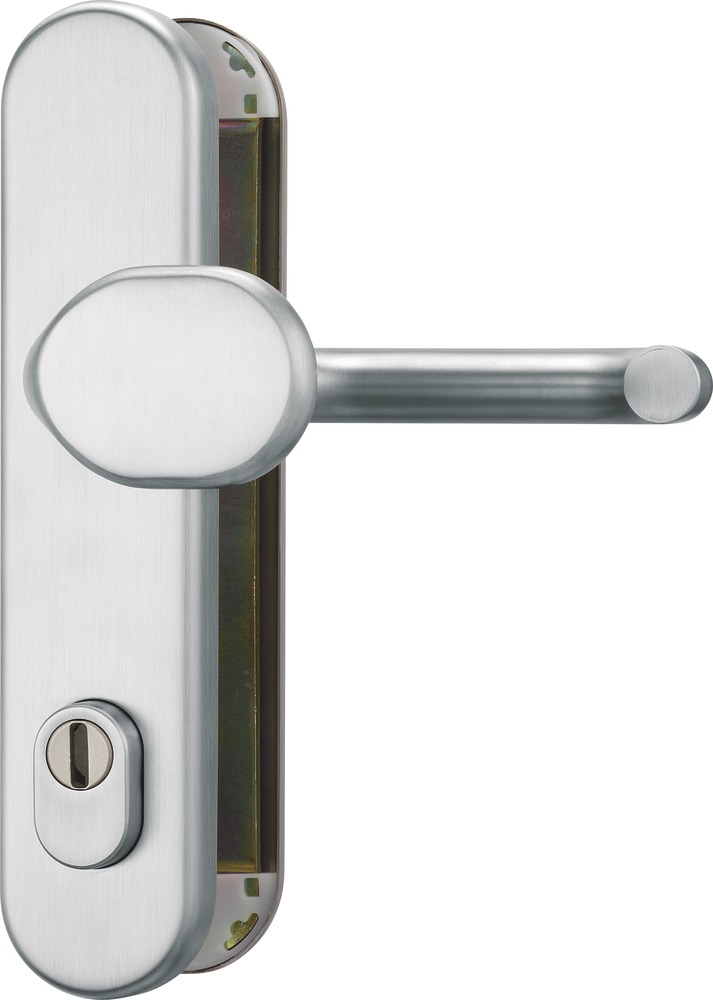

Door Fitting HLZS814 F1 EK

Door fitting with steel cylinder protection - round

Technology:

  • Certified according to DIN EN 1906 SK 2 and DIN 18 257 ES 1 ZA, TÜV tested, VdS approved
  • Maximum resistance due to the layer construction: several bottom plates, with a total of 13.5 mm thickness, for maximum protection
  • High impact resistance: extra long steel cams, complete with tempered special screws (3 x M6)
  • An additional steel inset provides extra strong leverage/tear-off resistance
  • Integrated pulling protection with cylinder cover plus freely rotating special steel disc
  • Grip plate adjustable to DIN left and right doors

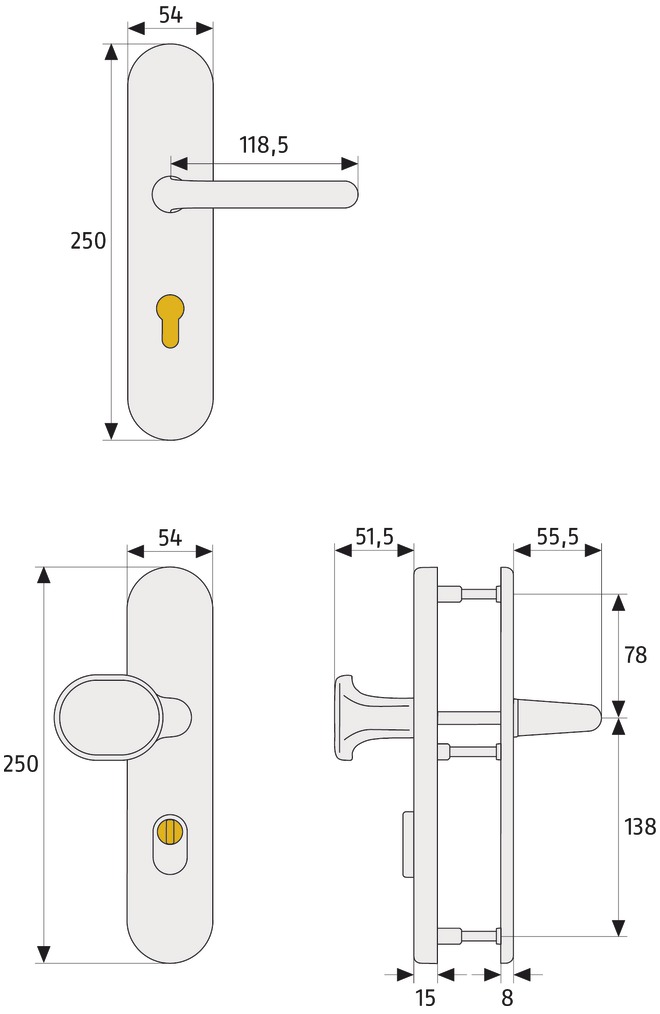

  • HLZS: spacing: 92 mm, square bolt: 10 mm
  • KLZS: spacing: 72 mm, square bolt: 8 mm

Operation and use:

  • For main entrance doors (HLZS) and apartment doors (KLZS)
  • Suitable for rebated and flush doors, left and right opening
  • Grip plate outside, handle inside

Variants:

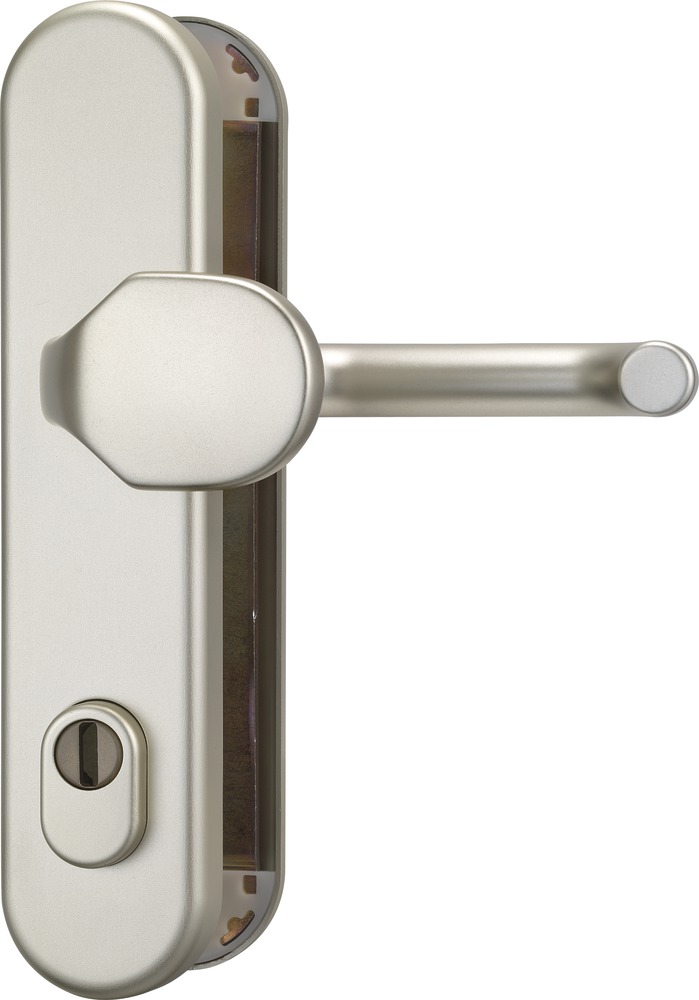

  • Finishes: F1 (alu anodized), F2 (silver anodized), stainless steel, brass, white
  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 37404
Version: Wechselgarnitur rund
Cylinder protusion [mm]: 10-18
Level: 8
Colour: F1

Variants:

Door Fitting HLZS814 F1 EK
Art. no. 37404
Version: Wechselgarnitur rund
Level: 8
Door Fitting HLZS814 F2 EK
Art. no. 37405
Version: Wechselgarnitur rund
Level: 8
Door Fitting HLZS814 ER EK
Art. no. 12229
Version: Wechselgarnitur rund
Level: 8
Door Fitting HLZS814 ER SB
Art. no. 12230
Version: Wechselgarnitur rund
Level: 8

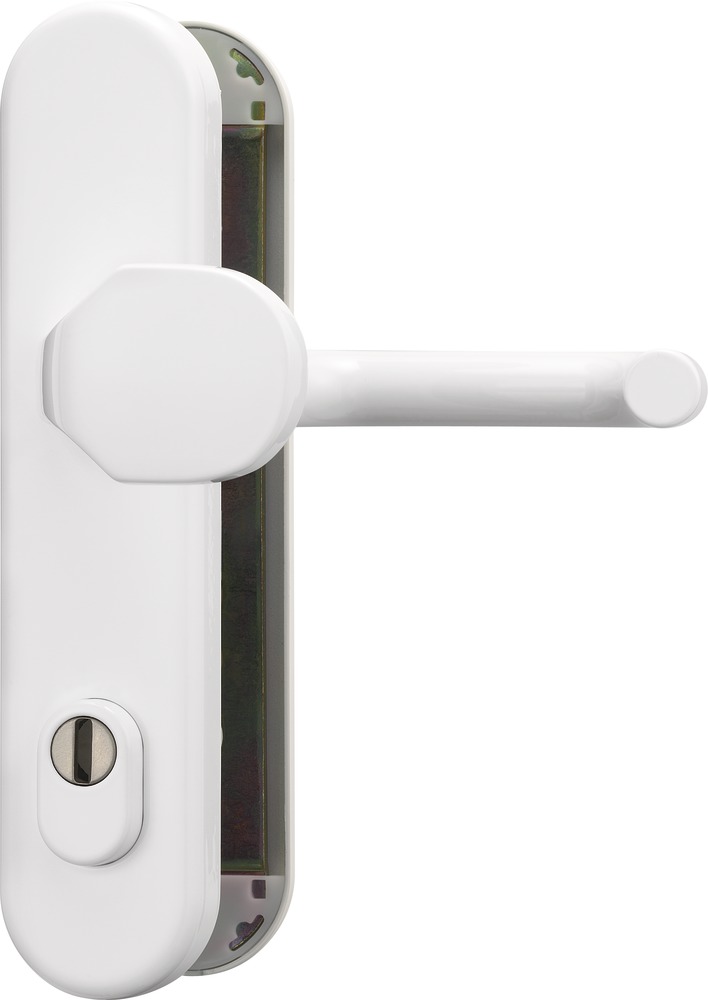

Door Fitting HLZS814 W EK
Art. no. 12236
Version: Wechselgarnitur rund
Level: 8

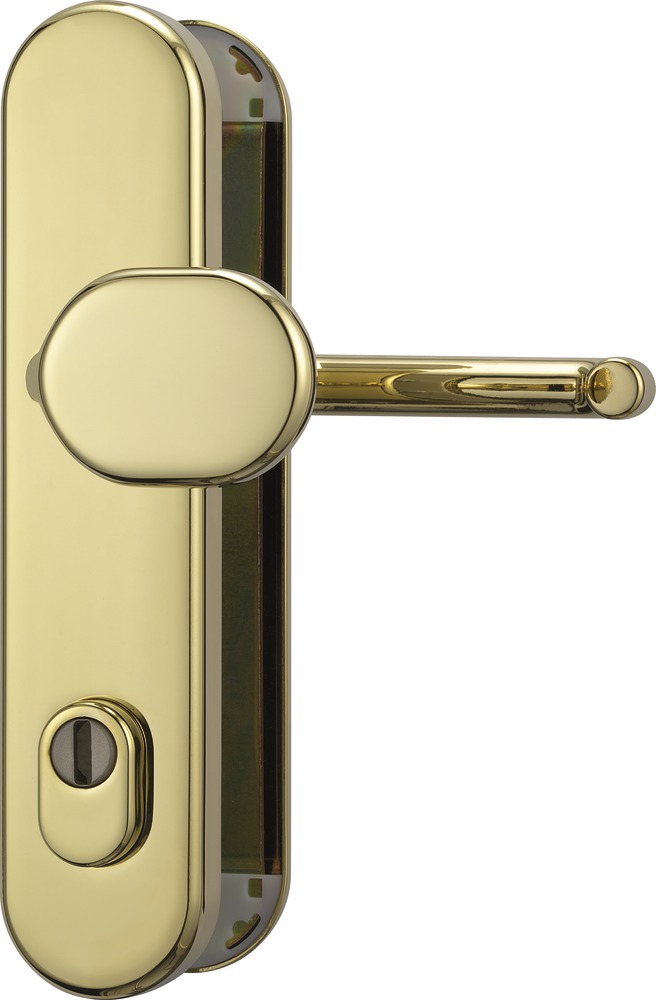

Door Fitting HLZS814 MS EK
Art. no. 12245
Version: Wechselgarnitur rund
Level: 8
Door Fitting HLZS814 MS SB
Art. no. 12246
Version: Wechselgarnitur rund
Level: 8
Door Fitting KLZS714 ER EK
Art. no. 12227
Version: Wechselgarnitur rund
Level: 8

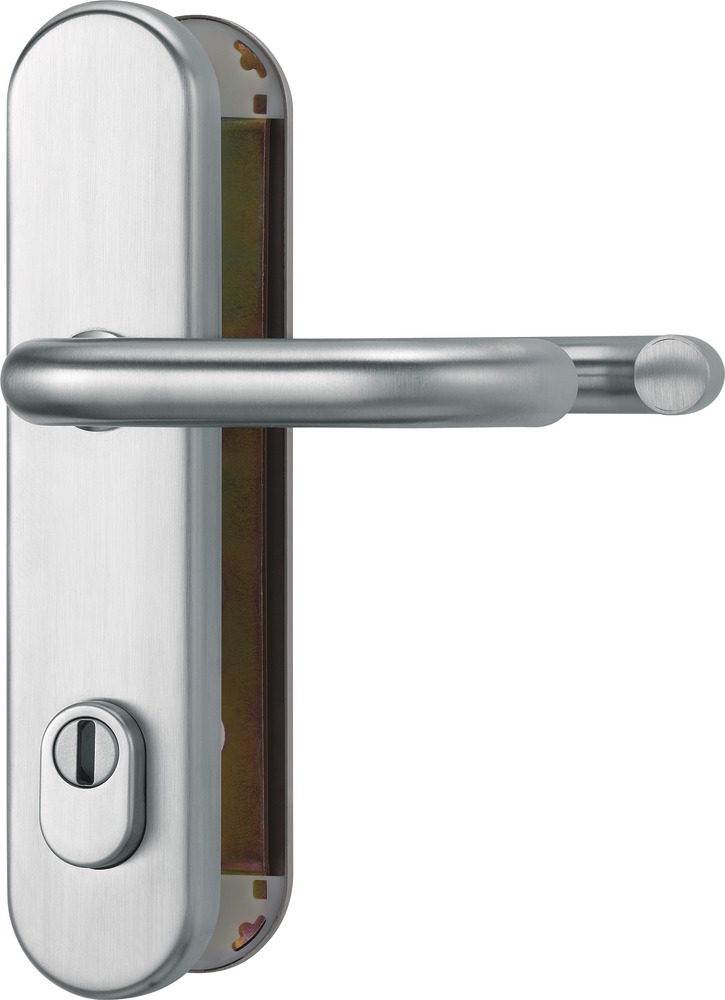

Door Fitting HLZS814 ER b. Dr. EK
Art. no. 12233
Version: Beidseitig Drücker rund
Level: 8

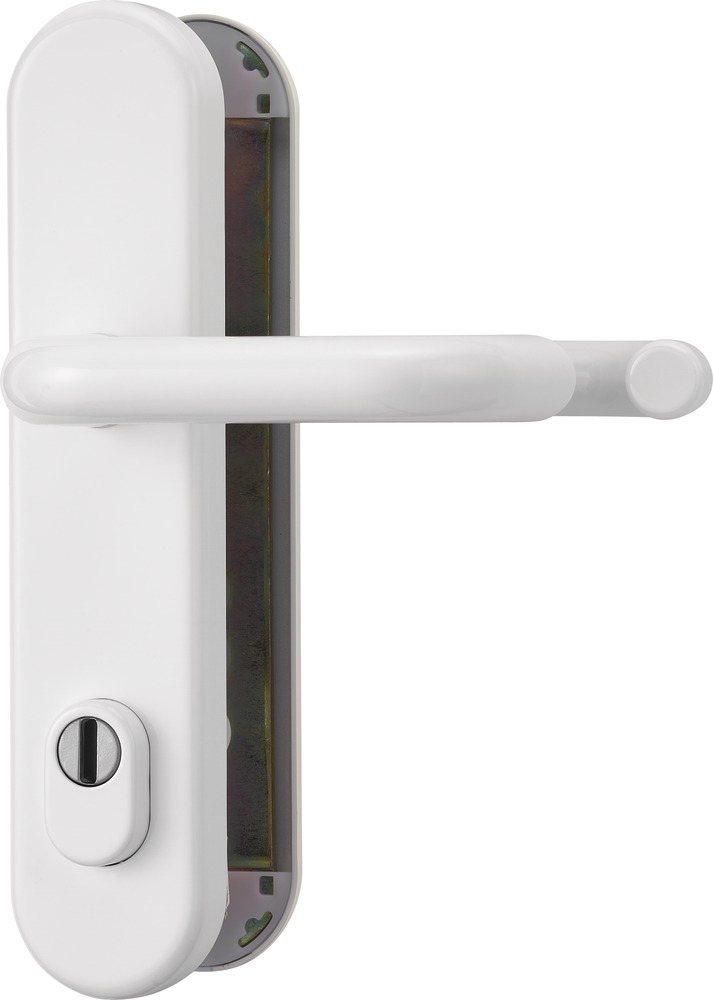

Door Fitting HLZS814 W b. Dr. EK
Art. no. 12238
Version: Beidseitig Drücker rund
Level: 8
Door Fitting HLZS814 W SB
Art. no. 12240
Version: Wechselgarnitur rund
Level: 8

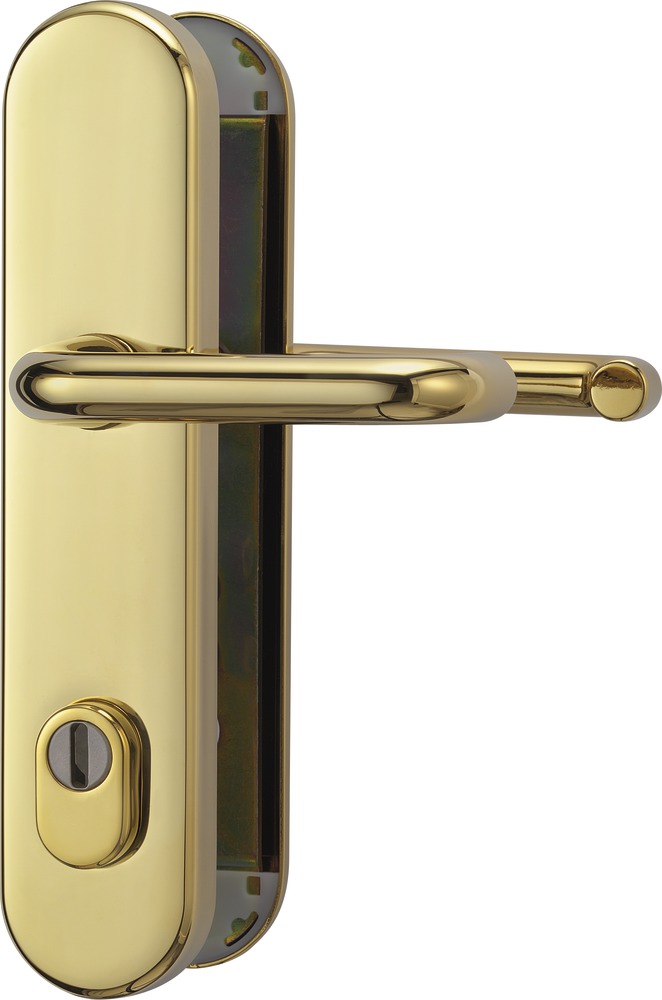

Door Fitting HLZS814 MS b. Dr. EK
Art. no. 12249
Version: Beidseitig Drücker rund
Level: 8
Door Fitting KLZS714 F1 EK
Art. no. 37402
Version: Wechselgarnitur rund
Level: 8

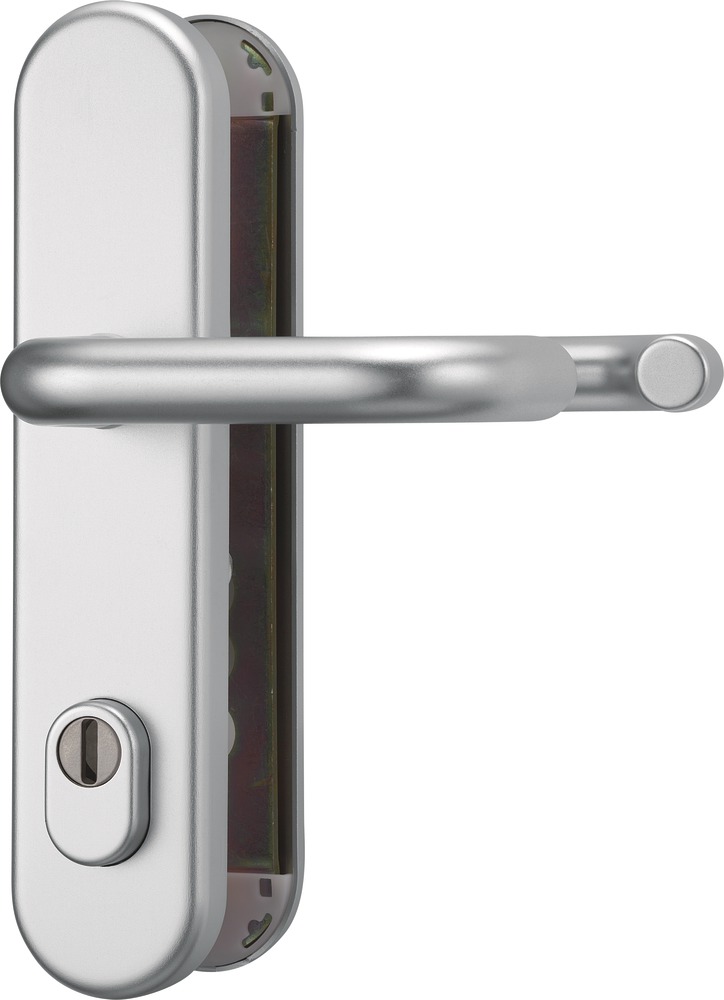

Door Fitting HLZS814 F1 b. Dr. EK
Art. no. 37629
Version: Beidseitig Drücker rund
Level: 8

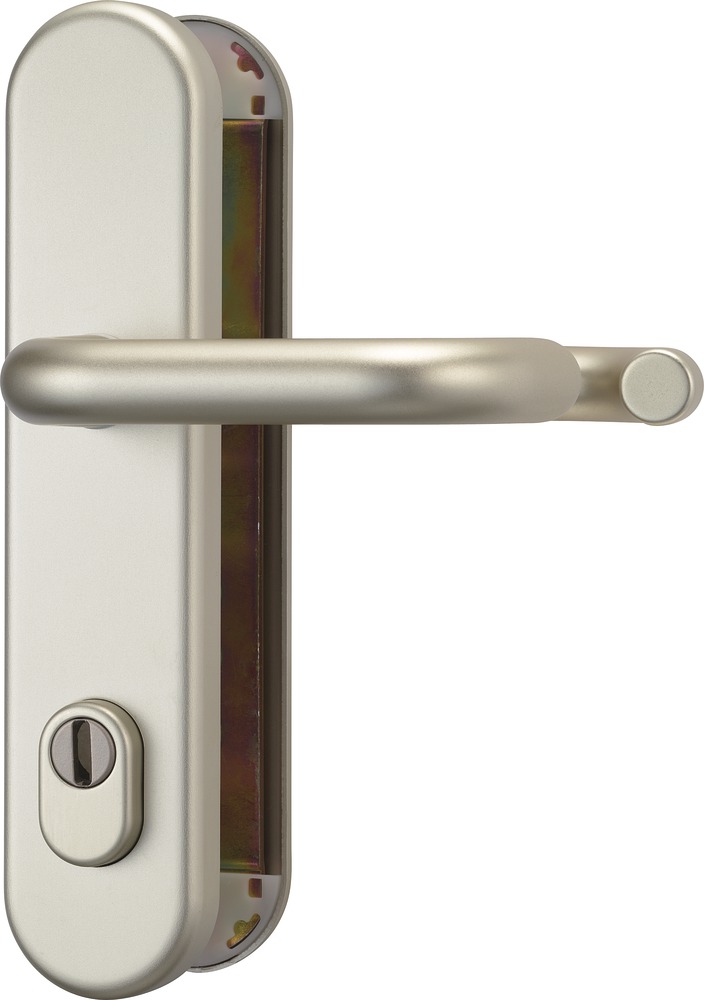

Door Fitting HLZS814 F2 b. Dr. EK
Art. no. 37630
Version: Beidseitig Drücker rund
Level: 8
Door Fitting KLZS714 ER SB
Art. no. 12228
Version: Wechselgarnitur rund
Level: 8
Door Fitting KLZS714 ER b. Dr. EK
Art. no. 12231
Version: Beidseitig Drücker rund
Level: 8
Door Fitting KLZS714 W EK
Art. no. 12235
Version: Wechselgarnitur rund
Level: 8
Door Fitting KLZS714 W b. Dr. EK
Art. no. 12237
Version: Beidseitig Drücker rund
Level: 8
Door Fitting KLZS714 W SB
Art. no. 12239
Version: Wechselgarnitur rund
Level: 8
Door Fitting KLZS 714
Art. no. 12243
Version: Wechselgarnitur rund
Level: 8
Door Fitting KLZS714 MS SB
Art. no. 12244
Version: Wechselgarnitur rund
Level: 8
Door Fitting KLZS714 MS b. Dr. EK
Art. no. 12247
Version: Beidseitig Drücker rund
Level: 8
Door Fitting KLZS714 F2 EK
Art. no. 37403
Version: Wechselgarnitur rund
Level: 8
Door Fitting KLZS714 F1 b. Dr. EK
Art. no. 37631
Version: Beidseitig Drücker rund
Level: 8
Door Fitting KLZS714 F2 b. Dr. EK
Art. no. 37632
Version: Beidseitig Drücker rund
Level: 8

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
