Level 8 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security Leverage attack resistant - the most common break-in method Drill attack resistant Leverage attack resistant (withstands centered pulling force in excess of 1.5 tons) Provides pulling protection to door cylinders Distance between center of door cylinder and center of thumb turn or handle Distance between center of door cylinder and center of thumb turn or handle Tested and approved product German development and production
DIN certified
|||

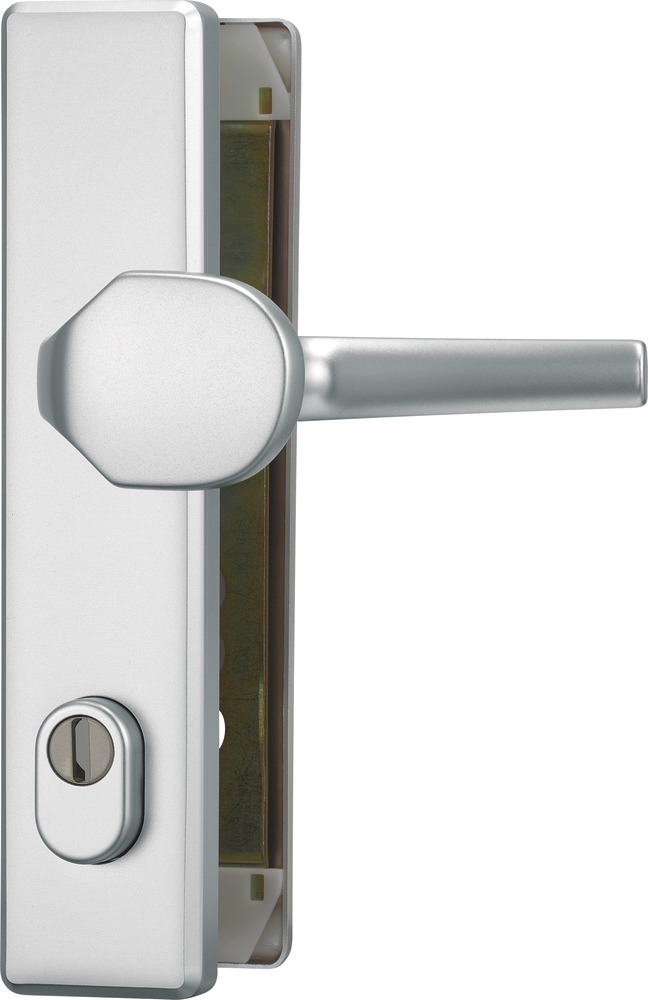

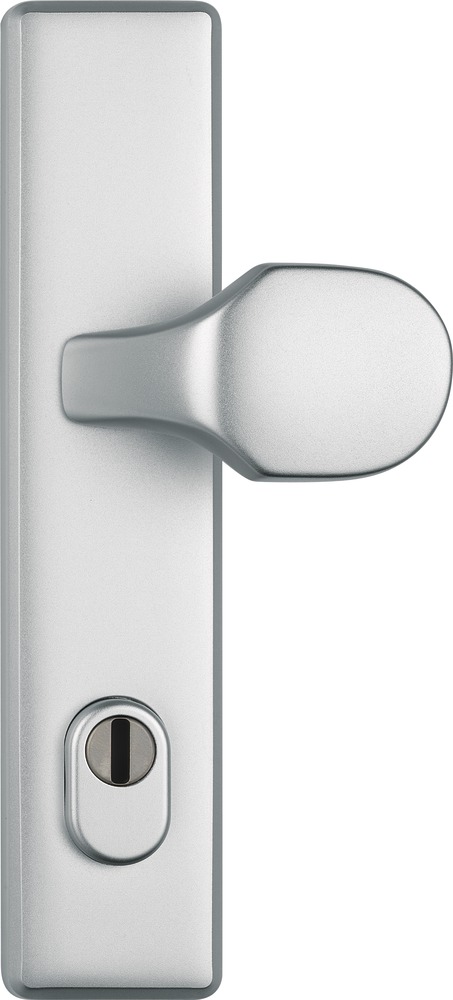

Door Fitting HLZS814 F1 EK

Door fitting with steel cylinder protection - square

Technology:

  • Certified according to DIN EN 1906 SK 2 and DIN 18 257 ES 1 ZA, TÜV tested, VdS approved
  • Maximum resistance due to the layer construction: several bottom plates, with a total of 13.5 mm thickness, for maximum protection
  • High impact resistance: extra long steel cams, complete with tempered special screws (3 x M6)
  • An additional steel inset provides extra strong leverage/tear-off resistance
  • Integrated pulling protection with cylinder cover plus freely rotating special steel disc
  • Grip plate adjustable to DIN left and right doors

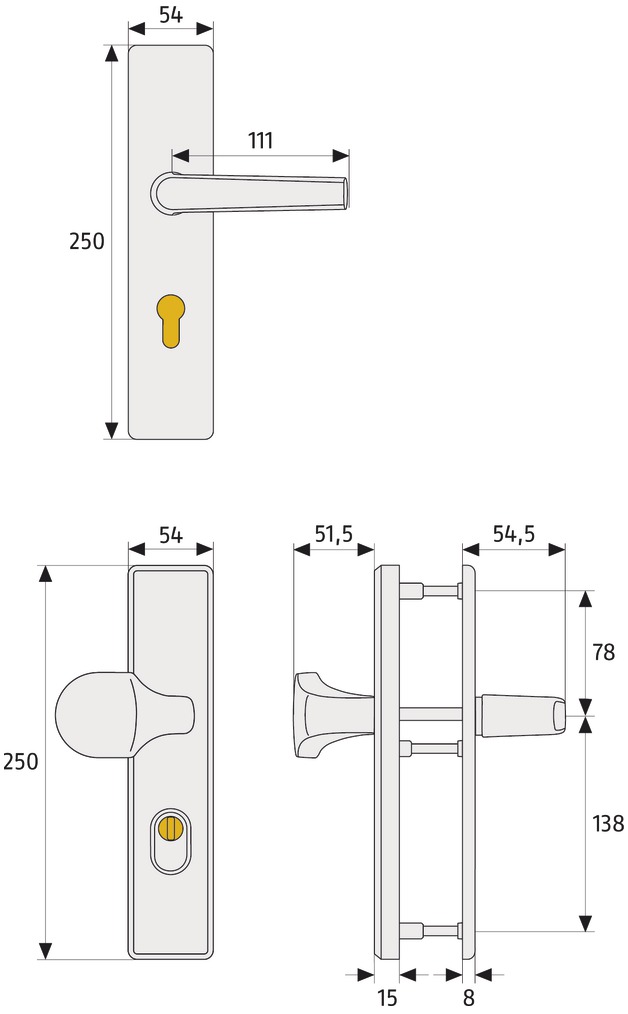

  • HLZS: spacing: 92 mm, square bolt: 10 mm
  • KLZS: spacing: 72 mm, square bolt: 8 mm

Operation and use:

  • For main entrance doors (HLZS) and apartment doors (KLZS)
  • Suitable for rebated and flush doors, left and right opening
  • Grip plate outside, handle inside

Variants:

  • Finishes: F1 (alu anodized), F2 (silver anodized), F3 (anodized brass), F4 (anodized bronze)
  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 20351
Version: Wechselgarnitur
Cylinder protusion [mm]: 10-18
Level: 8
Colour: F1

Variants:

Door Fitting HLZS814 F1 EK
Art. no. 20351
Version: Wechselgarnitur
Level: 8

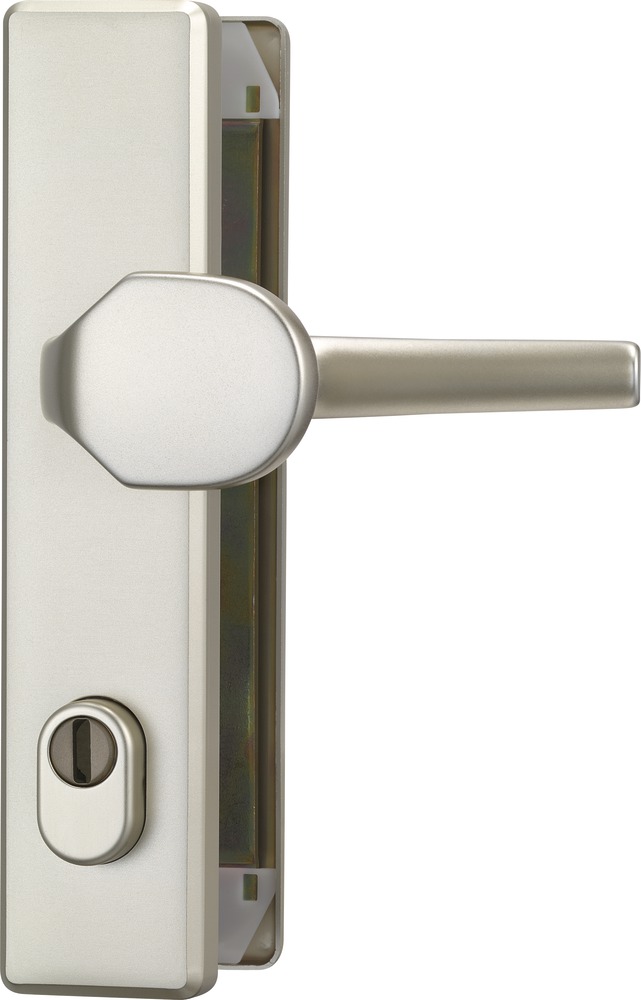

Door Fitting HLZS814 F2 EK
Art. no. 08418
Version: Wechselgarnitur
Level: 8

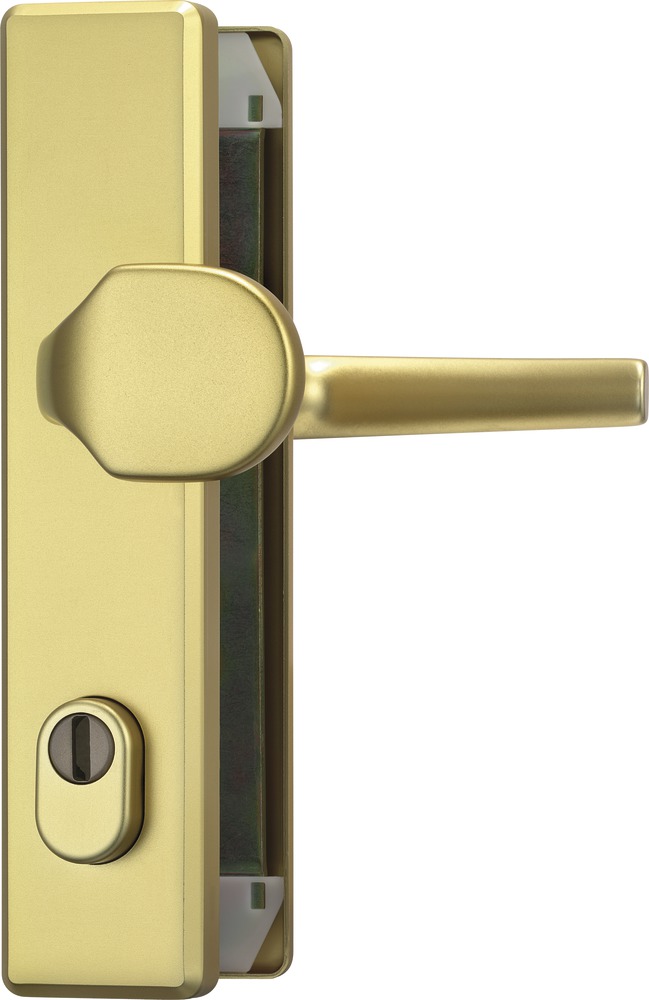

Door Fitting HLZS814 F3 EK
Art. no. 08416
Version: Wechselgarnitur
Level: 8
Door Fitting HLZS814 F2 b. Dr. EK
Art. no. 08412
Version: Beidseitig Drücker
Level: 8

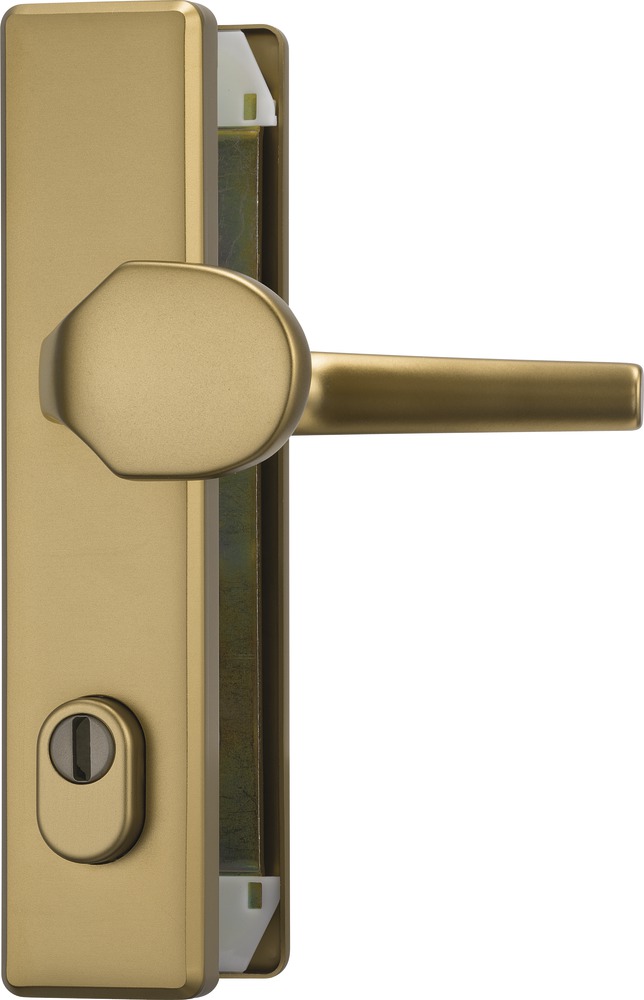

Door Fitting HLZS814 F4 EK
Art. no. 08415
Version: Wechselgarnitur
Level: 8
Door Fitting HLZS814 F2 SB
Art. no. 08417
Version: Wechselgarnitur
Level: 8

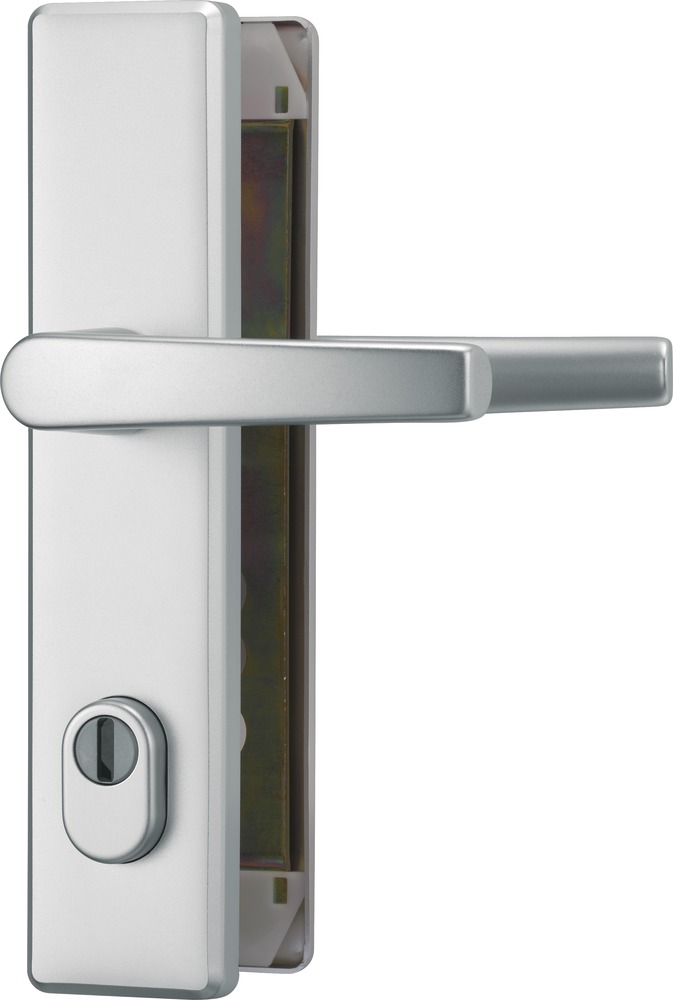

Door Fitting HLZS814 F1 b. Dr. EK
Art. no. 20736
Version: Beidseitig Drücker
Level: 8

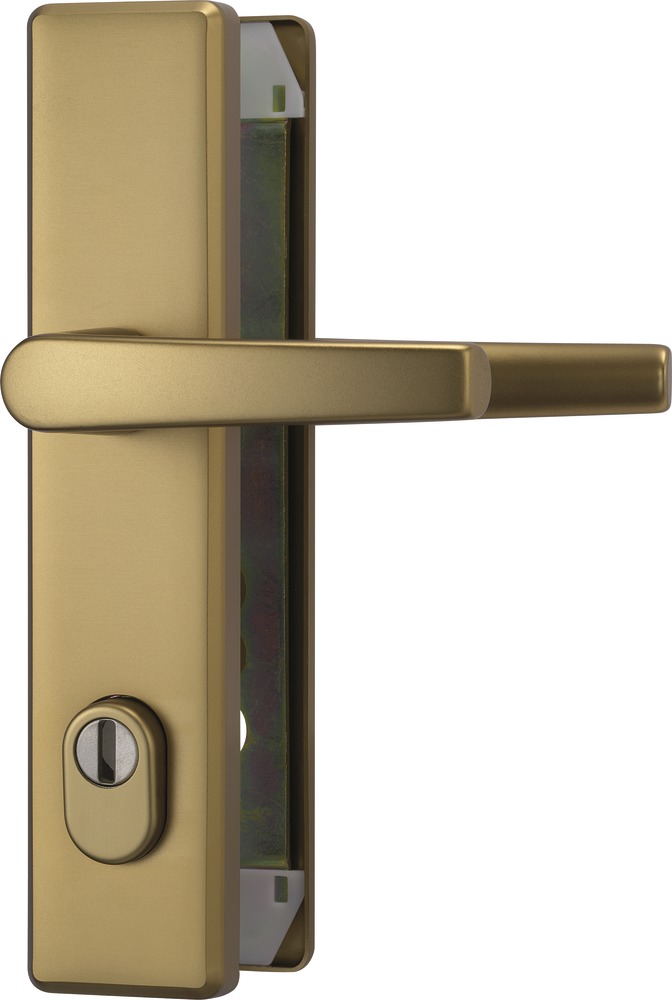

Door Fitting HLZS814 F4 b. Dr. EK
Art. no. 08410
Version: Beidseitig Drücker
Level: 8

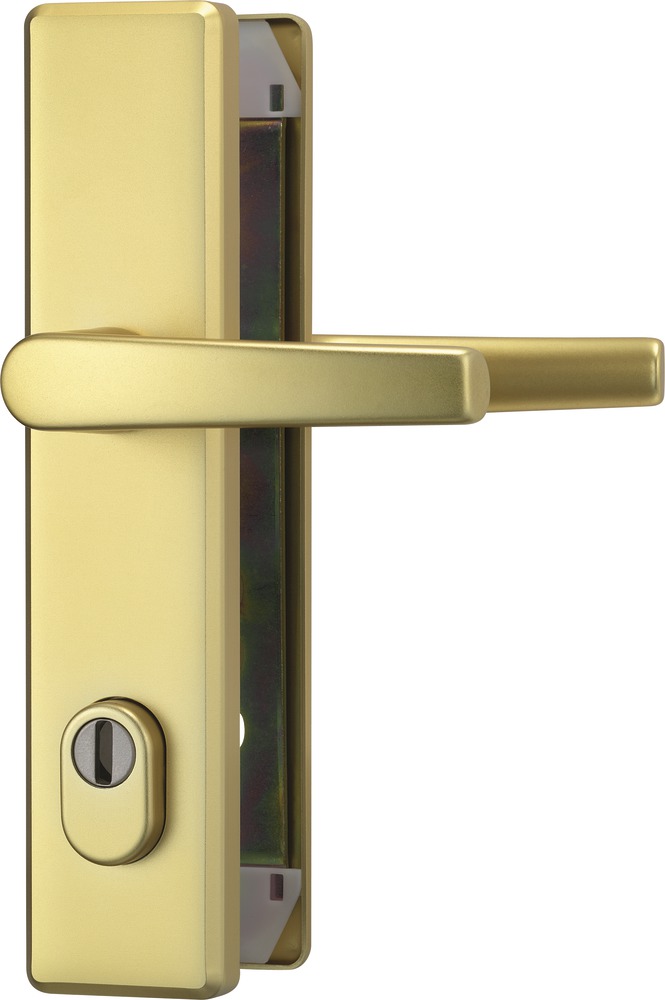

Door Fitting HLZS814 F3 b. Dr. EK
Art. no. 08411
Version: Beidseitig Drücker
Level: 8
Door Fitting KLZS714 F4 b. Dr. EK
Art. no. 08420
Version: Beidseitig Drücker
Level: 8
Door Fitting KLZS714 F4 EK
Art. no. 08425
Version: Wechselgarnitur
Level: 8
Door Fitting KLZS714 F3 EK
Art. no. 08426
Version: Wechselgarnitur
Level: 8
Door Fitting KLZS714 F2 SB
Art. no. 08427
Version: Wechselgarnitur
Level: 8
Door Fitting KLZS714 F2 EK
Art. no. 08428
Version: Wechselgarnitur
Level: 8
Door Fitting KLZS714 F1 EK
Art. no. 20354
Version: Wechselgarnitur
Level: 8
Door Fitting KLZS714 F3 b. Dr. EK
Art. no. 08421
Version: Beidseitig Drücker
Level: 8
Door Fitting KLZS714 F2 b. Dr. EK
Art. no. 08422
Version: Beidseitig Drücker
Level: 8
Door Fitting KLZS714 F1 b. Dr. EK
Art. no. 20731
Version: Beidseitig Drücker
Level: 8

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
