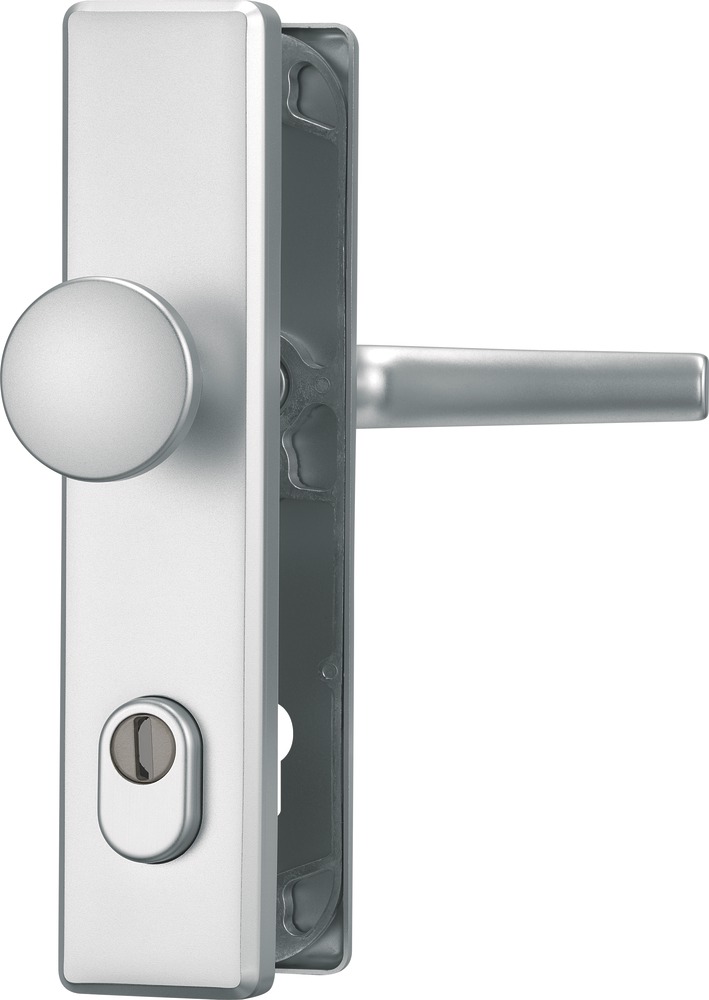

Door Fitting HLS214 ZS F1 EK

Standard door fitting with cylinder protection

Technology:

  • According to DIN EN 1906 SK 1 and DIN 18 257 ES 0
  • Integrated pulling protection with cylinder cover plus freely rotating special steel disc
  • Increased leverage resistance: solid cams plus inner screws
  • Proven layered construction: hardened steel bottom plate, plus sturdy cover plate
  • Just one version is necessary to cover cylinder protrusions from 10 - 18 mm

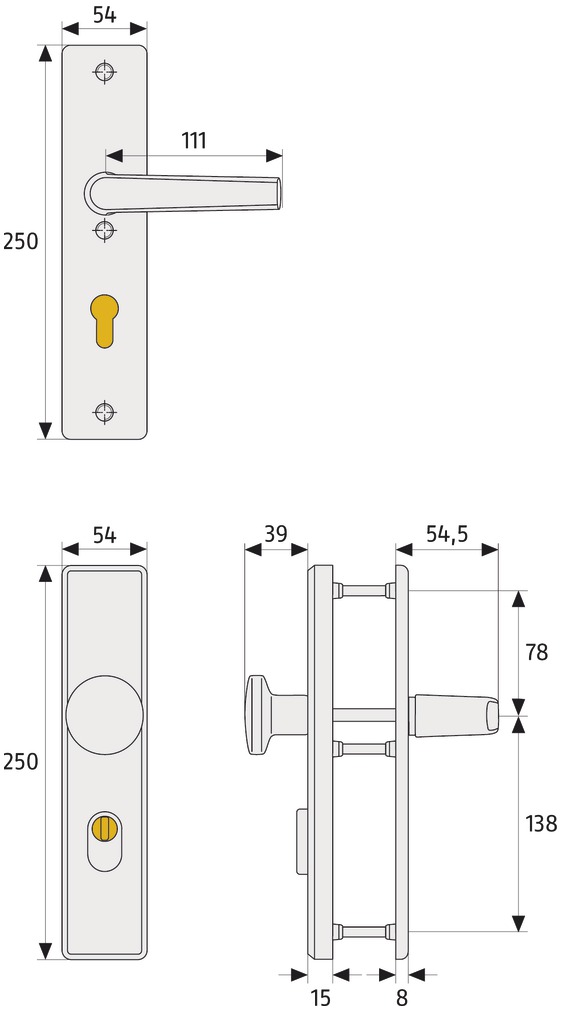

  • Spacing: 92 mm, square bolt: 10 mm

Operation and use:

  • For main entrance doors
  • Grip plate outside, handle inside

Variants:

  • Finishes: F1 (alu anodized), F2 (silver anodized)
  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 21132
Version: Wechselgarnitur
Cylinder protusion [mm]: 10-18
Level: 6
Colour: F1

Variants:

Door Fitting HLS214 ZS F1 EK
Art. no. 21132
Version: Wechselgarnitur
Level: 6

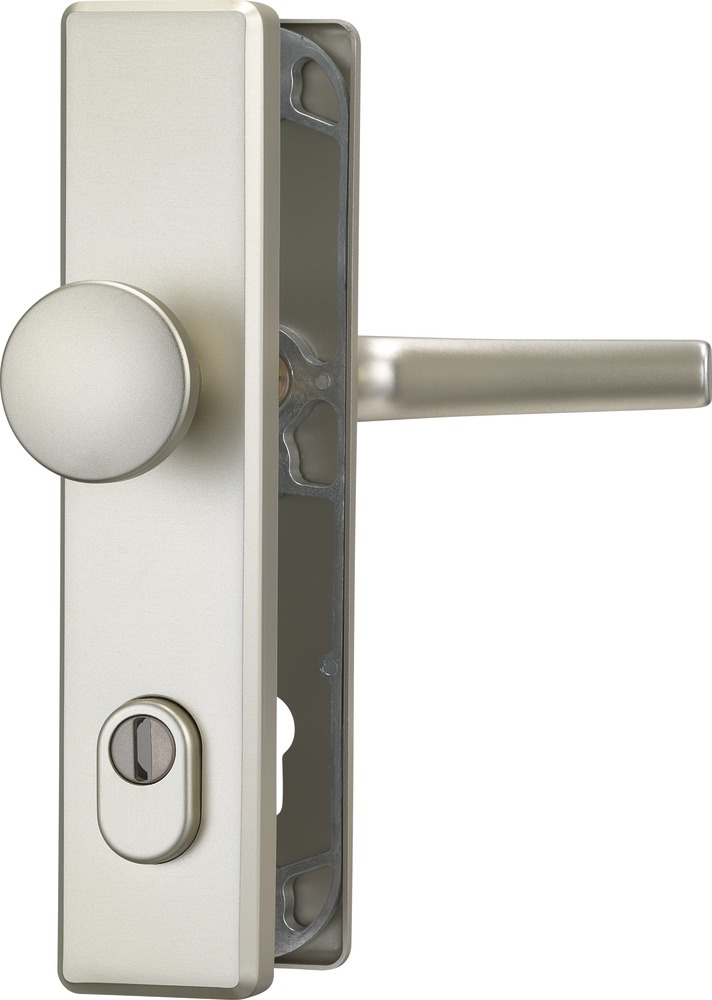

Door Fitting HLS214 ZS F2 EK
Art. no. 20897
Version: Wechselgarnitur
Level: 6

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
