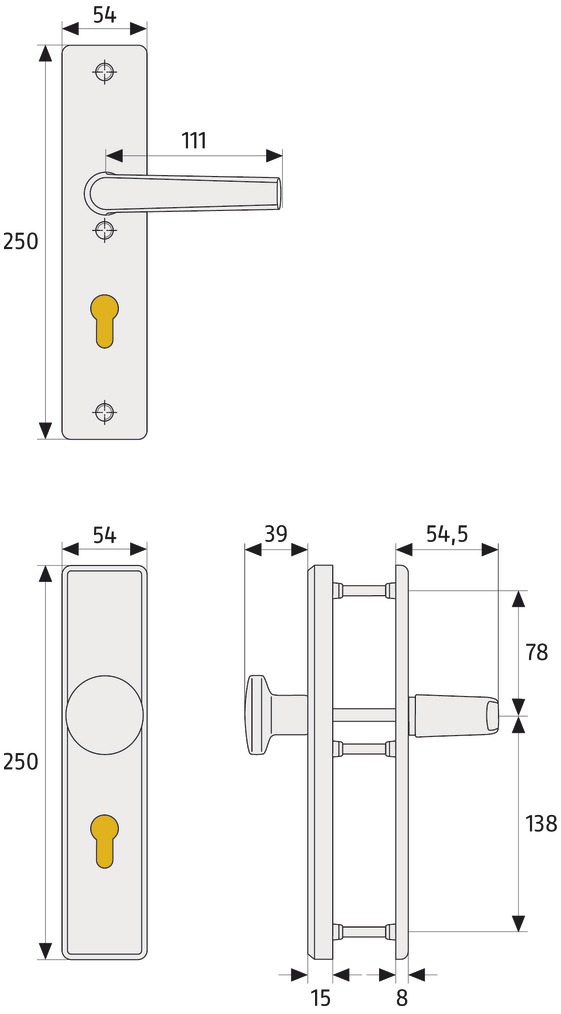

Dorr fitting HLN414 F1 Technical drawing
Level 6 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security German development and production Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side Distance between center of door cylinder and center of thumb turn or handle
|||

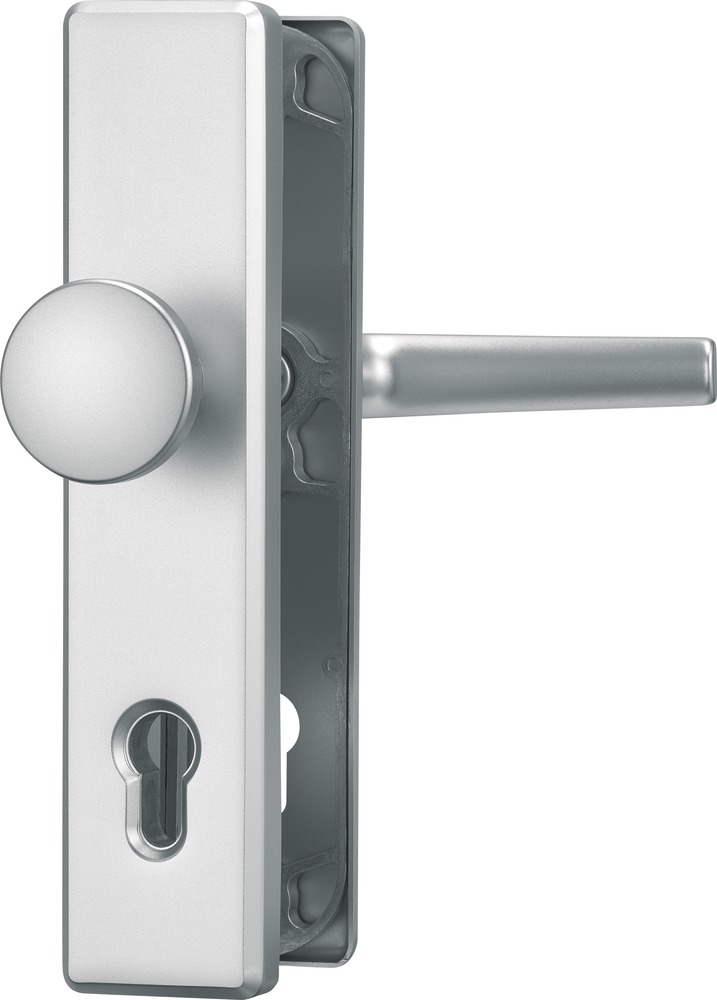

Door Fitting HLS214 F1 EK

Standard door fitting

Technology:

  • According to DIN EN 1906 SK 1 and DIN 18 257 ES 0
  • Increased leverage resistance: solid cams plus inner screws
  • Proven layered construction: hardened steel bottom plate, plus sturdy cover plate
  • Spacing: 92 mm, square bolt: 10 mm

Operation and use:

  • For main entrance doors
  • Grip plate outside, handle inside

Variants:

  • Finishes: F1 (alu anodized), F2 (silver anodized), F3 (anodized brass), F4 (anodized bronze), F9 (stainless steel look)
  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 21034
Version: Wechselgarnitur
Cylinder protusion [mm]: 15
Level: 5
Colour: F1

Variants:

Door Fitting HLS214 F1 EK
Art. no. 21034
Version: Wechselgarnitur
Level: 5
Door Fitting HLS214 F2 EK
Art. no. 08306
Version: Wechselgarnitur
Level: 5
Door Fitting HLS214 F3 EK
Art. no. 08304
Version: Wechselgarnitur
Level: 5
Door Fitting HLS214 F4 EK
Art. no. 08302
Version: Wechselgarnitur
Level: 5
Door Fitting HLS214 F2 b. Dr. EK
Art. no. 08305
Version: Beidseitig Drücker
Level: 5
Door Fitting HLS214 F1 b. Dr. EK
Art. no. 21035
Version: Beidseitig Drücker
Level: 5
Door Fitting HLS214 F9 EK
Art. no. 31698
Version: Wechselgarnitur
Level: 5
Door Fitting HLS214 F4 b. Dr. EK
Art. no. 08301
Version: Beidseitig Drücker
Level: 5
Door Fitting HLS214 F3 b. Dr. EK
Art. no. 08303
Version: Beidseitig Drücker
Level: 5
Door Fitting HLS214 F9 b. Dr. EK
Art. no. 31699
Version: Beidseitig Drücker
Level: 5
