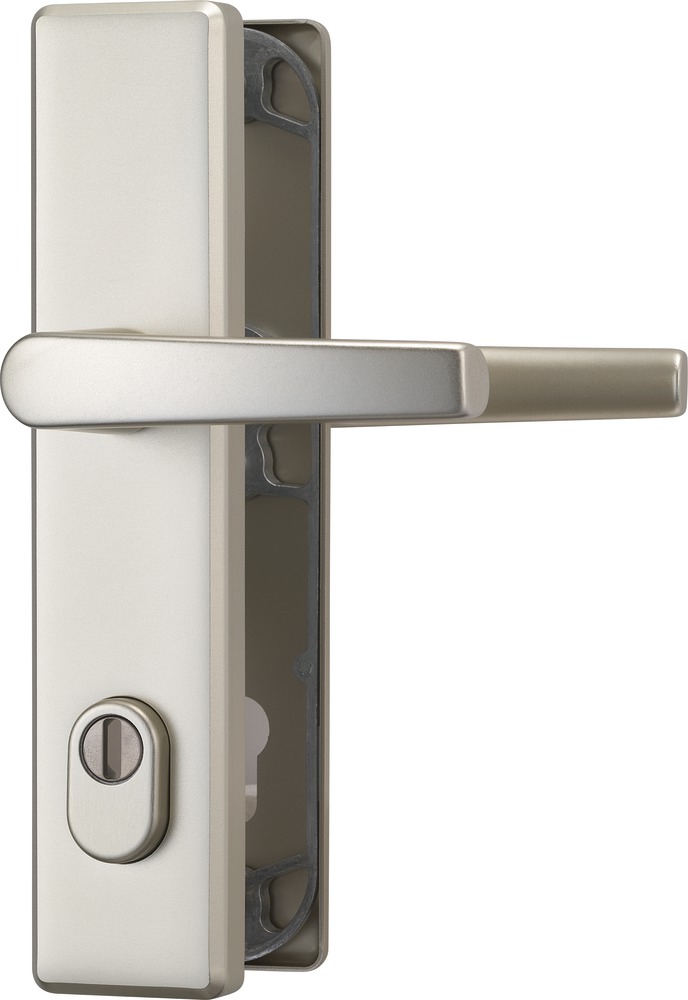

Door Fitting HLN414 ZS F2 SB

Standard door fitting with cylinder protection

Technology:

  • According to DIN EN 1906 SK 1 and DIN 18 257 ES 0
  • Integrated pulling protection with cylinder cover plus freely rotating special steel disc
  • Increased leverage resistance: solid cams plus inner screws
  • Proven layered construction: hardened steel bottom plate, plus sturdy cover plate
  • Just one version is necessary to cover cylinder protrusions from 10-18 mm

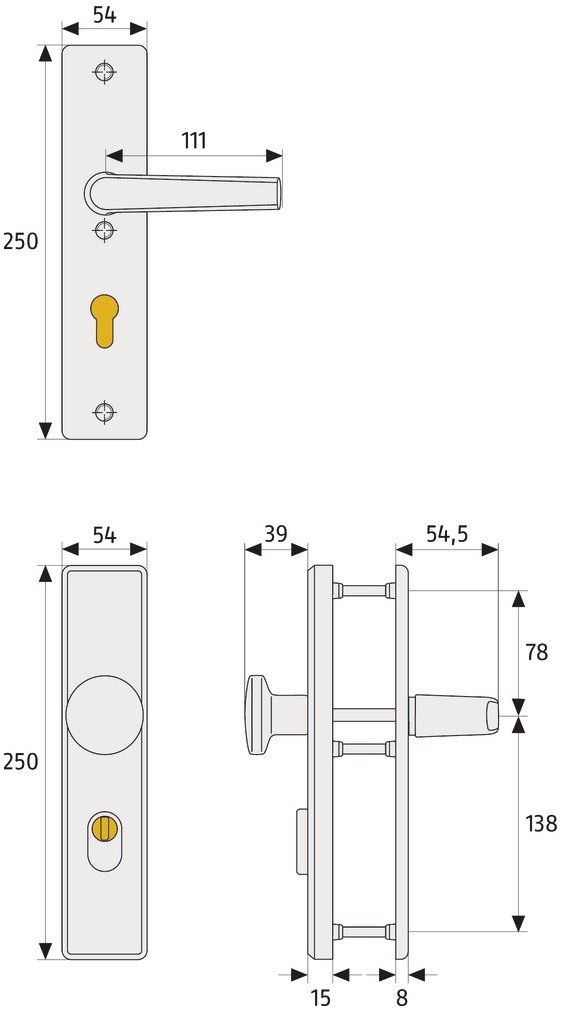

  • HLN ZS: Spacing: 92 mm, square bolt: 10 mm
  • KLN ZS: Spacing: 72 mm, square bolt: 8 mm

Operation and use:

  • For main entrance doors (HLN) and apartment doors (KLN)

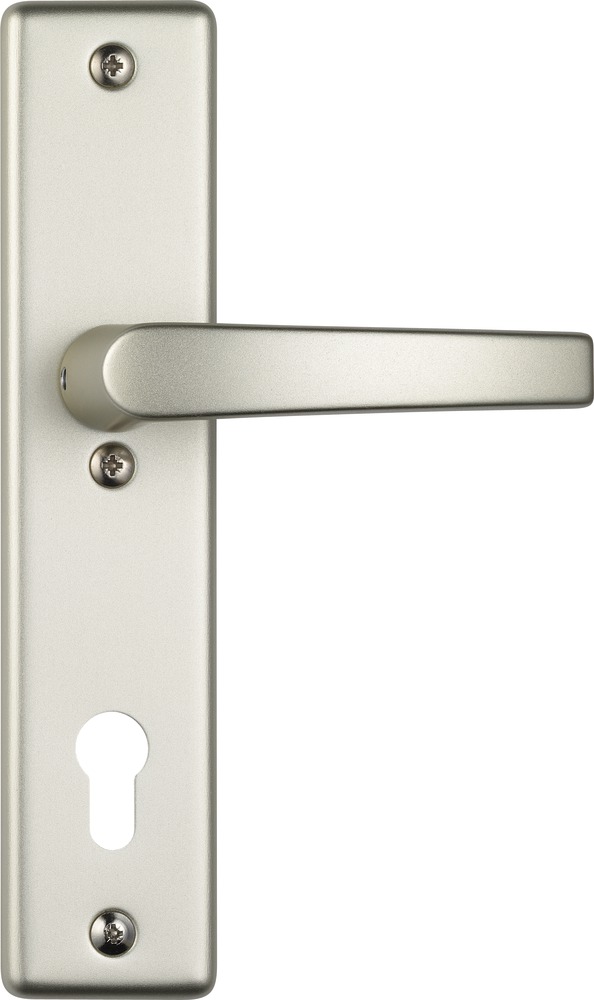

  • Grip plate outside, handle inside

Variants:

  • Finish: F2 (silver anodized)
  • Alternatively available as a handle/handle set

Technical data:

Art. no.: 20369
Version: Wechselgarnitur
Cylinder protusion [mm]: 10-18
Level: 6
Colour: F2

Variants:

Door Fitting HLN414 ZS F2 SB
Art. no. 20369
Version: Wechselgarnitur
Level: 6
Door Fitting HLN414 ZS F2 b. Dr. SB
Art. no. 20908
Version: Beidseitig Drücker
Level: 6
Door Fitting KLN314 ZS F2 SB
Art. no. 20367
Version: Wechselgarnitur
Level: 6
Door Fitting KLN314 ZS F2 b. Dr. SB
Art. no. 20894
Version: Beidseitig Drücker
Level: 6

Downloads:

Door fittings

Door fittings

Any door that is not professionally secured can be immediately identified by burglars as an easy target: The cylinder protrudes a long way and often the fittings can simply be unscrewed. This makes breaking in easy, and not just for professionals.An ABUS security door fitting protects both mortise locks and door cylinders against being broken or pulled off. Look for the DIN, TÜV and VdS seals of approval. They are proof of maximum ...
