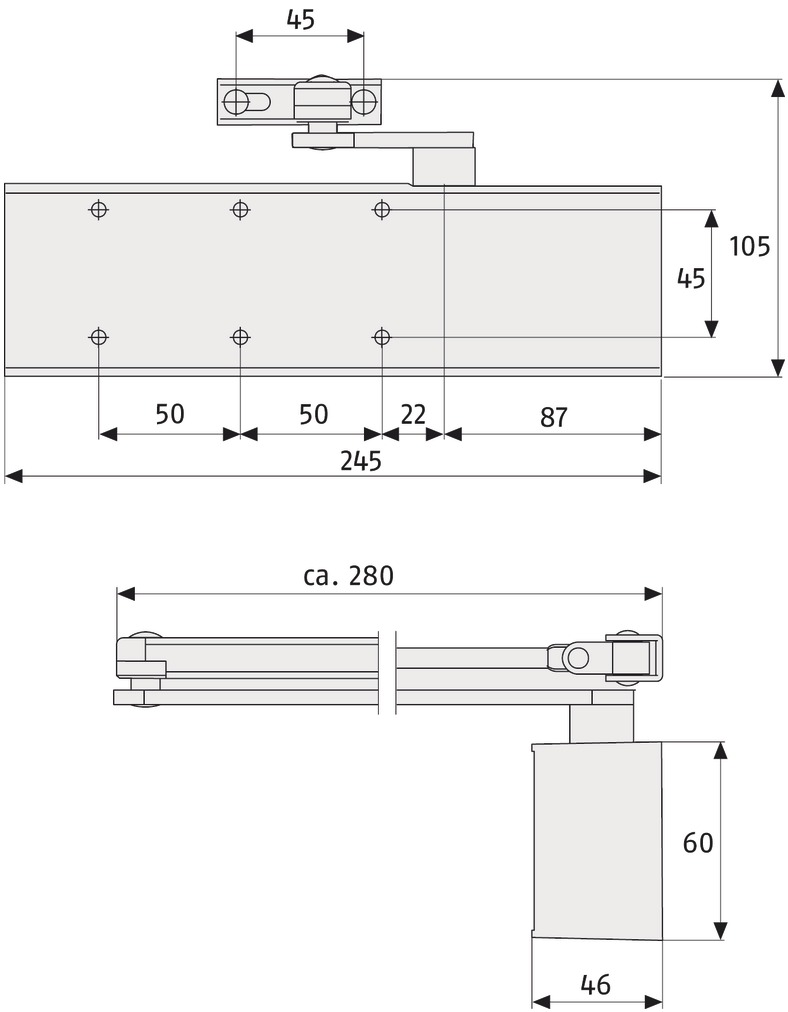

Door closer 9603 Door closer 9603 Technical drawing
Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side
|||

Door Closer 9603 V S

Door closer

Technology:

  • Tested according to DIN EN 1154, closing force EN 3 - 6
  • Closing speed can be adjusted using the valve regulator
  • 2 closing ranges: 180° - 15°; 15° - 0°
  • End latch adjustable by arm
  • Back check can be adjusted using the valve regulator
  • Closing delay can be adjusted using the valve regulator
  • Dimensions: 245 x 46 x 60 mm

Operation and use:

  • For main entrance doors and apartment doors
  • Suitable for door widths up to 1400 mm
  • Can be used DIN R / DIN L
  • Suitable for fire exit doors in Germany, DIN EN1154A

Variants:

  • Finishes: silver, white
  • Fitting plate available optionally

Technical data:

Art. no.: 30083
Version: with standard arm
Colour: silver

Variants:

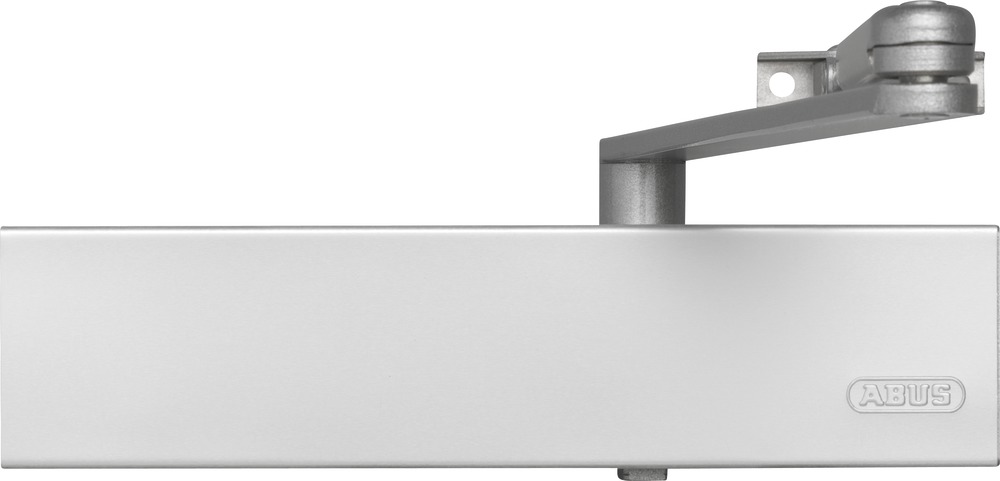

Door Closer 9603 V S
Art. no. 30083
Version: with standard arm
Level:

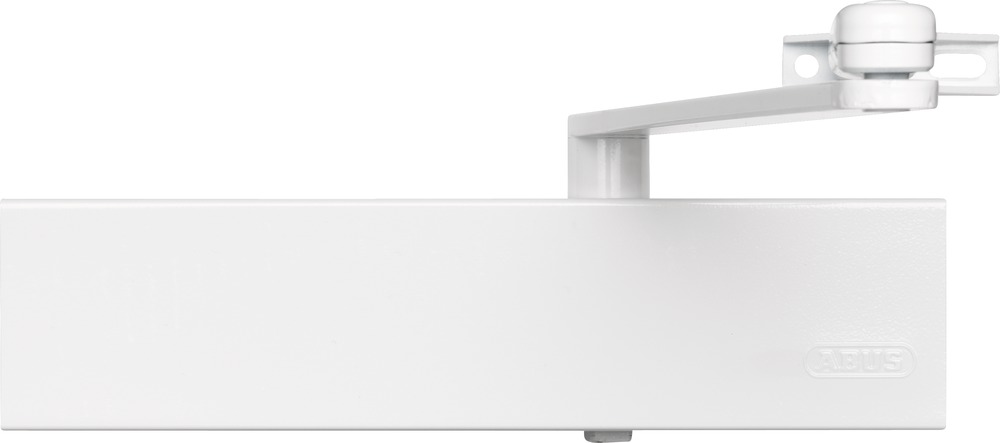

Door Closer 9603 V W
Art. no. 30082
Version: with standard arm
Level:
