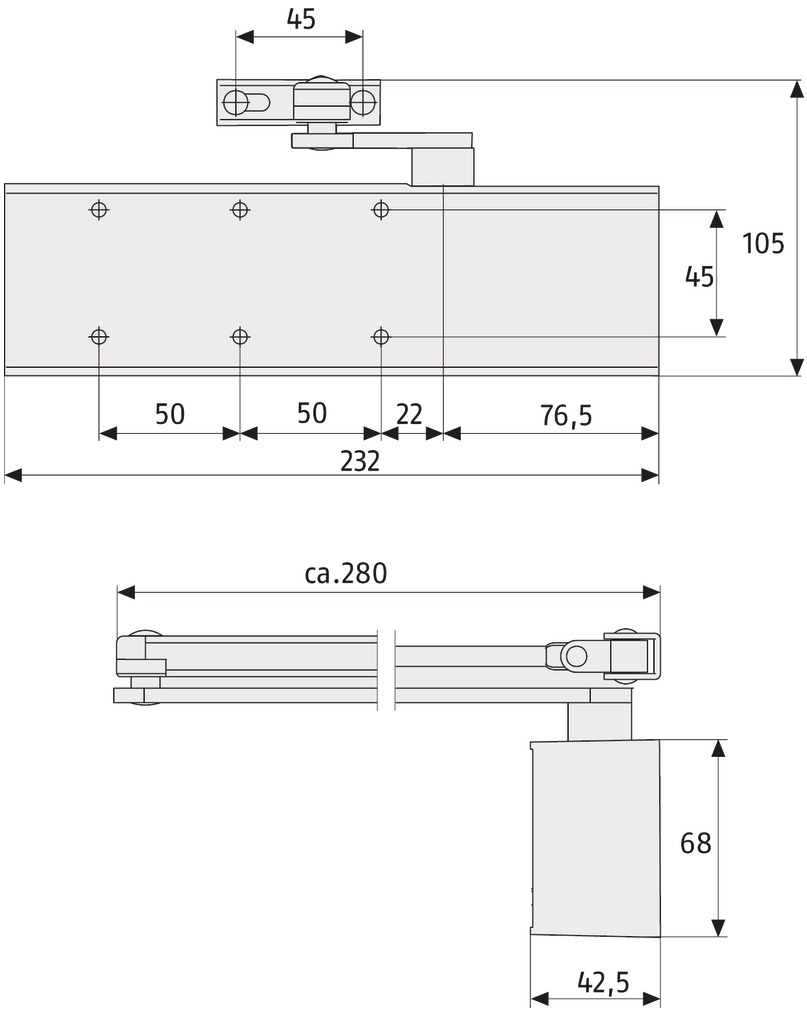

Door closer 8603 Door closer 8603 Door closer 8603 Technical drawing
Mortice locks for doors with hinges on the right side Mortice locks for doors with hinges on the left side
|||

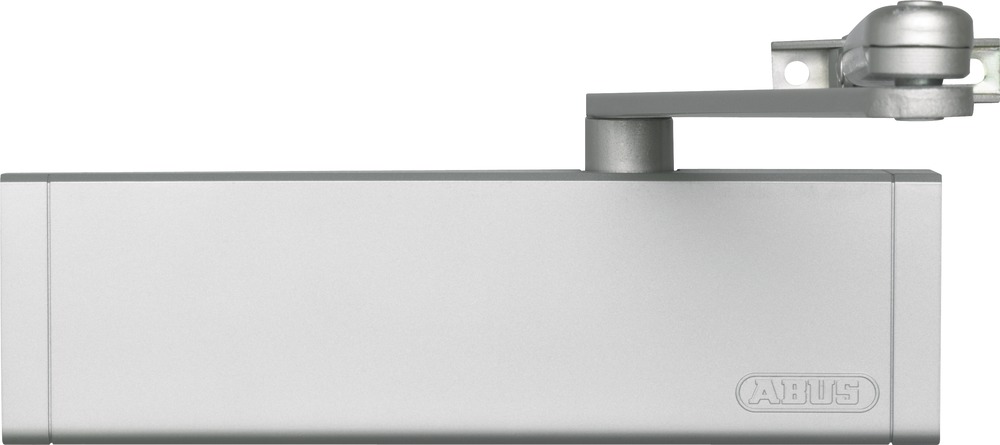

Door Closer 8603 V silver

Door closer

Technology:

  • Tested according to DIN EN 1154, closing force EN 2 - 4
  • Closing speed can be adjusted using the valve regulator
  • 2 closing ranges: 180° - 15°; 15° - 0°
  • End latch adjustable by arm
  • Door can be opened up to 180°
  • Dimensions: 232 x 45 x 68 mm

Operation and use:

  • For main entrance doors and apartment doors
  • Suitable for door widths up to 1100 mm
  • Tested according to EN1154
  • Can be used DIN R / DIN L

Variants:

  • Finishes: brown, silver, white
  • Fitting plate available optionally

Technical data:

Art. no.: 10643
Version: with standard arm
Colour: silver

Variants:

Door Closer 8603 V silver
Art. no. 10643
Version: with standard arm
Level:

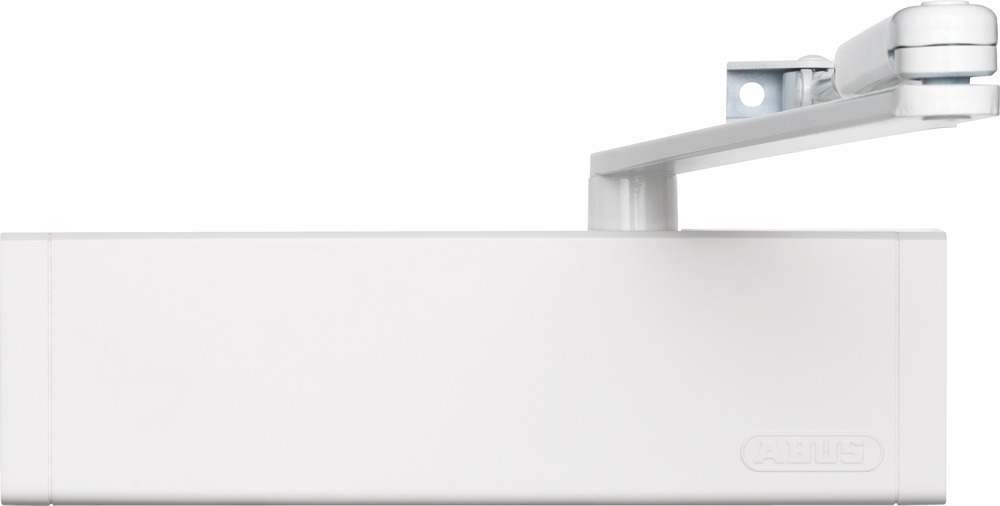

Door Closer 8603 V white
Art. no. 10644
Version: with standard arm
Level:

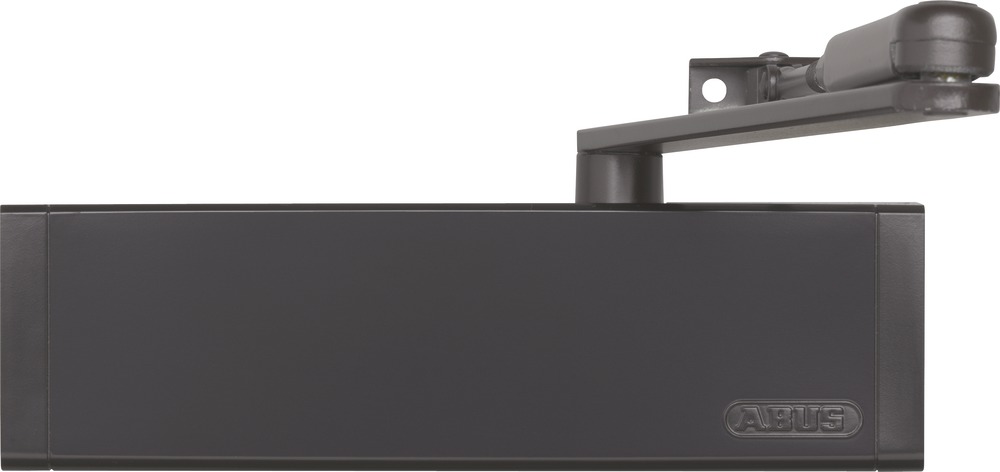

Door Closer 8603 V brown
Art. no. 10645
Version: with standard arm
Level:

Downloads:

Door closers

Door closers

Doors that don't shut, doors that bang, doors that create a draught? Door closer by ABUS fitted to the top of the door will solve the problem. Whether it's in public buildings or your own four walls – the ABUS door closers are a convenient way of shutting doors safely and quietly.Especially with fire doors door closers are important – fire doors must be self-closing to comply with legislation.The top-fitting door closers are easy to install ...
