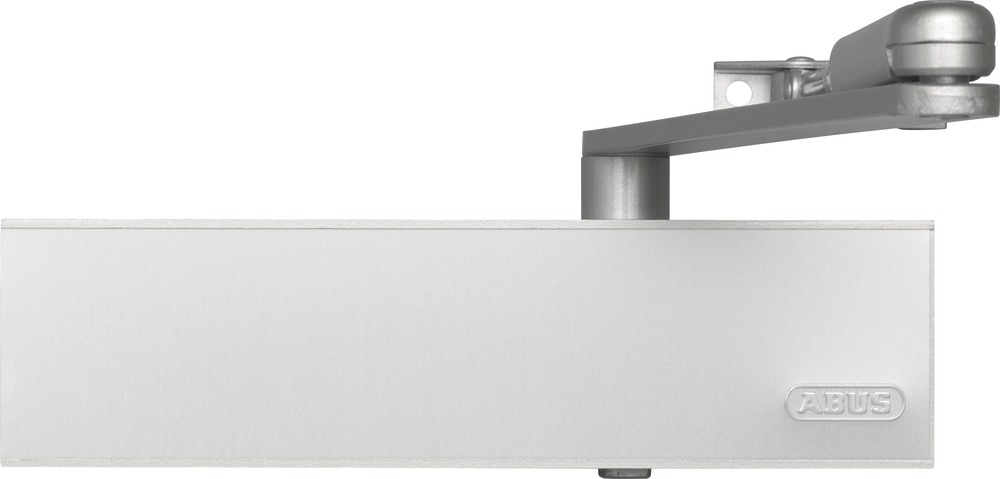

Door Closer 8103 V silver

Door closer

Technology:

  • Tested according to DIN EN 1154 A, closing force EN 2 - 4
  • Closing speed can be adjusted using the valve regulator
  • Closing force can be adjusted individually by screw and hinge of arm
  • Self-regulating opening load to protect against damages
  • 2 closing ranges: 180° - 15°; 15° - 0°
  • End latch adjustable by arm
  • Door can be opened up to 180°

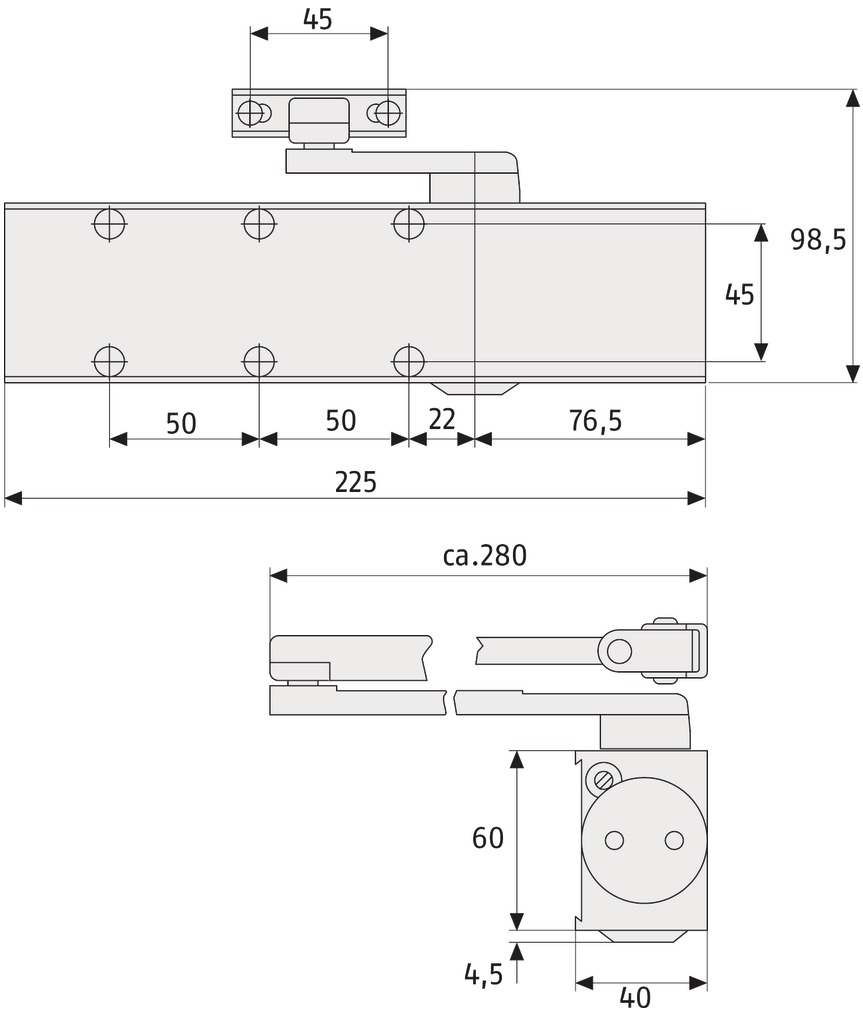

  • Dimensions: 225 x 40 x 60 mm

Operation and use:

  • For main entrance doors and apartment doors
  • Suitable for door widths up to 1100 mm
  • Can be used DIN R / DIN L
  • Suitable for fire exit doors in Germany, DIN EN1154A

Variants:

  • Finishes: brown, silver, white
  • Fitting plate available optionally

Technical data:

Art. no.: 10646
Version: with standard arm
Colour: silver

Variants:

Door Closer 8103 V silver
Art. no. 10646

Version: with standard arm
Level:

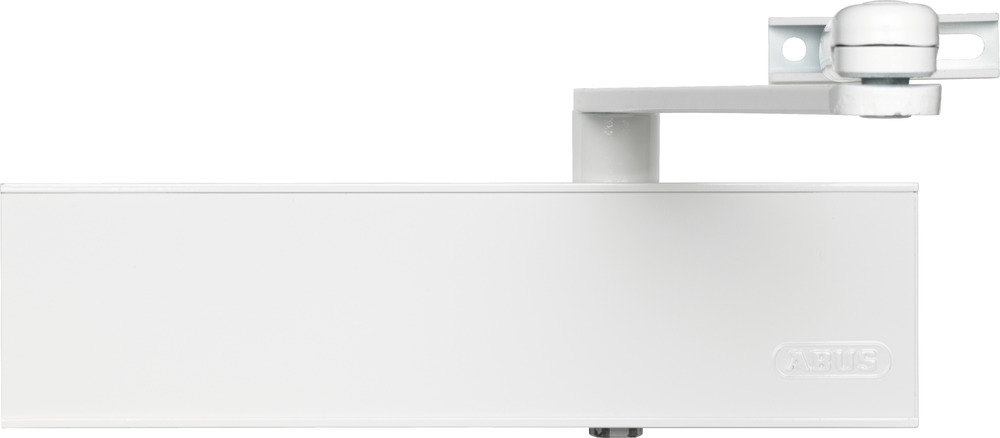

Door Closer 8103 V white
Art. no. 10647

Version: with standard arm
Level:

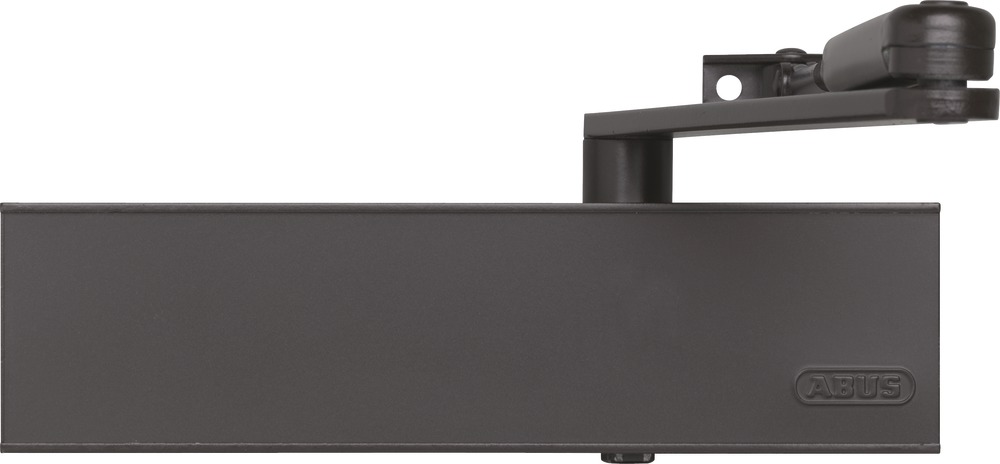

Door Closer 8103 V brown
Art. no. 10648

Version: with standard arm
Level:

Downloads:

Door closers

Doors that don't shut, doors that bang, doors that create a draught? Door closer by ABUS fitted to the top of the door will solve the problem. Whether it's in public buildings or your own four walls – the ABUS door closers are a convenient way of shutting doors safely and quietly.Especially with fire doors door closers are important – fire doors must be self-closing to comply with legislation.The top-fitting door closers are easy to install ...
