Door Closer 7603 S

Door closer

Technology:

  • Closing force individually adjustable, EN 2 - 4
  • Closing speed can be adjusted using the valve regulator
  • 2 closing ranges: 180° - 15°; 15° - 0°
  • Door can be opened up to 180°

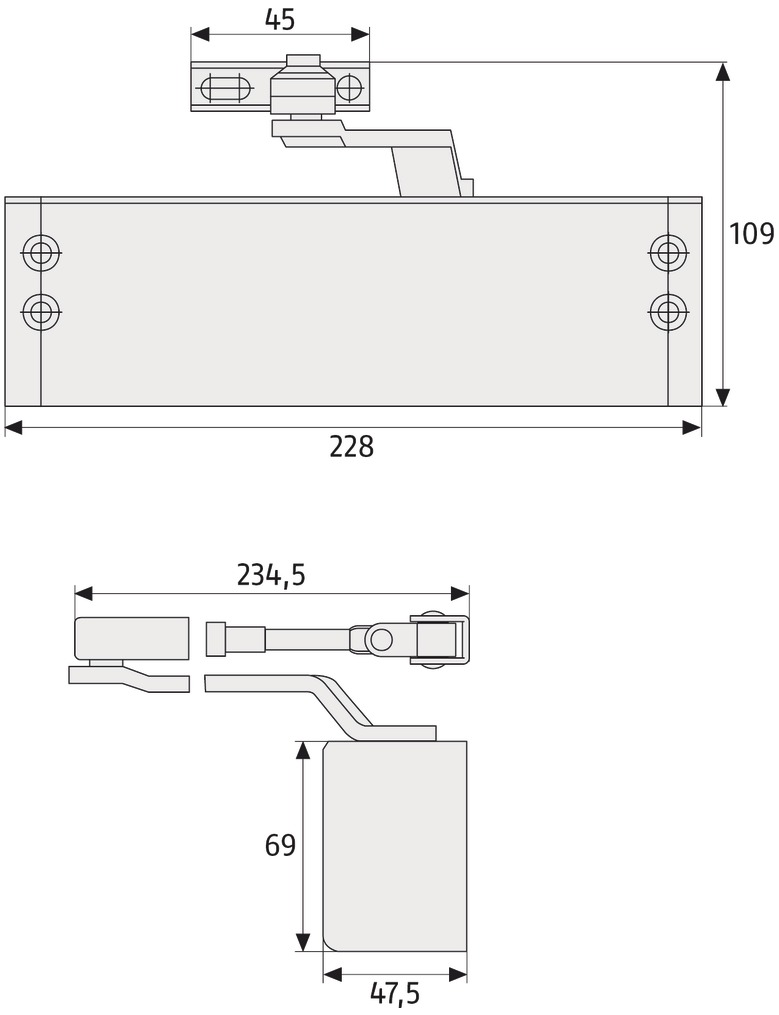

  • Dimensions: 225 x 48 x 67 mm

Operation and use:

  • For main entrance doors and apartment doors
  • Suitable for door widths up to 1100 mm
  • Can be used DIN R / DIN L

Variants:

  • Finishes: brown, silver, white

Technical data:

Art. no.: 21093
Version: with standard arm
Colour: silver

Variants:

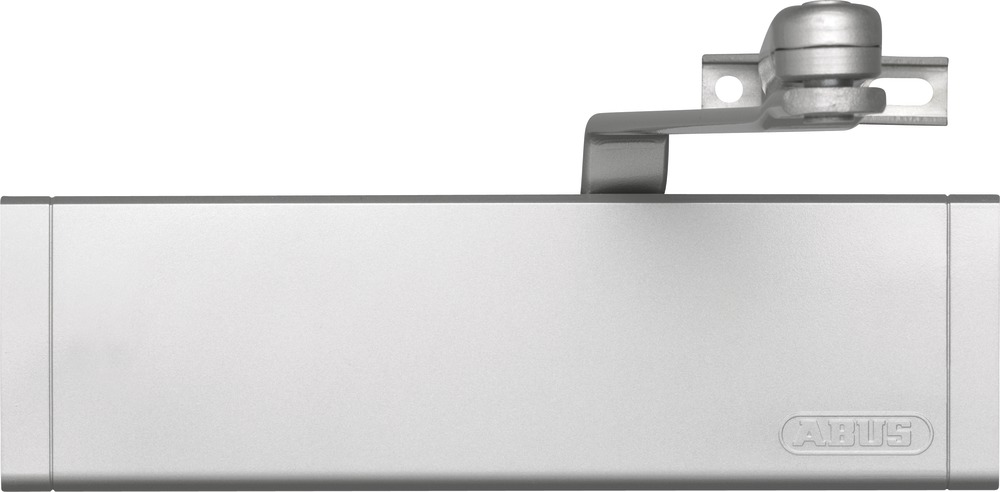

Door Closer 7603 S
Art. no. 21093
Version: with standard arm
Level:

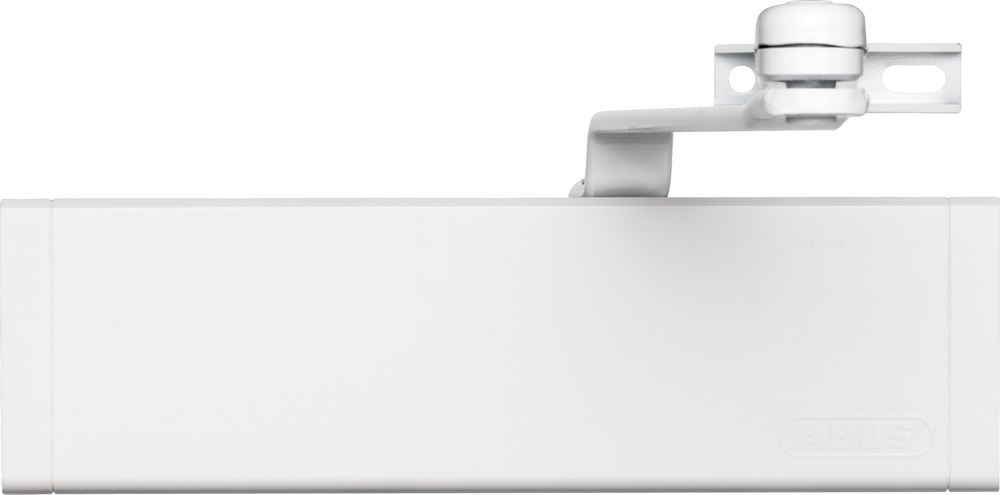

Door Closer 7603 W
Art. no. 21091
Version: with standard arm
Level:

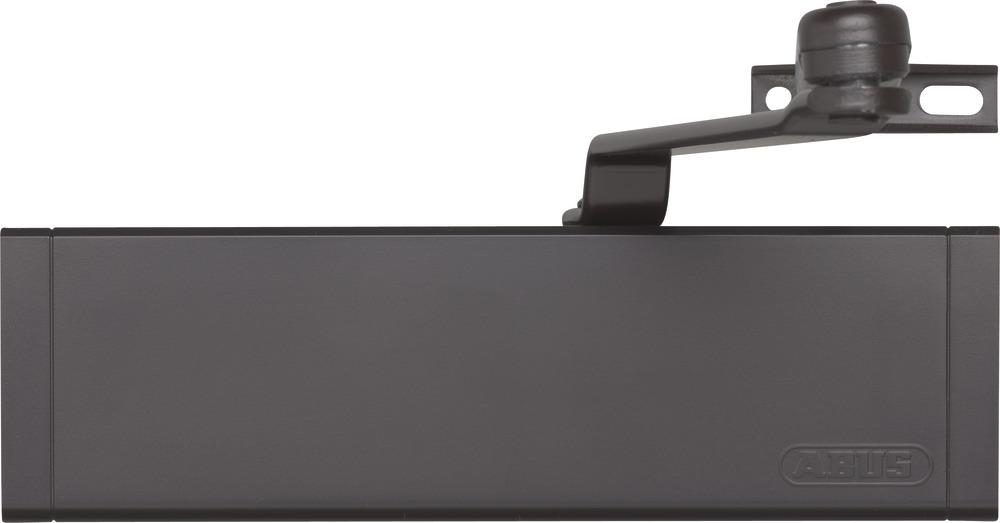

Door Closer 7603 B
Art. no. 21092
Version: with standard arm
Level:
Door Closer 7603 W SB
Art. no. 21094
Version: mit Normalarm
Level:
Door Closer 7603 B SB
Art. no. 21095
Version: mit Normalarm
Level:
Door Closer 7603 S SB
Art. no. 21096
Version: mit Normalarm
Level:

Downloads:

Door closers

Door closers

Doors that don't shut, doors that bang, doors that create a draught? Door closer by ABUS fitted to the top of the door will solve the problem. Whether it's in public buildings or your own four walls – the ABUS door closers are a convenient way of shutting doors safely and quietly.Especially with fire doors door closers are important – fire doors must be self-closing to comply with legislation.The top-fitting door closers are easy to install ...
