Level 9 ABUS GLOBAL PROTECTION STANDARD ® A higher level means more security European development and production Spare keys are only produced on presentation of code card Additional cylinders & padlocks can be supplied keyed alike to this lock Dimple key: no sharp edges and can be inserted either way up Emergency & convenience feature:Outside key opens door even with internal key in place Drill attack resistant
Test Seal of SKG-The Netherlands
|||

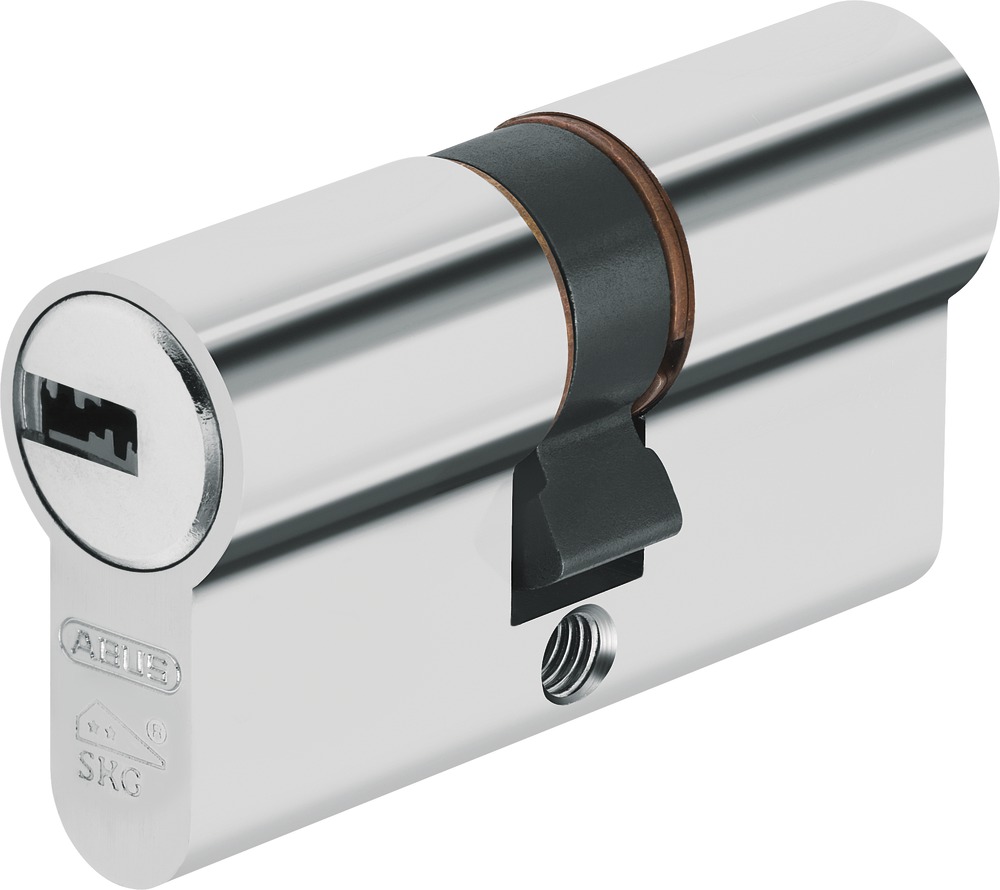

Door Cylinder XP2SN 30/30 vs.

Door cylinder with security card, integrated emergency feature and reversible dimple key

Technology:

  • Door cylinder according to DIN EN 1303 and DIN 18252
  • With security card (protection against unauthorized copying of keys)
  • Integrated emergency feature (the cylinder can be operated from the outside even when a key is already inserted on the inside)
  • Anti-bumping (pat.pend.): Highest bumping resistance by innovative "pin-in-pin" technology

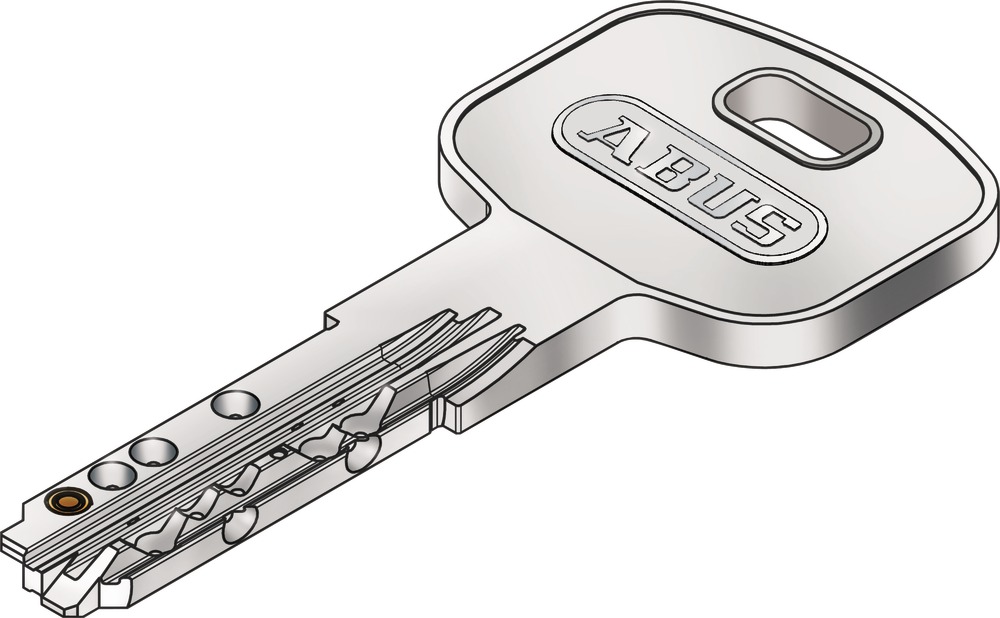

  • Reversible dimple key with spring-loaded locking element in tip of key (patented)

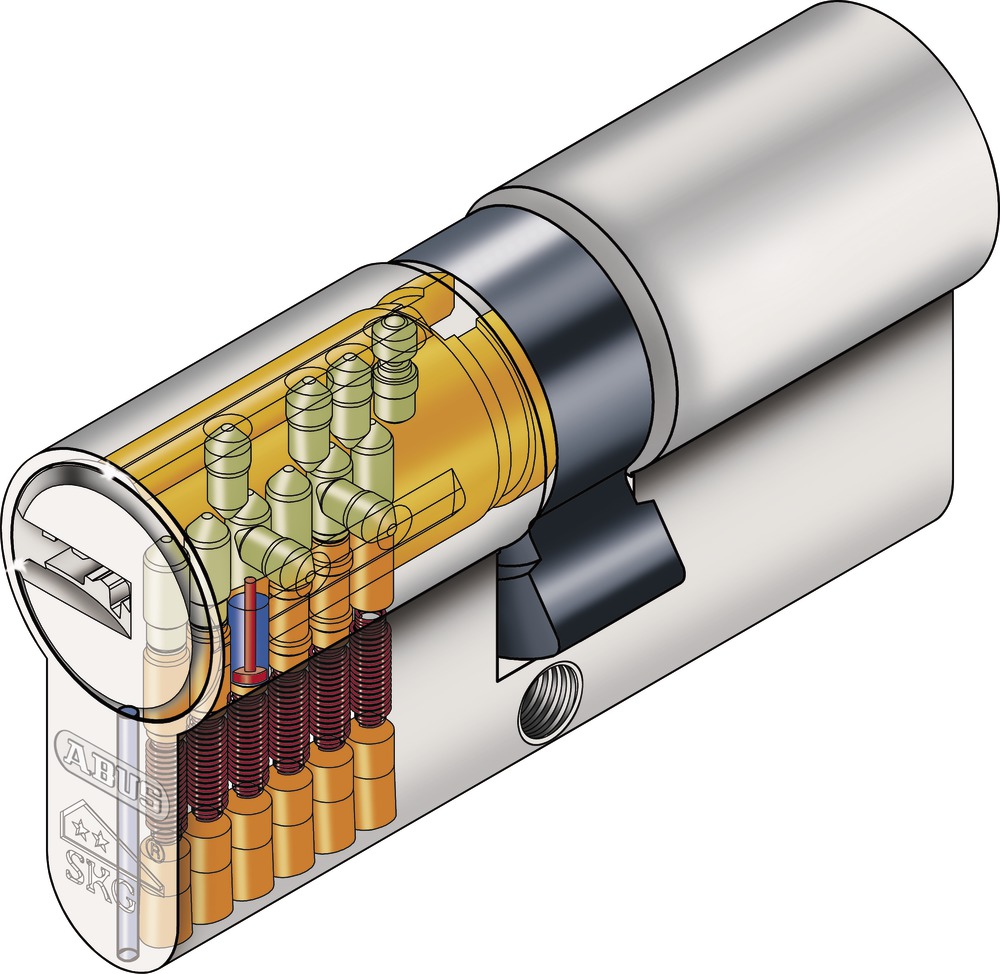

  • High quality locking system with 12 independent locking elements in 3 planes
  • SKG** approved drilling protection by hardened steel pins
  • 3 keys included

Operation and use:

  • Main entrance doors or apartment doorsCan be combined keyed alike with ABUS door bars, door rim locks and padlocks (e.g. 86/55)

Variants:

  • Finish: nickel

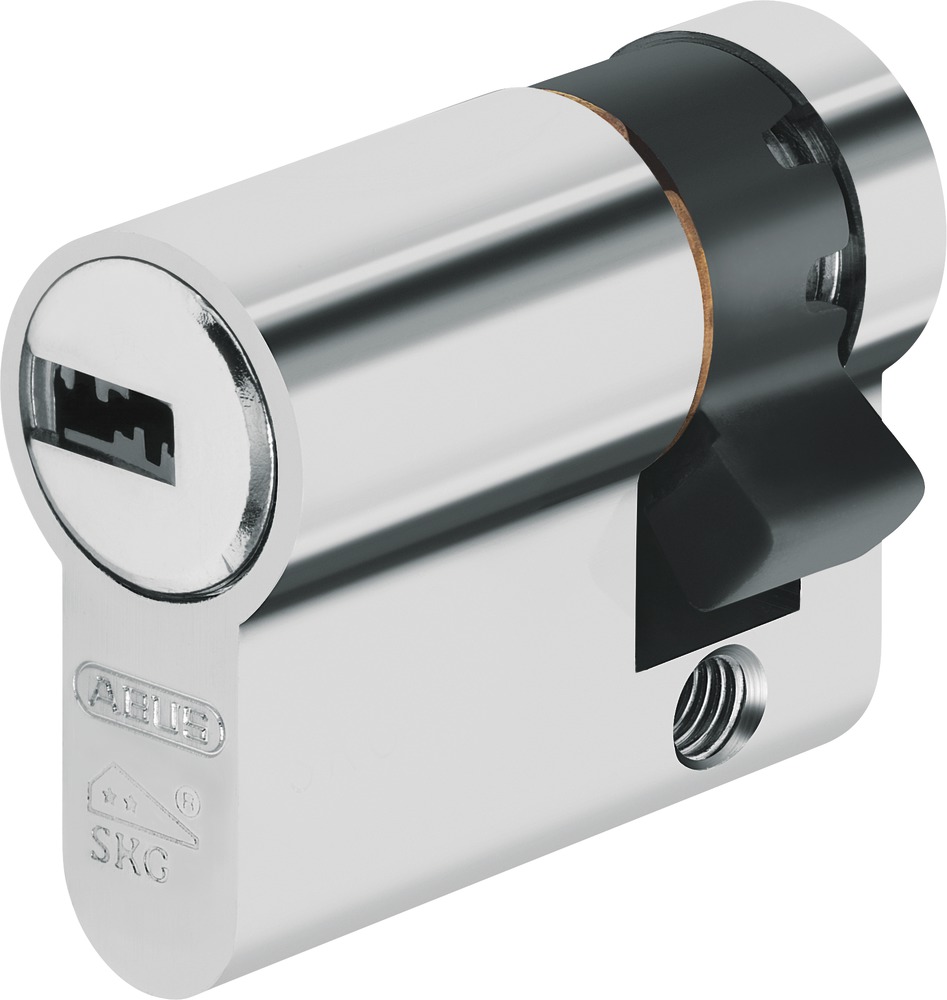

  • Half cylinder, e.g. for garage doors or thumbturn cylinders with high ease of use - no key needed on the inside

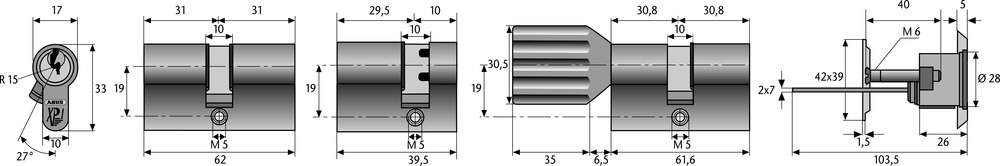

Variants:

Door Cylinder XP2SN 30/30 vs.
Art. no. 19541
Door Cylinder XP2SN 30/30 333333
Art. no. 19596
Version: Doppelzylinder
Finish: vernickelt
Door Cylinder XP2SN 30/30 SB
Art. no. 31812
Door Cylinder XP2SN 10/30 vs.
Art. no. 19590
Version: Halbzylinder
Finish: vernickelt
Door Cylinder XP2SN 10/30 333333
Art. no. 19642
Version: Halbzylinder
Finish: vernickelt

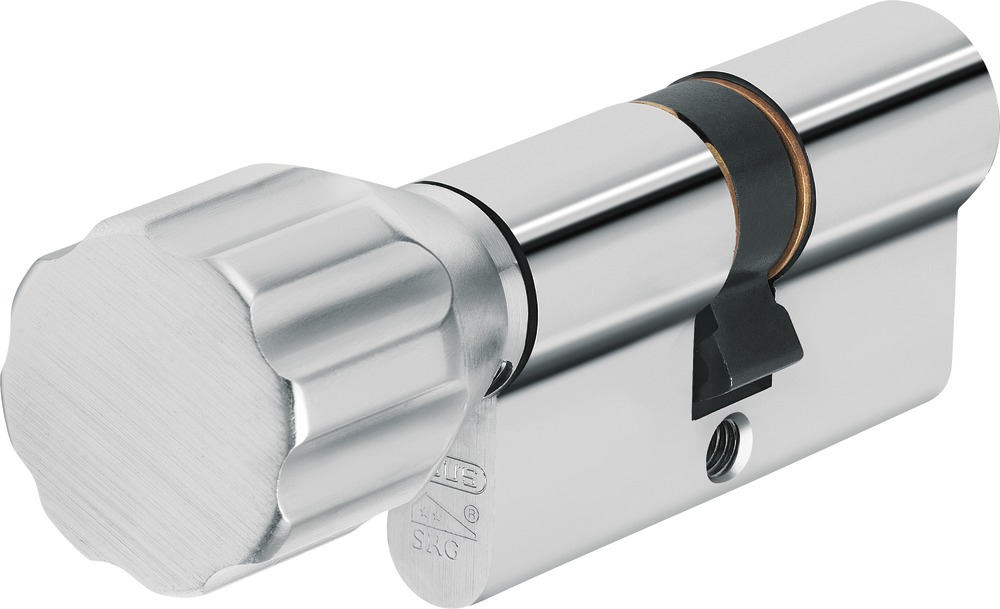

Door Cylinder KXP2SN Z30/K30 vs.
Art. no. 19699
Version: Knaufzylinder
Finish: vernickelt

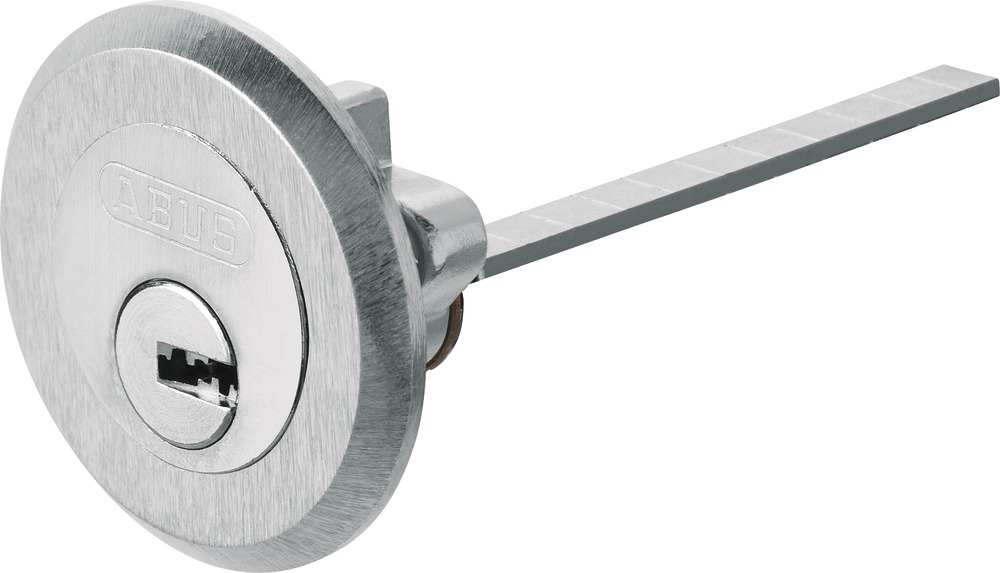

Door Cylinder XP2CR84 N
Art. no. 29979
Version: Außenzylinder
Finish: vernickelt 		Door Cylinder KXP2SN Z30/K30 33333
Art. no. 19713
Version: Servicezylinder ohne Schlüssel
Finish: vernickelt

Downloads:

Door cylinders

Door cylinders

The door cylinder is the heart of any door and has top priority when it comes to protection against break-ins. Despite their importance, many locking cylinders based on outdated technology are still being fitted – with no protection against tampering, with no emergency or hazard functions, etc.Today's door cylinders are high-quality, high-tech products with versatile and effective features. Each is a miniature masterpiece in itself and must ...
