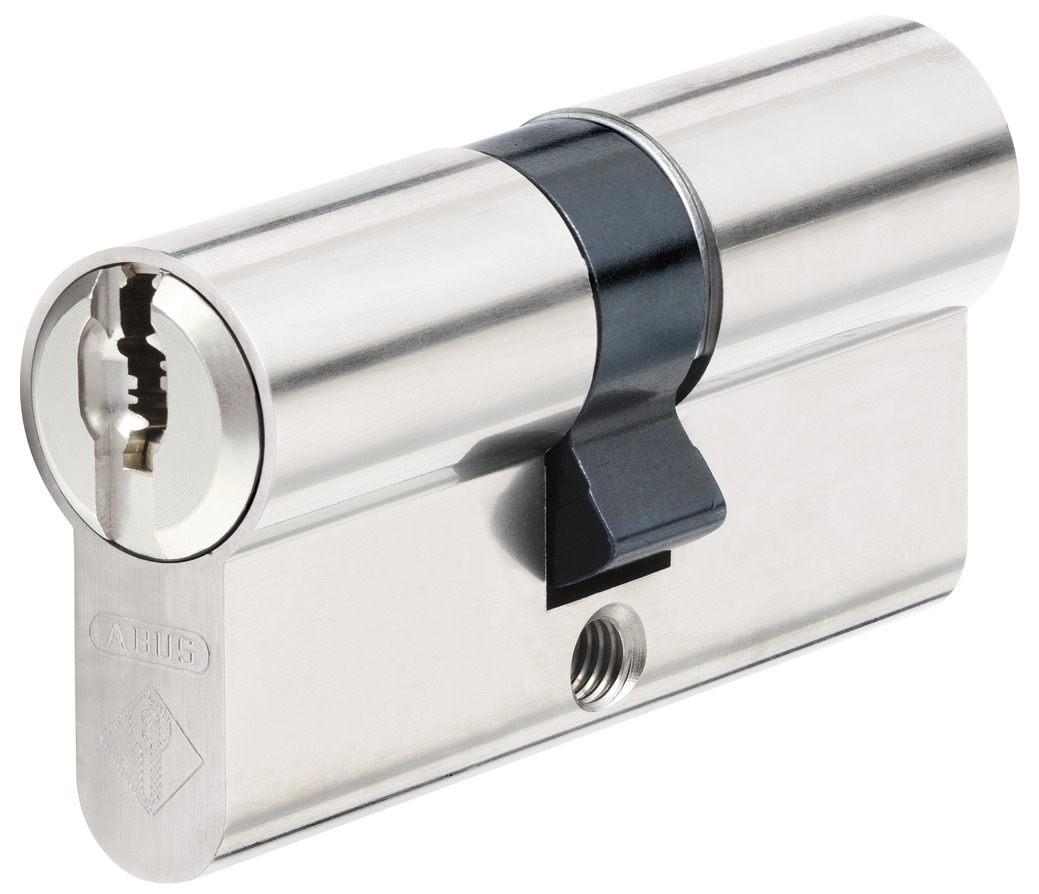

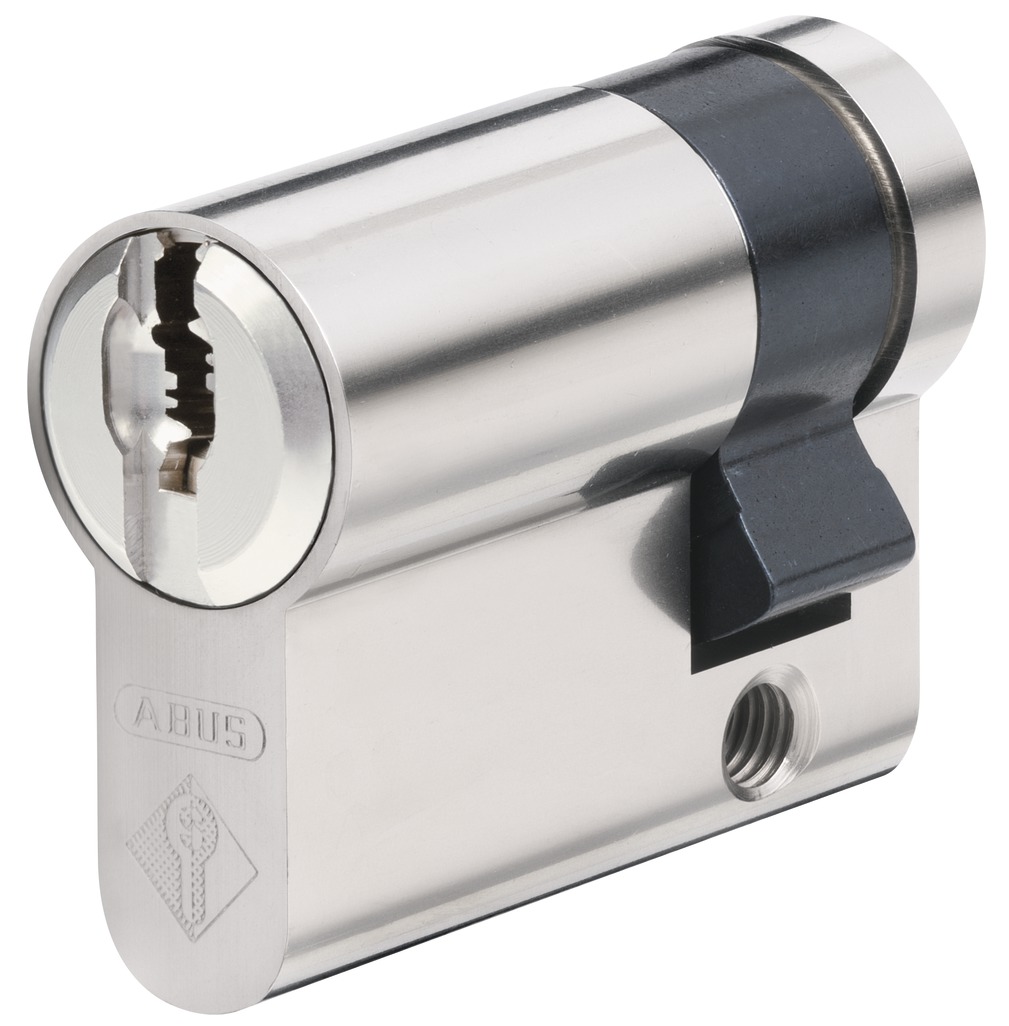

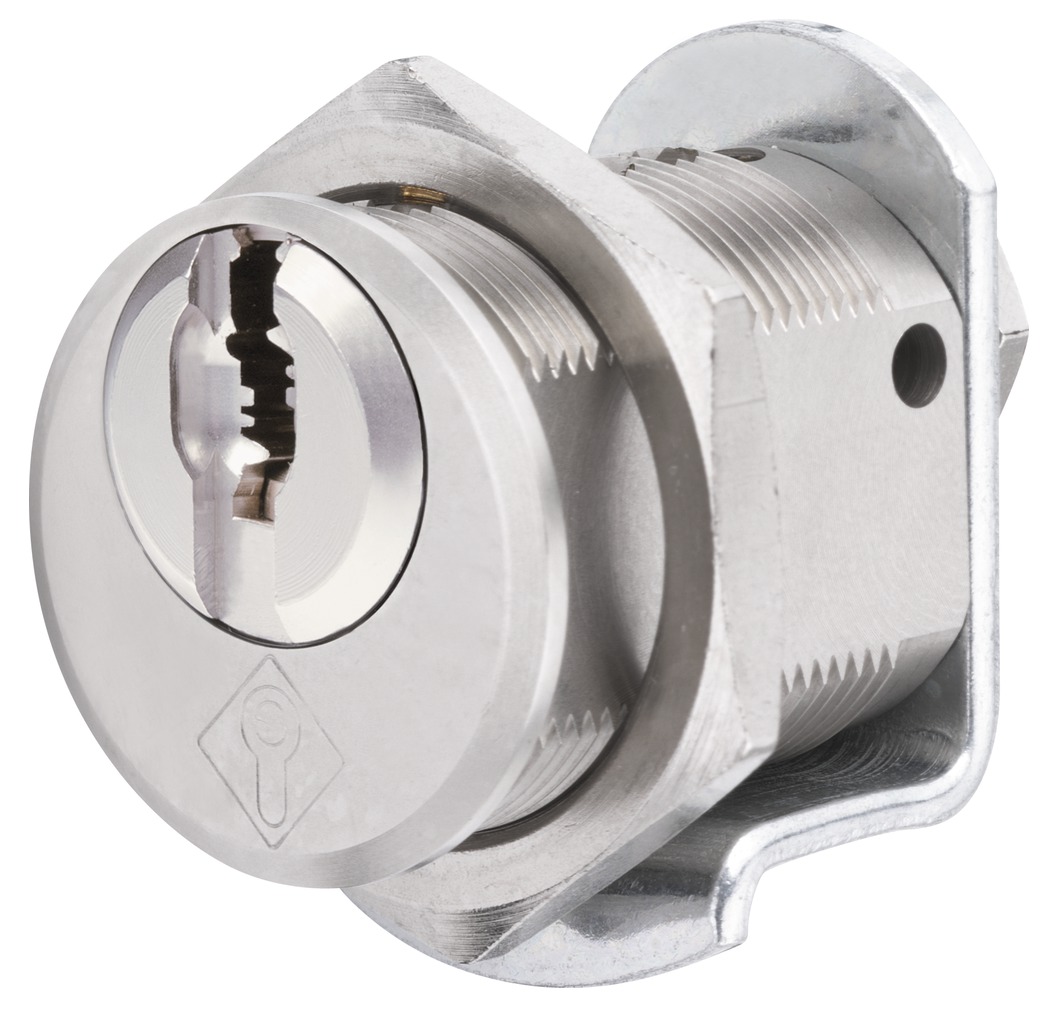

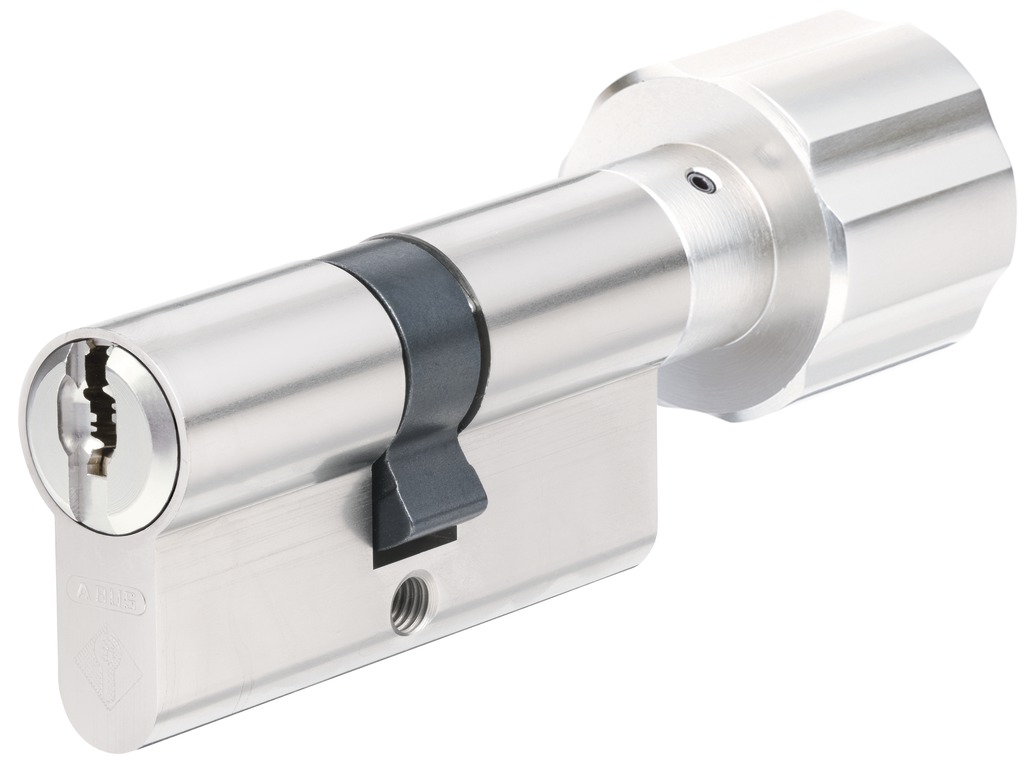

Wavy Line pro double cylinder Wavy Line pro knob cylinder Wavy Line pro half cylinder Wavy Line pro cam cylinder Profile double cylinder
|||

Cylinder Wavy Line pro System Wavy Line Pro

Technology:

  • Cylinder material: brass nickel-plated (finish NI)
  • Key material: nickel silver
  • Standard drill protection without surcharge
  • Symmetrical patented reversible key
  • Combination of waved code line and dimples
  • Coded rib with blocking ball – the blocking ball blocks in case of manipulation attempts
  • Very stability by thicker key cross-section

Operation and use:

  • Interior and exterior
  • In combination with DIN lock cases
  • To meet very high security demands in combination with high comfortable key handling
  • Patented locking technique provides legal protection against copying and high technical protection against copying
  • For keyed different and keyed alike cylinders with security card as well as medium sized and smaller key systems

Variants:

  • Available as double, knob and half cylinder, cam cylinder, circular cylinder for lock cases, padlock and many other cylinder types
  • 6 pins (basic length of 61 mm in total) with 4 additional locking elements in a second row
  • Cylinders can be enlarged in steps of 5 mm on top of the basic length, symmetrically and asymmetrically
  • Finishes: chromium-plated, electropolished brass, antique bronze, mat/gold-plated, polished/gold-plated (for special cylinders on demand)
  • Special features like e.g. emergency feature, salt water resistance (finish CR and special pins), free-wheel cam, pre-snap function and many more

Technical data:

Art. no.: WLP

Downloads:

Door cylinders

Door cylinders

The door cylinder is the heart of any door and has top priority when it comes to protection against break-ins. Despite their importance, many locking cylinders based on outdated technology are still being fitted – with no protection against tampering, with no emergency or hazard functions, etc.Today's door cylinders are high-quality, high-tech products with versatile and effective features. Each is a miniature masterpiece in itself and must ...
