Terxon SX complete package
||||

Terxon SX Complete Package (Art. no. AZ4301)

Special product features:

  • Wired alarm system with full range of accessories for optimum protection
  • Includes control panel, outdoor siren, 2 motion detectors, 5 opening detectors and 50 m alarm cable
  • External key switch with cylinder and 5 proximity chip stickers
  • Can be flexibly extended at any time
  • With eight freely configurable zones

Technical data:

Art. no.: AZ4301

Terxon SX Alarm Control Panel - AZ4000


Zum Produkt
Technical data
Art. no.: AZ4000
Dimensions: (WxHxD) 240x240x85 mm
Connections: 230 V screw terminal, 13.8 V screw terminal, loudspeaker, zone-screw terminal, 11 x switching outputs
Number of control panels: 4
Number of users: 16
Number of wired zones: 8
Number of tamper zones: 1
Display: Two-line LCD alphanumerical display
Battery type: 12V DC, 7.0 Ah lead rechargeable battery
Width: 240 mm
Event log: 250
Extensible (hybrid): No
Remote configuration: No
Housing material: Alarm centre: Metal, control unit: ABS
Height: 240 mm
Integrated siren: Buzzer in control panel
Communication/alarming: Only compatible via external dialer: AZ6301, AZ6302
Length: 85 mm
Max. number of control panels: 4
Max. operating temperature: 40 °C
Max. battery charging time: 24 h
Max. humidity: 75 %
Max. run time on backup power: 12 h
Min. operating temperature: -10 °C
Net weight: 2.45 kg
Backup power supply: Yes (battery optional)
Configuration (1): Via control panel
Tamper lines: 2
Tamper monitoring: Yes
Switching outputs: 3 x 500 mA transistors, 8 x 50 mA transistors, freely programmable
Security level: 2
Fuse: 230 V / 250 mA; 12 V: 1 A fast; battery: 2 A fast
Voltage monitoring: Yes
AC voltage supply: 230 V
OSD language: 11 selectable languages
Power consumption: 200 mA
Partitions/surveillance partitions: 4 (1 main area and 3 sub-areas)
Environmental class: II
Certifications: INCERT, F&P, NCP
Zone closure: NC, DEOL

Surface Mount Key-switch - SE1000


Zum Produkt
Technical data
Art. no.: SE1000
Dimensions: (WxHxD) 117x85x42 mm
Width: 117 mm
Housing material: ABS
Height: 87 mm
Length: 55 mm
Power consumption: 0,02
Installation location: Surface fitting
Tamper monitoring: Yes
IP protection class: 55
DC voltage supply: 10-15 V
Status display: Yes (2 LEDs)
Power consumption: 2 mA

Screw terminal distributor flush mount, 12-pins, white - VT5101W


Zum Produkt
Technical data
Art. no.: VT5101W
Dimensions: (WxHxD) 65x65x18 mm
Connections: 12 screw connections
Width: 65 mm
Housing material: ABS
Height: 65 mm
Length: 18 mm
Installation location: Surface mounting
Tamper monitoring: Yes

Wired motion detector - BW8000


Zum Produkt
Technical data
Art. no.: BW8000
Dimensions: (WxHxD) 60x106x47 mm
Connections: NC, 100 mA, 24 V DC
Display: Yes
Width: 60 mm
Type of detection: Heat detection
Adjustable sensitivity: Yes
Detection range of detector (m): 15x15 m
Housing material: ABS
Height: 106 mm
Pulse selector: Yes
Length: 47 mm
Power consumption: 0,081
Max. operating temperature: 55 °C
Installation location: Wall
Net weight: 0.08 kg
Tamper monitoring: NC, 100 mA, 24 V DC
Sensor type: Dual PIR
DC voltage supply: 9-12 V
Status display: Yes
Power consumption: 9 mA
Creep zone: Yes
White light filter: Yes

Optic / acoustic combination signal transmitter - SG1650


Zum Produkt
Technical data
Art. no.: SG1650
Dimensions: (WxHxD) 190x310x115 mm
Flashing frequency: 1.17 Hz
Width: 190 mm
Housing material: Aluminium
Height: 310 mm
Length: 115 mm
Power consumption: 4,08
Luminous color: Red
Illuminant: Xenon
Max. operating temperature: 55 °C
Min. operating temperature: -25 °C
Installation location: Indoors and outdoors
Tamper monitoring: Yes
Sound pressure: 110 dB
IP protection class: 34
DC voltage supply: 12 V
Power consumption: 340 mA

Wired NC opening detector (white) - FU7350W


Zum Produkt
Technical data
Art. no.: FU7350W
Dimensions: (WxHxD) 11x12x48 mm
Connections: NC, max. contact capacity 100 V/5 W/0.05 A
Width: 11 mm
Type of detection: Magnetic field measurement
Stray-field protection: No
Housing material: ABS
Height: 12 mm
Cable type: 2-core
Cable length: 2 m
Length: 48 mm
Installation location: Integration / surface mounting
Sensor type: Read contact

Proximity chip sticker, 5pcs. Set Terxon SX - AZ5502


Zum Produkt
Technical data
Art. no.: AZ5502
Color: White
Dimensions: (HxD) 0,5x25 mm
Width: 25 mm
Height: 0.5 mm

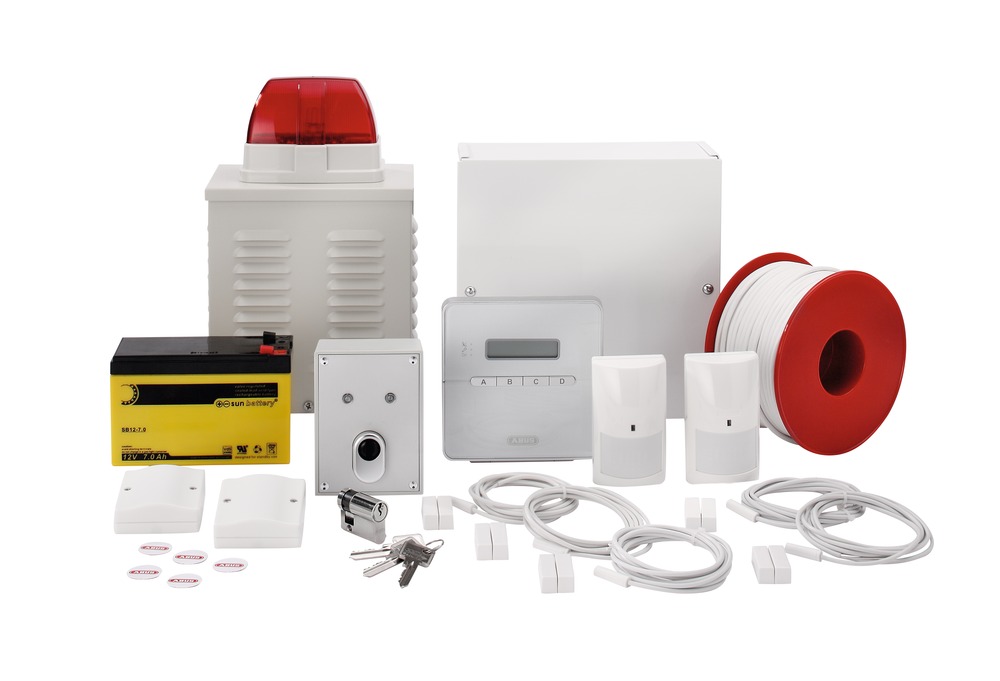

Scope of delivery:

  • 1x Terxon SX Alarm Control Panel
  • 1x VdS battery 12 V, 7.0 Ah
  • 1x Key switch incl. ABUS quality cylinder
  • 2x Screw terminal distributor flush mount, 12-pins, white
  • 1x Alarm cable, 8-core, 50 m
  • 2x Wired motion detector
  • 1x Optic / acoustic combination signal transmitter
  • 5x Opening detector, 2 m, 2-core, white
  • 5x Terxon Proximity chip sticker

Products included:

Terxon SX wired alarm panel

Terxon SX wired alarm panel

ABUS Terxon SX – security for small properties and houses. The compact panel is the ideal model for getting started in the world of wired alarm technology. With optional modules, the alarm panel can be extended to include additional outputs and functions. ...
