Door Opening Detector, with external field protection, 2 m, 4-core (Art. no. MK4100)

Special product features:

  • Magnetic contact for installation and assembly
  • NC switching contact
  • 2 m cable / 4-wire

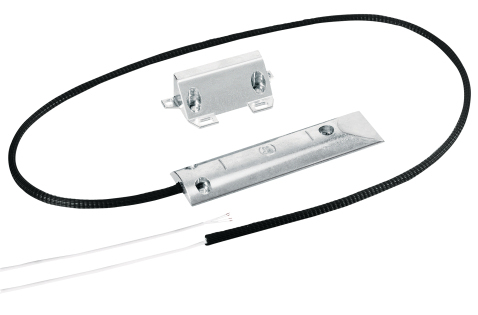

The door opening detector is a magnetic contact for protecting large (garage) doors. Unauthorised opening is detected and reported to the alarm panel. The door opening detector is mounted chiefly on roll-up, sliding, and up-and-over doors. The detector consists of a magnetic contact (reed) and a magnet. These are fitted parallel to each other. The electric circuit of this NC opening detector is normally closed (NC). If the distance between reed and magnet increases, the circuit is broken and an alarm reported. The detector is tamper-protected and stray-field protected. Stray-field protected means that only the magnet belonging to this opening detector has the right field strength to keep the electric circuit closed. Any change to the field strength (e.g.: by another magnet) breaks the circuit and an alarm is triggered. The best installation location is in the middle of the entrance. The magnetic contact is mounted on the ground and the magnet on the inside of the door at a distance of about 20 mm. The door opening detector is perfectly suited for surface-fitting. It is absolutely water and dust-proof (IP 68). Its extremely robust aluminium housing protects it from damage even when driven over. The door opening detector is VdS C certified.

Technical data:

Art. no.: MK4100
Dimensions: (WxHxD) 180x14x45 mm
Connections: NC, max. contact capacity 60 V DC/AC/300 mA/3 W
Width: 13 mm
Type of detection: Magnetic field measurement
Stray-field protection: Yes
Housing material: Aluminium
Height: 230 mm
Cable type: 4-core
Cable length: 2 m
Length: 45 mm
Max. operating temperature: 55 °C
Installation location: Surface mounting
Tamper monitoring: Yes
IP protection class: 65
Sensor type: Reed contact
Certifications: VdS C

Scope of delivery:

  • 1x Gate opening detector
  • 1x Connecting cable, 2 m
