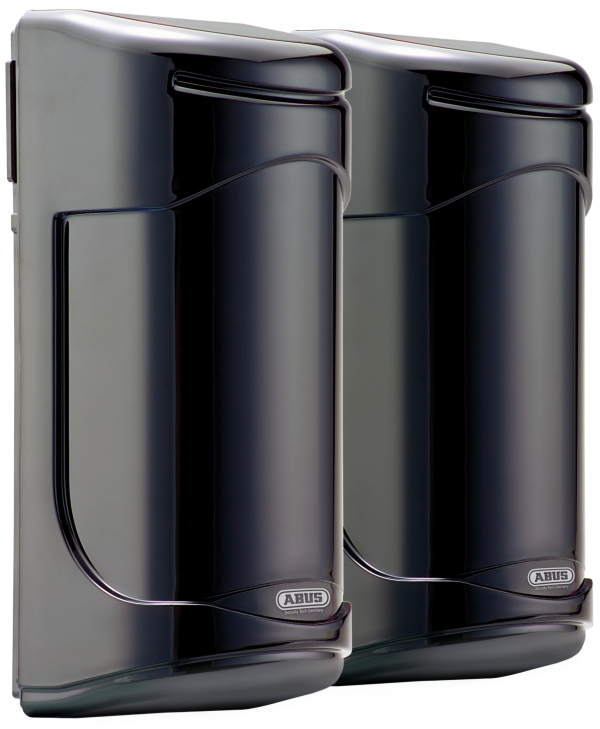

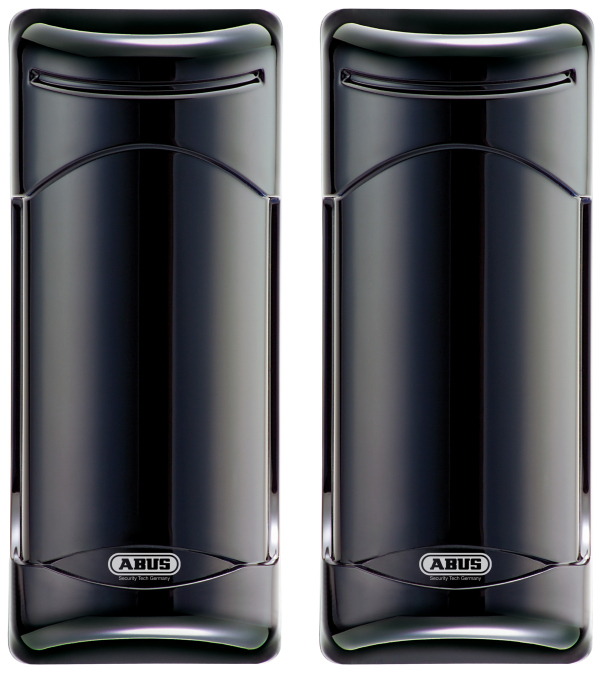

Profiline infrared Light beam, 60m front view right Profiline infrared Light beam, 60m front view
|||||

Profiline Infrared Light Beam, 60m (Art. no. LS2060)

Special product features:

  • Suitable for passive trap systems, perimeter security and open area protection
  • High monitoring range
  • Pulsed dual light beams
  • Laser for easy adjustment
  • IP55

This innovative Profiline infrared light beam detects up to a distance of 120 m indoors and 60 m outdoors. Dual light beams and anti-sabotage monitoring of the transmitter and receiver guarantee reliable functionality. A special plus: Installation is quick and easy thanks to the horizontal and vertical alignment capabilities of the transmitter and receiver, laser beam calibration, and LED display.

Technical data:

Art. no.: LS2060
Dimensions: (WxHxD) 173x74x72 mm
Connections: Screw terminal: Transmitter (Tx): Power supply 10-30 V DC, NC tamper output; receiver (Rx): Power supply 10-30 V DC, COM alarm contact, NC alarm contact, NO alarm contact, NC tamper output
Display: Yes
Width: 173 mm
Type of detection: Infrared radiation measurement
Detection range of detector (m): 120 m
Housing material: ABS
Height: 74 mm
Length: 72 mm
Power consumption: 0,65
Max. operating temperature: 55 °C
Max. detection range (outside): 60 m
Max. detection range (inside): 120 m
Installation location: Indoors and outdoors
Tamper monitoring: Yes
IP protection class: 55
Sensor type: Infrared module
DC voltage supply: 10-30 V
Status display: Yes
Power consumption: 65 mA

Scope of delivery:

  • 1x Infrared transmitter (Tx) with front cover
  • 1x Infrared receiver (Rx) with front cover
  • 1x Installation material also for mast mounting
