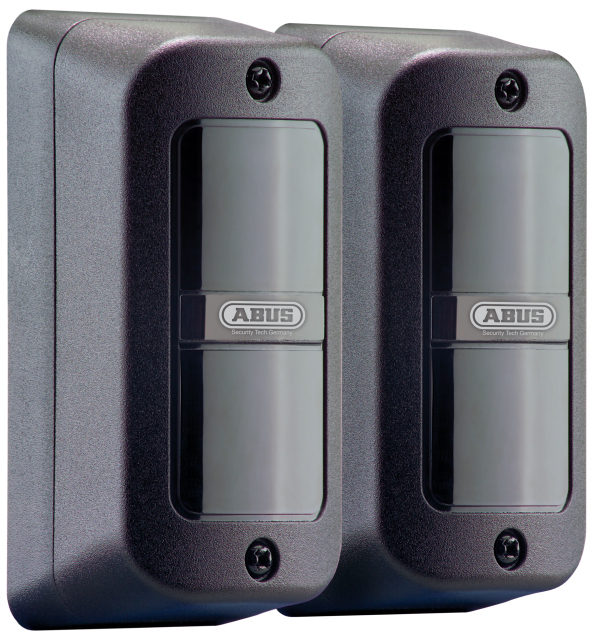

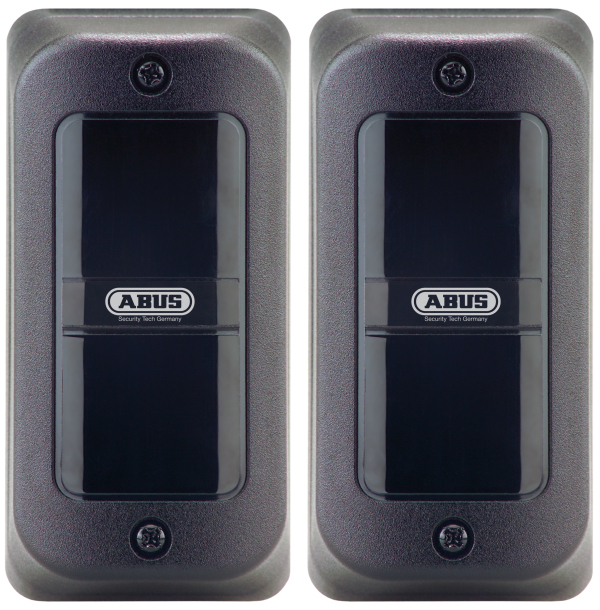

Ecoline infrared light beam front view right Ecoline infrared light beam front view
|||||

Ecoline infrared light beam (Art. no. LS1020)

Special product features:

  • Suitable for interior room monitoring, passive trap systems, external shell protection, free-land monitoring
  • Optimal for smaller properties
  • IP66

Easy-to-install Ecoline infrared light beam for indoors and outdoors! This light barrier monitors an area of up to 20 m. Smart anti-sabotage protection of the transmitter and receiver guarantees the highest level of operational safety. Use the Ecoline infrared light beam in combination with our alarm systems for monitoring hallways, doors, or parking spaces. And clever solutions such as video monitoring system control or illumination control can be easily implemented. Advantage over PIR motion detectors: The Ecoline infrared light beam only detects movement passing through a precisely defined line and does not detect motions inside an area. Thus, passers-by are not detected as long as they do not walk through the invisible line. Delivery kit: Infrared transmitter (Tx) with a faceplate, infrared receiver (Rx) with a faceplate, 4 housing screws.

Technical data:

Art. no.: LS1020
Dimensions: (WxHxD) 46x95x34 mm
Connections: Alarm output: (Rx) relay (NO/NC) 1 A / 120 V AC; tamper output: (Tx/Rx) NC contact 1 A / 120 V AC
Display: Yes
Width: 46 mm
Type of detection: Infrared radiation measurement
Detection range of detector (m): 20 m
Housing material: ABS
Height: 95 mm
Length: 34 mm
Power consumption: 0,24
Max. operating temperature: 60 °C
Max. detection range (outside): 20 m
Max. detection range (inside): 20 m
Installation location: Indoors and outdoors
Tamper monitoring: Yes
IP protection class: 66
Sensor type: Infrared module
AC voltage supply: 24 V
DC voltage supply: 12 V
Status display: Yes
Power consumption: 50 mA

Scope of delivery:

  • 1x Infrared transmitter (Tx) with front cover
  • 1x Infrared receiver (Rx) with front cover
  • 4x Housing screws
