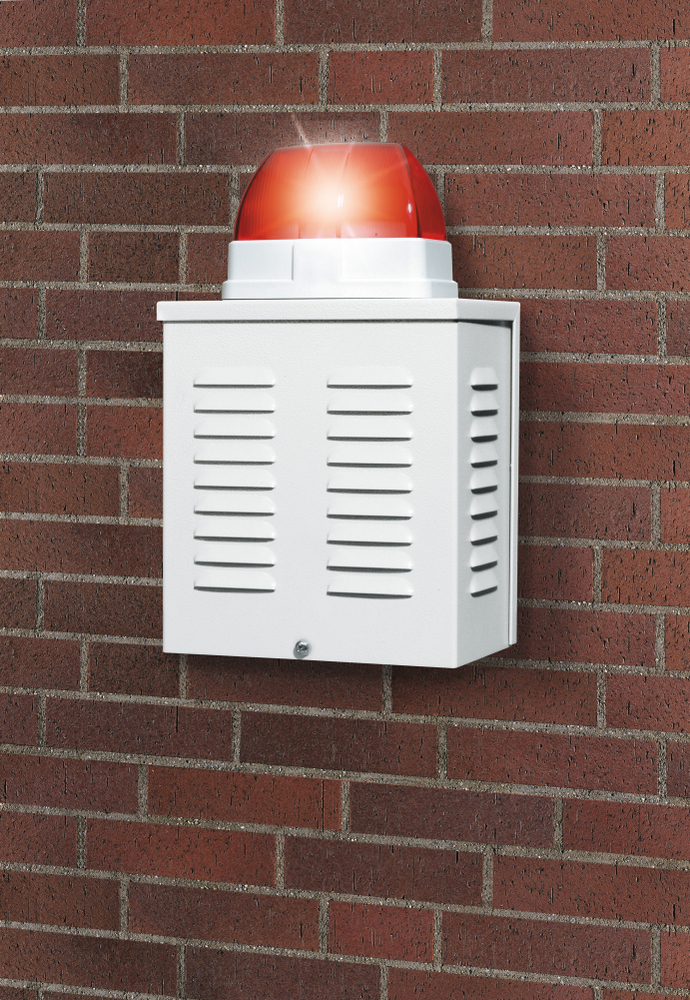

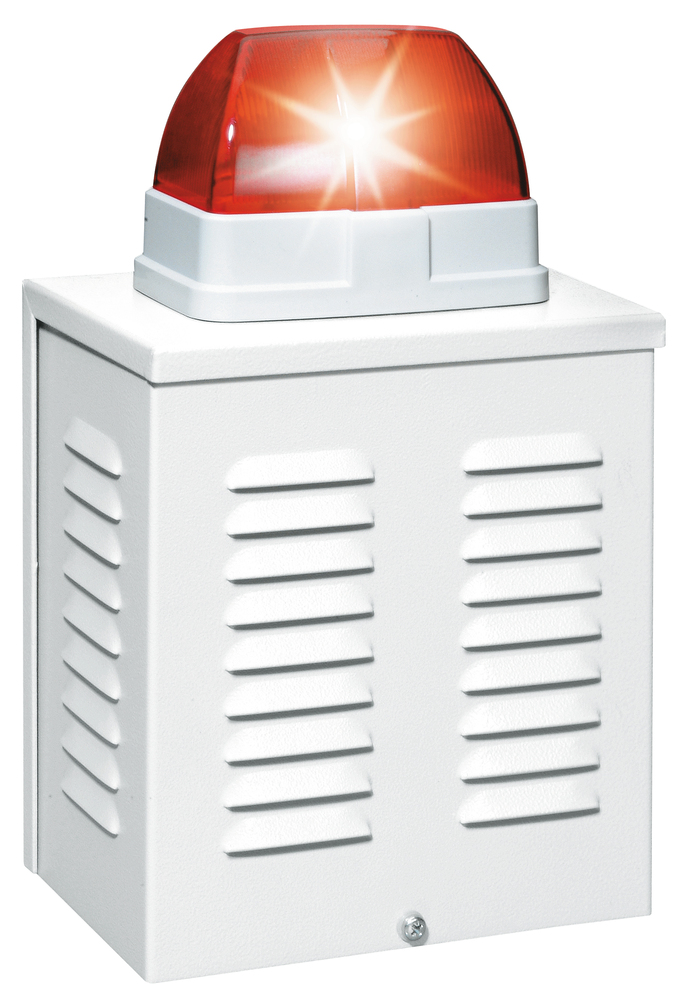

Compact alarm system, siren and flash front view right Compact alarm system, siren and flash Example of application
|||||

Optic / acoustic combination signal transmitter (Art. no. SG1650)

Special product features:

  • Robust siren in aluminum housing
  • Extremely loud 110 dB (A) @ 1 m
  • Siren and flash light can be controlled separately
  • Sabotage-monitored

The compact alarm system siren and flash can be mounted inside and outside your building. This professional combination signalling device is the crucial link of a fully functioning alarm chain. In the event of an alarm, the alarm sounder generates an extremely loud signal tone with over 110 dB sound pressure. In addition to the audible alarm, there is an optical alert from a red Xenon strobe light that is visible over long distances (flash frequency: 1.17 Hz). The alarm sounder and the strobe light can be controlled separately. The weatherproof aluminium housing (IP 34) of the combination signalling device is protected from tampering by a wall contact and a cover contact as well as by an additional internal grill. The siren and flash are supplied externally with 12V operating voltage. With a Xenon strobe, the maximum power consumption is 750mA, without strobe 350mA.

Technical data:

Art. no.: SG1650
Dimensions: (WxHxD) 190x310x115 mm
Flashing frequency: 1.17 Hz
Width: 190 mm
Housing material: Aluminium
Height: 310 mm
Length: 115 mm
Power consumption: 4,08
Luminous color: Red
Illuminant: Xenon
Max. operating temperature: 55 °C
Min. operating temperature: -25 °C
Installation location: Indoors and outdoors
Tamper monitoring: Yes
Sound pressure: 110 dB
IP protection class: 34
DC voltage supply: 12 V
Power consumption: 340 mA

Scope of delivery:

  • 1x Combination signal transmitter with flashing light

General Downloads:

Additional Information:

Sounder

Sounder

At the end of the alarm chain, alarm signaling devices ensure that the intruder gives up and that help comes quickly. Visibly mounted alarm signaling devices thwart many burglaries just through deterrence. Whether glaring Xenon strobe light or a loud siren – these alarm signaling devices cause intruders to flee. ...
