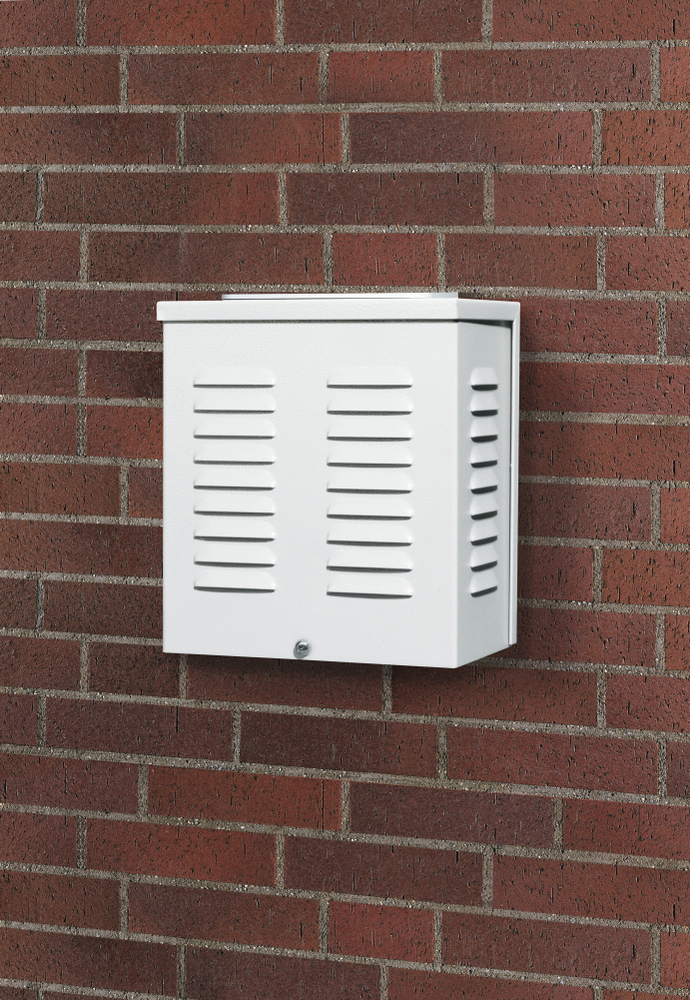

Compact alarm system, siren front view right Compact alarm system, siren Example of application
|||||

Acoustic signal transmitter (Art. no. SG1660)

Special product features:

  • Robust siren in aluminum housing
  • Extremely loud 110 dB (A) @ 1 m
  • Siren and optional flash light can be controlled separately
  • Sabotage-monitored

You can install the compact alarm system siren inside and outside of your building. This professional signalling unit is the critical module of a completely functioning alarm chain. The compact alarm system siren is an acoustic signal generator. When an alarm is triggered, it generates an extremely loud signal tone with more than 110 dB of acoustic pressure. The weather-proof aluminum housing (IP 34) of the alarm siren is protected against sabotage by a wall and cover contact and by an additional inside grating. The siren is powered with 12 V (external). The maximum current consumption is 350 mA.

Technical data:

Art. no.: SG1660
Dimensions: (WxHxD) 190x210x115 mm
Width: 190 mm
Housing material: Aluminium
Height: 210 mm
Length: 115 mm
Power consumption: 4,08
Max. operating temperature: 55 °C
Min. operating temperature: -25 °C
Installation location: Indoors and outdoors
Tamper monitoring: Yes
Sound pressure: 110 dB
IP protection class: 34
DC voltage supply: 12 V
Power consumption: 340 mA

Scope of delivery:

  • 1x Acoustic sounder without flashing light

General Downloads:

Additional Information:

Sounder

Sounder

At the end of the alarm chain, alarm signaling devices ensure that the intruder gives up and that help comes quickly. Visibly mounted alarm signaling devices thwart many burglaries just through deterrence. Whether glaring Xenon strobe light or a loud siren – these alarm signaling devices cause intruders to flee. ...
