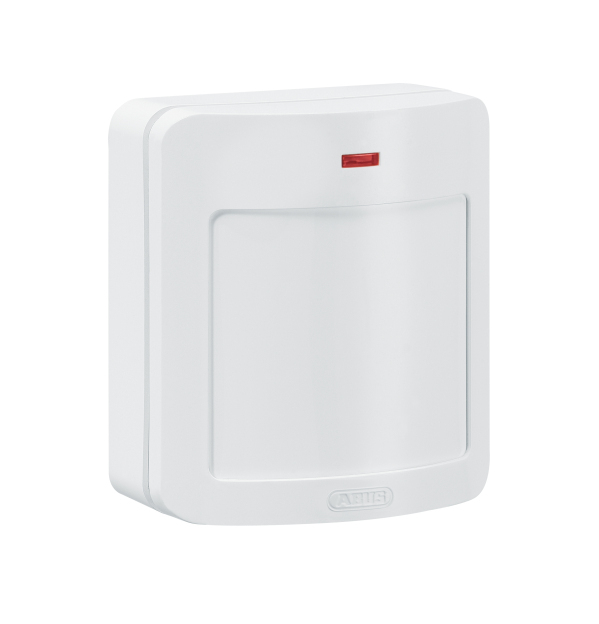

Secvest Wireless Motion Detector (PET) (Art. no. FUBW50010)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • Passive indoor infrared detector
  • Detects moving body heat
  • Not sensitive to non-flying animals up to a weight of approx. 30 kg
  • Detection range 10 m

Intelligent motion detectionThe Secvest wireless motion detector responds to moving body heat within its detection range and reports this to the Secvest wireless alarm system. The detector is not sensitive to small animals, and therefore differentiates between a person and a pet. While the heat fields from a person moving in the room are reliably detected, the detector ignores pets weighing up to 30 kg. Despite being "pet-proof up to 30 kg", however, on occasion the detector may sense pets that weighing less than this amount, triggering a message to the alarm panel. The risk of a false alarm in this case is especially high if the animal moves, jumps or flies very close to the detector. Detector featuresThe angle of view of the wireless motion detector is 90°, and its detection range – depending on installation height – is up to 10 metres. It is also equipped for detection within a creep zone, which prevents persons from avoiding detection by crawling underneath the detector.

Technical data:

Art. no.: FUBW50010
Dimensions: (WxHxD) 81x73x47 mm
Battery type: 3.6 V DC lithium AA battery
Width: 81 mm
Type of detection: Heat detection
Detection range of detector (m): 10 m
Radio frequency: 868,6625 MHz
Transmission power: 10
Housing material: ABS
Height: 73 mm
Length: 47 mm
Max. battery life: 2 year(s)
Max. operating temperature: 55 °C
Max. humidity: 85 %
Max. sending range (outdoors): 100 m
Max. sending range (building): 30 m
Min. operating temperature: -10 °C
Modulation: FM FM / AM
Net weight: 0.14 kg
Tamper monitoring: Yes
Sensor type: PIR
Security level: 2
Voltage monitoring: Yes
DC voltage supply: 3.6 V
Status display: Yes
Pet-proof: Yes
Environmental class: I
White light filter: Yes

Scope of delivery:

  • 1x Wireless motion detector
  • 1x Battery 3.6 V AA ER14505 Li (FU2992)

General Downloads:

Wireless motion detector

The wireless motion detectors are extensions of the Secvest IP wireless alarm panel. They are passive infrared motion detectors that detect moving (body) heat in the room and report this to the respective wireless alarm panel. Thanks to inconspicuous design, they can easily be integrated in the living environment. ...
