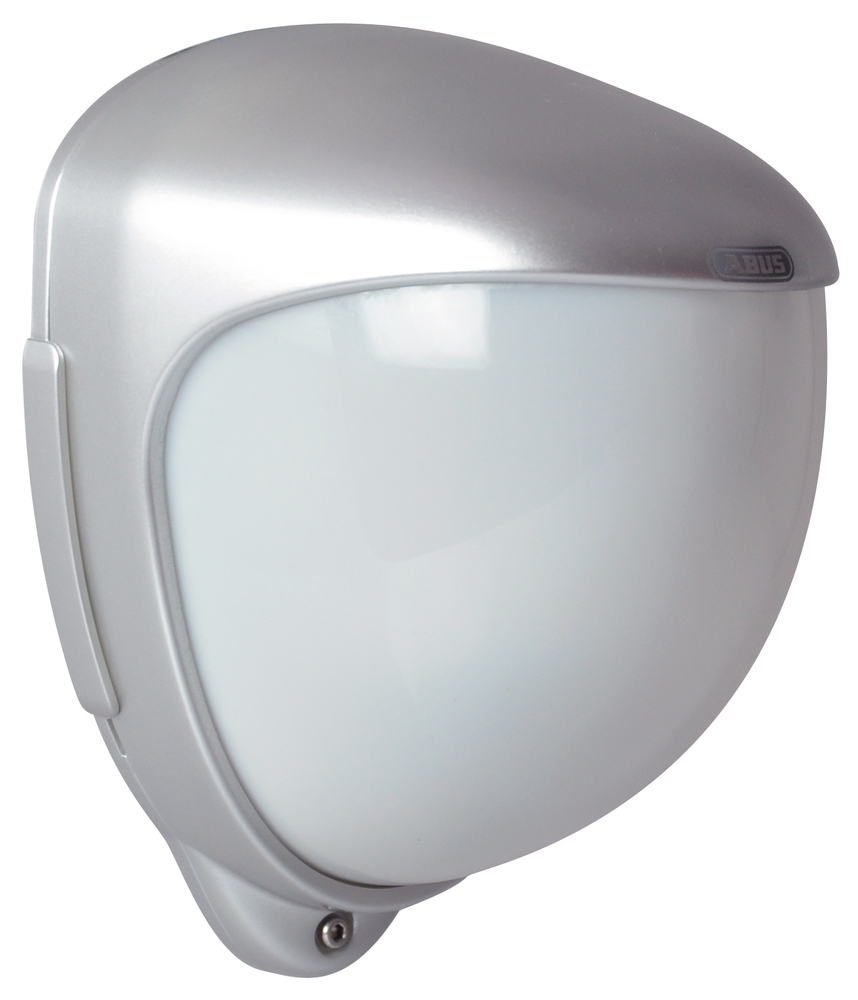

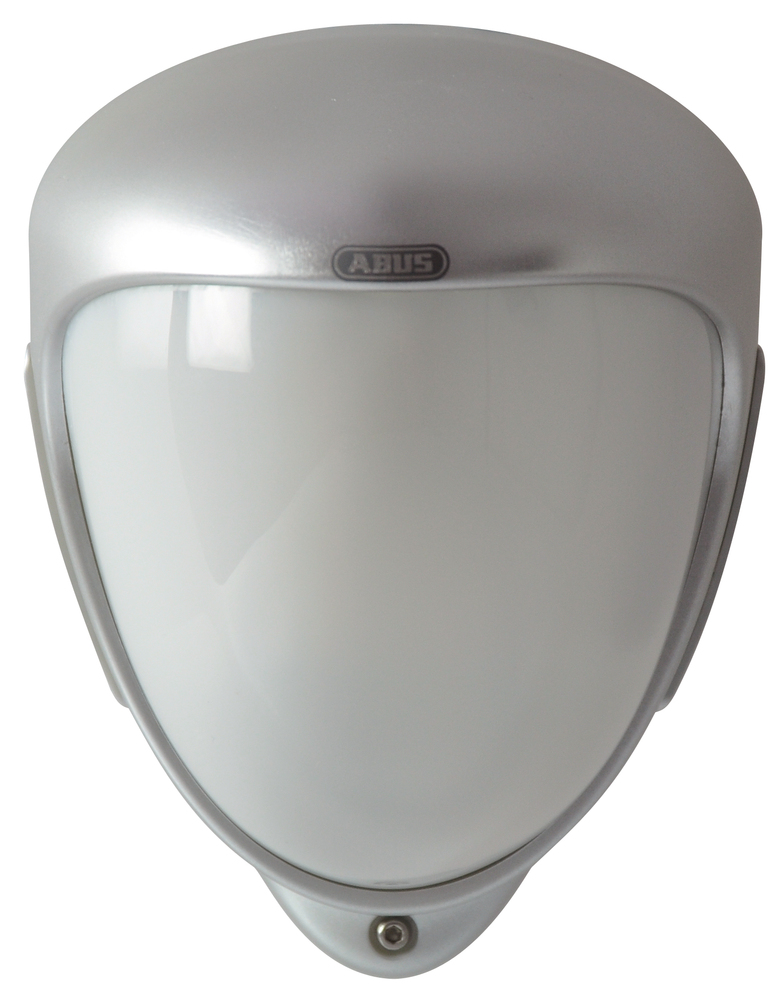

Secvest wireless outdoor motion detector front view right Secvest wireless outdoor motion detector front view
|||||

Secvest wireless outdoor motion detector (Art. no. FUBW50020)

We expressly recommend having this product installed by a certified specialist.

Special product features:

  • Outdoor motion detector for perimeter monitoring
  • Can be integrated in alarm and video monitoring systems
  • Dual PIR element
  • Detection range up to 30 m
  • Protection class IP55

Due to its wireless technology, the passive infrared motion detector with dual PIR element enables easy and wireless installation outdoors. The detector reacts to all types of body heat and reports this to an alarm panel or video surveillance system.

The integrated PIR elements can be panned 180° and tilted 90°, meaning the detector can be installed in virtually any location. Installation positions opposite sources of heat are not suitable. Do not install the motion detector near electric cables, gas lines or electronic equipment that generates heat during long periods of operation.

The angle of view of the outdoor motion sensor is 10°–70°, and its detection range – depending on installation height – is up to 30 meters.

Technical data:

Art. no.: FUBW50020
Dimensions: (BxHxT) 155x120x115 mm
Width: 155 mm
Gross weight: 0.88 kg
Type of detection: Heat recognition
Detection range of detector (m): 10-30 m
Radio frequency: 868 MHz
Housing material: Polyethylene HDPE
Height: 120 mm
Length: 115 mm
Max. battery life: 2 year(s)
Max. operating temperature: +55 °C
Max. humidity: 75 %
Max. sending range (outdoors): 100 m
Max. sending range (building): 30 m
Min. operating temperature: -20 °C
Modulation: FM FM / AM
Net weight: 0.75 kg
Tamper monitoring: Yes
IP protection class: 55
Sensor type: Independent duplex PIR unit
Voltage monitoring: Yes
Language of instructions: DE, UK, FR, NL, DK
Packaging language: DE, UK, FR, NL, DK, PL, SE, ES
Status display: LED
Environmental class: III

Scope of delivery:

  • 1x Outdoor motion detector
  • 1x Manual
  • 1x Installation material
  • 2x Battery 3V CR123 (FU2998)
Wireless motion detector

Wireless motion detector

The wireless motion detectors are extensions of the Secvest 2WAY wireless alarm panel. They are passive infrared motion detectors that detect moving (body) heat in the room and report this to the respective wireless alarm panel. Thanks to inconspicuous design, they can easily be integrated in the living environment. ...
