We expressly recommend having this product installed by a certified specialist.

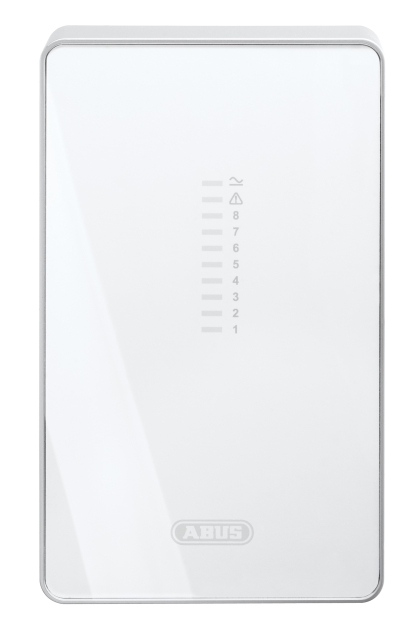

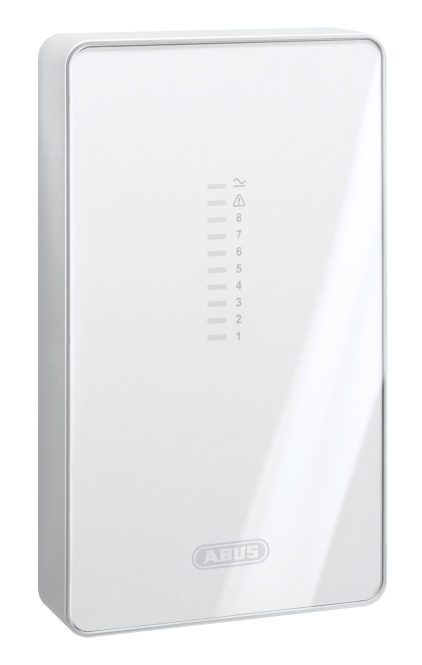

Expanding Secvest's functional scopeThe Secvest wireless accessory module is an optional Secvest accessory. The wireless accessory module (WAM) can also be integrated into wired systems, such as the Terxon SX and Terxon MX, allowing additional wireless components to be used in wired alarm systems. The module has 6 main functions. The WAM is powered by a 12 V power supply unit.Repeater module (doubles the range): the WAM forwards signals from up to 8 detectors to the alarm panel, essentially doubling the wireless transmission range.Output module (e.g. home automation):up to 4 outputs (switching capacity 500 mA) in the WAM are activated for programmed events.Transmitter/receiver module: in addition to the 4 outputs, the alarm inputs on the WAM (1 x alarm, 1 x tampering) are utilised.Sounder module: the WAM can be used to connect an external sounder (sounder & flashing light) to the Secvest (meaning a wired sounder will also respond to wireless signals).Sounder transmitter/receiver: the WAM can be used to integrate a wireless sounder into a wired alarm system.Receiver module: using a WAM, 8 wireless components can be integrated into any wired system. The WAM receives the signals from the wireless detector and activates the alarm system. This allows the Secvest detectors to be integrated into the Terxon alarm control panel.
