U-lock Granit X-Plus 540 Lighted key Holder USH 540
Maximum Security
Test Seal of the Svensk Brand- och Säkerhetscertifiering AB – Stockholm, Sweden Test Seal of the Norges Forsikringsforbund – Oslo, Norway Test Seal of the Dansk Varefakta Naevn – Copenhagen, Danmark Test Seal of the Vahinkovakuutusyhtiöiden Hyväksymä – Helsinki, Finland Test Seal of ANWB, RAI, TNO – Delft, The Netherlands Test Seal of Sold Secure – Northants, Great Britain Test Seal of OSIMZ, Moscow, Russia Test Seal of VdS – Cologne, Germany ABUS Seal for Ice Spray Test – Volmarstein, Germany
||||

U-Lock 540/160HB230

As secure as Fort Knox

Technology:

  • 13 mm, hardened steel square parabolic shackle (patented)
  • Double bolted shackle in the lock body
  • ABUS power cell technology (patented) offers highest protection against hitting and pulling attacks
  • The shackle, the case as well as supporting elements of the locking mechanism are made of special hardened steel
  • ABUS X Plus cylinder for highest protection against manipulations, e.g. picking
  • Two keys are supplied with the lock, one LED-lighted
  • Automatic keyhole cover against dirt and corrosion

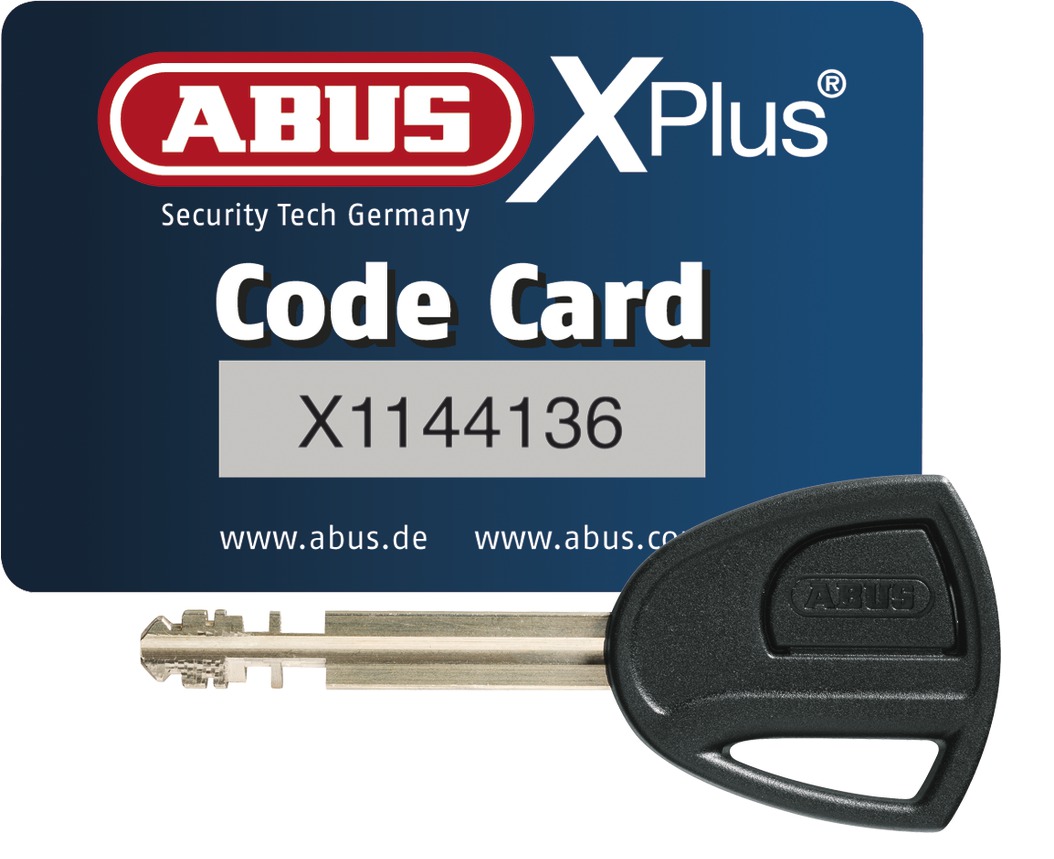

  • ABUS Code Card for additional or replacement key

Operation and use:

  • Very good protection at high theft risk
  • Recommended for securing high quality bicycles
  • The longer the shackle, the easier the bicycle can be locked to a fixed object

Transport:

  • EaZy KF – Bracket with comfortable one hand operation for easy mounting on round frames with a diameter of 28-36 mm
  • USH 540 – Universal bracket with easy mounting on round frames, with a diameter of 15-35 mm

Tips:

  • This lock can be ordered keyed alike to other locks. This means several locks would match one key, respectively key code

Technical data:

Art. no.: 11161
Level: 15
Weight [g]: 1450
Height [mm]: 230
Width [mm]: 108
diameter [mm]: 13

Variants:

U-Lock 540/160HB230
Art. no. 11161
Level: 15
Weight [g]: 1450
U-Lock 540/160HB300
Art. no. 11179
Level: 15
Weight [g]: 1656
U-Lock 540/160HB230+EaZy KF
Art. no. 11183
Level: 15
Weight [g]: 1556
U-Lock 540/160HB300+EaZy KF
Art. no. 11185
Level: 15
Weight [g]: 1762
U-Lock 540/160HB300+USH540
Art. no. 11188
Level: 15
Weight [g]: 1786
U-Lock 540/160HB230+USH540
Art. no. 11186
Level: 15
Weight [g]: 1580

Downloads:

Bügelschlösser

U-locks

The U-lock is classics when it comes to securing bikes, and for good reason. Solid materials and no moving parts outside the lock mechanism are an excellent starting point for the strongest resistance possible. Decades of experience with the U-lock have made us experts in combining the most resistant materials with unique technology, and consequently one of the leading U-locks manufacturers. By the way: the police and insurance companies ...
