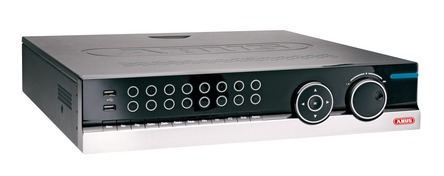

8-Channel NVR 160 Mbit (40/120) (Art. no. TVVR35011)

Description
Technical data
Scope of delivery
Downloads

Special product features:

Recording and management of video streams of up to 160 MBit/s data throughput
Corresponds to up to eight ABUS network cameras with HD resolution (1080p)
4-channel live display at 2.0 MPx resolution
Installation wizard for easy setup

Central management of surveillance images with ABUS CMS software
Mobile access using the iDVR app
ONVIF compatible
Max. 4 alarm inputs

Rely on this network recorder (NVR) for recording and management of medium-sized IP-based video systems. The data is transferred from the network camera to the recorder via LAN; transmission to the monitor is via the VGA output.

160 MBit/s data throughput for up to eight HD cameras
The performance of the NVR is determined in part by the max. data throughput. This NVR starter recorder can operate at 160 MBit/s – which corresponds to up to eight cameras with HD 1080p resolution and 25 frames/s.

Great performance, compact setup
The NVR is a stand-alone system that doesn’t need an operating system. . Triplex operation enables simultaneous live display, recording, and operation. Live display of four channels (1080p) is possible; remote access is via Internet browser, CMS software, or app.

Recording and central management of several systems
Data is saved to up to two S-ATA hard drives (not included in the scope of delivery). The CMS Central Monitoring Software, with its intuitive software interface, is ideal for central management of several locations. It allows the user to use a PC to access the NVRs at any number of locations, such as in companies with several branches.

Surveillance center including alarm and security functions
The NVR features intelligent alarm and security functions to enable an appropriate response to incidents. For example, an e-mail with images can be sent to predefined addresses in case of an alarm or detection of motion.

A stand-alone surveillance center that does not depend on PC systems
The starter NVR with 160 Mbit/s is the right solution for IP-based video recording on stand-alone, fully equipped recorders. Since no operating system is required, the NVR is protected from viruses and Internet attacks. Professional IT administration, which is often too expensive in small and medium-sized businesses, is unnecessary.

Technical data:

Art. no.:	TVVR35011
Compliant with loi Sarkozy (FR only):	Yes
Total network throughput (input/output):	160 MBit/s (40 MBit/s / 120 MBit/s)
ONVIF:	Profile S
Dimensions:	(WxHxD) 470 x 95 x 450 mm
Alarm inputs (NO/NC):	4
Alarming:	Acoustic warning signal, OSD signal, e-mail
Views:	1 / 4 / 6 / 8 / 9 / 16
Audio:	Line In: 1 x Cinch (2,0 V p-p, 1000 Ω), Audio Out: 2 x Cinch (600 Ω)
Recording resolution @ frame rate per camera (PAL):	8 x 1080p @ 40 MBit/s
Live view resolution:	HDMI: 1920 x 1080 / 60Hz (1080p), 1600 × 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz - VGA: 1920 x 1080 / 60Hz (1080p),1600 × 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz - BNC Output: PAL: 704 × 576 (4CIF), NTSC: 704 × 480 (4CIF)
Recording modes:	Manual, schedule, motion detection, alarm, motion detection and alarm, motion detection or alarm
Recording duration at max. resolution and frame rate:	48 hours/TB
Recording duration at min. resolution and frame rate:	72 hours/TB
User levels:	2 (max. 31 user)
Operating mode:	Triplex
Width:	470 mm
Storage:	2 x USB 2.0
DDNS:	Yes
Total frame rate (PAL):	200
Simultaneous network access:	128 camera connections
Height:	95 mm
Length:	450 mm
Power consumption:	<13>
Max. operating temperature:	55 °C
Min. operating temperature:	-10 °C
Mobile access:	iDVR (Apple iOS & Android)
Monitor outputs:	1 x VGA, 1 x main BNC, 1 x HDMI
Network access:	RJ45 10/100/1000 Mbps
Network functions:	Live view, playback, data export, settings
Network cameras:	ABUS network cameras
NTP:	Yes
Relay output:	1 (maximum load: 12 V DC / 1 A)
Software:	ABUS CMS software
DC voltage supply:	12 V
Storage medium:	2 x SATA HDD port
OSD language:	German, English, French, Danish, Dutch, Polish, Italian
Control:	Mouse, remote control
Search modes:	By event, date and time
Analog video channels:	0
Total video channels:	8
HD-SDI video channels:	0
IP video channels:	8
Pre-alarm/post-alarm memory:	0 - 900 / 5 - 900 s
Certifications:	CE

Scope of delivery:

1x Power supply unit
1x USB mouse
2x Hard drive cable
1x Remote control (batteries not included)
1x Recorder software (on CD)
1x User guide
1x Installation material

General Downloads:

Additional Information:

Software:

Installation Software
- ABUS CMS Software

  ABUS CMS Software
  Version: V2.02.21
  Release date: 22.05.2013
  Filename: ABUS CMS Softwrae (ABUS CMS Software V2.02.21_05-2013.zip)
  Changes:
  1. Compatible with the recorder TVVR60011 and TVVR60021
  2. Support of Windows 8 32/64-bit
  3. Readability of the menu bar improved
- v.1.0

  MAC-OSX Plug-in compatible for:
  • TVVR35001, TVVR35011, TVVR45021, TVVR45030, TVVR60011, TVVR60021
  • TVVR41200, TVRR41210, TVVR41220
  • TVHD80000, TVHD80010, TVHD80100, TVHD80110, TVHD80120
  • TVIP52502, TVIP72000, TVIP81000, TVIP81100, TVIP82000, TVIP82100
  • TVVR30004, TVVR36000
  • TVIP11560, TVIP41500, TVIP61500, TVIP61550

  History
  Version: v1.0
  Release date: 03.11.2014
  File name:
  Description:
  The plug-in enables to display H.264/MPEG-4 video-streams for live view and remote playback via the Safari browser.

  Notice:
  MAC OSX browser plug-in compatible for MAC OSX 10.9 (Mavericks) and 10.10 (Yosemite).
- v8.0.22

  Version: V8.0.22
  Release date: 08.12.2014
  Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)
  Changes:
  1. New design of user interface
  2. Full-text search function for easy filtering the result list
  3. Direct modification of IP settings via IP-Installer:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900,FUAA11000,FUAA50000
  4. Network search in all subnet’s within local network:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900
  5. Language settings of local operating system will be used by the application
  Improvements:
  1. Network search speed and detection of firmware version further optimized
Firmware
- V3.0.4

  Firmware compatible to: TVVR35011 / TVVR45021 / TVVR45030 / TVVR60011 / TVVR60021

  History

  Version: V3.0.4
  Release Date: 16.12.2014
  File name: TVVR35011_V3.0.4.cap (TVVR35011_V3.0.4.zip)

  Changes:
  1. Added support for hemispheric camera TVIP83900 and TVIP86900.
  Please note: Motion detection support only available for camera channel1. Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.
- V3.0.2

  Version: V3.0.2
  Release date: 11.08.2014
  File name: TVVR35011_V3.0.2.cap (TVVR35011_V3.0.2.zip)
  Changes:
  1. Compatible with ABUS network camera TVIP11560 and TVIP61550
  2. Native support for Internet Explorer 11 (no longer requires to activate compatibility mode)
  3. SMTP function now supports TLS encryption mode when activating SSL
  4. Random generated device ports by UPnP will be submitted to ABUS-Server
  Improvements:
  1. Privacy masks for TVIP52502 will no longer overwritten when programming camera into recorder

  Version: V3.0.1
  Release date: 17.12.2013
  File name: TVVR35011_V3.0.1.cap (TVVR35011_V3.0.1.zip)
  Changes:
  1. Compatible with ABUS network camera TVIP52502
  2. Onvif Compatiblity added
  3. Support of Russia added
  4. Stream settings can be changed in the web interface
  5. E-Mail Test Button for the web interface
  Improvements:
  1. Automatic setup of motion detection
  Models: TVIP62000, TVIP62500
  2. PTZ Tour for TVIP22500
Helper Software
