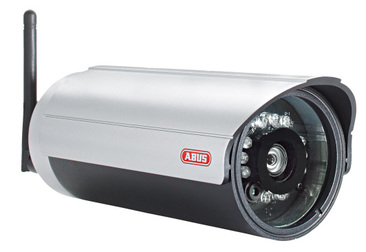

Outdoor IR VGA WLAN network camera (Art. no. TVIP60550)

Description
Technical data
Scope of delivery
Downloads
Accessories

Special product features:

VGA resolution: 640 × 480 @ 25 fps
Weatherproof camera housing (IP54)
Day/night switching with electromechanical IR swivel filter (ICR)

IR LEDs for night vision
Quad stream (H.264, MPEG-4, MJPEG, 3GPP)
WLAN n standard

The outdoor IR VGA WLAN network camera is a VGA network camera that has been specially developed for efficient front door video surveillance. Thanks to protection class IP54, it can also be used in covered outdoor areas without any additional protective housing. It supplies color images with a resolution of up to 640 x 480 pixels. Video data is transmitted wirelessly via WLAN. Full-resolution images are transmitted in real time (25 frames/second). At the same time, video data can be stored in the 4-channel video buffer in the local network through the LAN/WLAN connection on the router. With a 53.1° angle of view, the camera can capture much more than the door area when positioned accordingly. Legally sensitive areas of the image can be hidden using privacy masking. With its high light sensitivity, automatic day/night switching with IR swivel filter, 12 integrated IR LEDs, and image correction functions such as BLC, AGC, or AWB, the camera always delivers perfect recordings in both changing light conditions and darkness.

Technical data:

Art. no.:	TVIP60550
Dimensions:	(WxHxD) 73x73x200 mm
Alarming:	HTTP, SMTP, FTP, network drive, e-mail
Number of streams:	H.264, MPEG-4, MJPEG
Resolution modes:	640 x 480 pixel
Motion detection:	3 zones
Image sensor:	1/4" Progressive Scan CMOS
Pixels (effective):	640(H) x 480(V) pixel
Pixels (total):	640(H) x 480(V) pixel
Frame rate:	MJPEG: 25 frames/s @ 640x480, MPEG-4: 25 frames/s @ 640 x 480, H264 25 frames/s @ 640 x 480 fps
Width:	73 mm
Focal length:	4,0 mm
Digital zoom:	4
Electronic shutter:	1/5, 1/15, 1/30
Backlight compensation:	BLC
Height:	73 mm
Horizontal angle of view:	53,1 °
IR LEDs:	12
IR range:	10 m
Camera type:	Day/night
Length:	200 mm
Power consumption:	3.6 W
Max. resolution @ frame rate:	640 x 480 @ 25 fps
Max. operating temperature:	50 °C
Min. operating temperature:	-10 °C
Minimum illumination (color):	0.8
Minimum illumination (IR):	0
LAN network access:	RJ45
WLAN network access:	802.11 b/g/n
Network camera protocols:	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, TRSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Lens:	F1.5, 4.0 mm
Private zones:	yes
IP protection class:	54
DC voltage supply:	12 V
Power consumption:	300 mA
Day/night switching:	IR cut is swivelled electromagnetically
Encryption:	HTTPS, WEP, WPA-PSK, WPA2-PSK
Amplifier control:	AGC
Video compression:	H.264, MPEG-4, MJPEG
Pre-alarm/post-alarm memory:	7 pre-alarm images, 1 event image, 7 post-alarm images s
White balance:	yes
Certifications:	CD, RoHS, C-Tick

Scope of delivery:

1x Network camera
1x Power supply unit
1x 1-meter network cable
1x WLAN antenna
1x VMS Express software
1x Installation CD
1x User guide (on CD)
1x Quickstart manual
1x Wall/ceiling mount incl. installation material

General Downloads:

Additional Information:

Software:

Installation Software
- ABUS VMS Websoftware v7.7.12 Win 32/64-Bit

  ABUS VMS Software

  History
  Version: 7.7.12
  Release Date: 30.09.2014
  Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

  Optimizations:

  1. Faster search results within new version of ABUS IP-Installer
  2. Solved issue for audio playback when using Windows 8
  3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
  4. Audio playback enabled for reader software (database export)
  5. Memory utilization for TV3300-TV3310 improved
  6. Solved issue when launching VMS without any connected network interface
  7. Video streaming for AXIS network cameras corrected
  8. Fixed problem on launching reader software (database export)
  9. Solved issue on fast open/close masking settings within configuration menu

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
  TV7220, TV7221, TV7222, TV7223, TV7230, TV7240
- ABUS VMS Websoftware V6.11.1963 Win 32/64-Bit

  ABUS VMS Software
  History
  Version: 6.11.1963
  Release Datum: 02.11.2011
  Info:
  32 Bit + 64 Bit Version
  For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
  Changes:
  Supports the network camera TVIP62000
  Several runtime errors solved for network cameras
  Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
- ABUS VMS Plugin V 510
- v8.0.22

  Version: V8.0.22
  Release date: 08.12.2014
  Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)

  Changes:
  1. New design of user interface
  2. Full-text search function for easy filtering the result list
  3. Direct modification of IP settings via IP-Installer:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900,FUAA11000,FUAA50000
  4. Network search in all subnet’s within local network:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900
  5. Language settings of local operating system will be used by the application

  Improvements:
  1. Network search speed and detection of firmware version further optimized
Recording Software
- ABUS VMS Express v7.8.14 Win 32/64-Bit

  Version: 7.8.14
  Release Date: 08.12.2014
  Filename: Software ABUS VMS Express, Version 7.8.14

  Changes:

  1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
  Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.

  2. Error message can be disabled via system settings menu "miscellaneous".

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TVIP86300, TVIP86900
- ABUS VMS Express V6.11.1963 Win 32/64-Bit

  ABUS VMS Software
  History
  Version: 6.11.1963
  Release Datum: 02.11.2011
  Info:
  32 Bit + 64 Bit Version
  For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
  Changes:
  Supports the network camera TVIP62000
  Several runtime errors solved for network cameras
  Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
- ABUS VMS Basic-Professional-Enterprise v7.8.14 Win 32/64-Bit

  Version: 7.8.14
  Release Date: 08.12.2014
  Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.8.14, Software ABUS VMS Enterprise Demoversion, Version 7.8.14

  Changes:

  1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
  Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.
  2. Adding support for installer logo (PNG/JPG, 128x64px) via system settings. The software needs to be restarted after adding
  a new logo.

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100,
  TVIP86300, TVIP8600
- ABUS VMS Basic-Professional-Enterprise V6.11.1963 Win 32/64-Bit

  ABUS VMS Software
  History
  Version: 6.11.1963
  Release Datum: 02.11.2011
  Info:
  32 Bit + 64 Bit Version
  For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
  Changes:
  Supports the network camera TVIP62000
  Several runtime errors solved for network cameras
  Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
- ABUS VMS Enterprise Demo v7.5.2408 Win 32/64-Bit

  ABUS VMS Software

  History
  Version: 7.7.12
  Release Date: 30.09.2014
  Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

  Optimizations:

  1. Faster search results within new version of ABUS IP-Installer
  2. Solved issue for audio playback when using Windows 8
  3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
  4. Audio playback enabled for reader software (database export)
  5. Memory utilization for TV3300-TV3310 improved
  6. Solved issue when launching VMS without any connected network interface
  7. Video streaming for AXIS network cameras corrected
  8. Fixed problem on launching reader software (database export)
  9. Solved issue on fast open/close masking settings within configuration menu

  Compatible network cameras:

  TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
  TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
  TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
  TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
  TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
  TV7220, TV7221, TV7222, TV7223, TV7230, TV7240
Firmware
- 1610w

  Release Version
