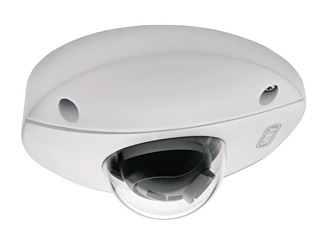

Vandal-proof HD 2.0 MPx network dome camera front view Vandal-proof HD 2.0 MPx network dome camera front view Vandal-proof HD 2.0 MPx network dome camera Example of application
||||||

Vandal-proof HD 2.0 MPx network dome camera (Art. no. TVIP72000)

Special product features:

  • HD 2.0 MP resolution: 1600 × 1200 @ 12 fps
  • Vandal-proof LAN dome camera (IP54)
  • Large 71° horizontal angle of view
  • Vandal-proof, extra-flat housing design
  • Power over Ethernet (PoE)

Buildings or places with low ceilings require special cameras - such as the vandal-proof HD 2.0 MPx network dome camera from ABUS Security-Center. Thanks to its robust metal housing and IP54protection class, these cameras can withstand both external attacks and poor environmental conditions. The wide angle of view (71°) and special housing design with one levelled side ensure complete surveillance without any sloping image areas. A corridor can then be monitored right to the end without any blind spots – the camera follows the line of the ceiling. The camera is equipped with a HD resolution of 2.0 megapixels, which can also be reduced if necessary. In order to optimise the image display, recording and mobile image access, the camera streams in various different formats simultaneously. As with all ABUS network cameras, VMS Express video management software is also included with this model. The nine-channel software is characterised by simple operation, clarity and swift automatic installation.

Technical data:

Art. no.: TVIP72000
Dimensions: (HxØ) 49 x112 mm
Alarming: email
Number of streams: 2
Resolution modes: 1600 x 1200, 1600 x 900, 1280 x 960, 1280 x 720, 800 x 600, 640 x 480, 704 x 576, 352 x 288 pixel
Image sensor: 1/3" Progressive Scan CMOS
Pixels (effective): 1600(H) x 1200(V) pixel
Pixels (total): 1600(H) x 1200(V) pixel
Frame rate: 1600 x 1200 @ 12 fps, 1280 x 720 @ 25 fps fps
Width: 112 mm
Focal length: 4,0 mm
Digital zoom: Yes
Electronic shutter: Yes
Backlight compensation: BLC
Height: 49 mm
Horizontal angle of view: 71 °
Camera type: Network dome camera
Max. resolution @ frame rate: 1600 x 1200 @ 12 fps
Max. operating temperature: 50 °C
Max. humidity: 85 %
Min. operating temperature: 0 °C
Minimum illumination (color): 0,5
LAN network access: RJ45
Network camera protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTCP, SMTP, NTP
Lens: F1.2, 4.0 mm
PoE: 802.3af
IP protection class: 54
Software: ABUS VMS, Internet Explorer 6
DC voltage supply: 12 V
Power consumption: 250 mA
Amplifier control: Yes
Video compression: H.264, MJPEG
Pre-alarm/post-alarm memory: 3 post-alarm images s
White balance: Yes
Certifications: CE, RoHS, Reach

Scope of delivery:

  • 1x Network camera
  • 1x Power supply unit
  • 1x 1-meter network cable
  • 1x VMS Express software
  • 1x Installation CD
  • 1x User guide (on CD)
  • 1x Quickstart manual

General Downloads:

Additional Information:

Software:

  • Installation Software

    • ABUS VMS Websoftware v7.7.12 Win 32/64-Bit
      ABUS VMS Software

      History
      Version: 7.7.12
      Release Date: 30.09.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

      Optimizations:

      1. Faster search results within new version of ABUS IP-Installer
      2. Solved issue for audio playback when using Windows 8
      3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
      4. Audio playback enabled for reader software (database export)
      5. Memory utilization for TV3300-TV3310 improved
      6. Solved issue when launching VMS without any connected network interface
      7. Video streaming for AXIS network cameras corrected
      8. Fixed problem on launching reader software (database export)
      9. Solved issue on fast open/close masking settings within configuration menu



      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
      TV7220, TV7221, TV7222, TV7223, TV7230, TV7240
    • ABUS VMS Websoftware V6.11.1963 Win 32/64-Bit
      ABUS VMS Software
      History
      Version: 6.11.1963
      Release Datum: 02.11.2011
      Info:
      32 Bit + 64 Bit Version
      For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
      Changes:
      Supports the network camera TVIP62000
      Several runtime errors solved for network cameras
      Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
    • ABUS VMS Plugin V 510
    • v.1.0
      MAC-OSX Plug-in compatible for:
      • TVVR35001, TVVR35011, TVVR45021, TVVR45030, TVVR60011, TVVR60021
      • TVVR41200, TVRR41210, TVVR41220
      • TVHD80000, TVHD80010, TVHD80100, TVHD80110, TVHD80120
      • TVIP52502, TVIP72000, TVIP81000, TVIP81100, TVIP82000, TVIP82100
      • TVIP11560, TVIP41500, TVIP61500, TVIP61550

      History
      Version: v1.0
      Release date: 03.11.2014
      File name: DVR_NVR_IPC_MAC_OSX_Plug-In_v.1.0_11-2014.zip
      Description:
      The plug-in enables to display H.264/MPEG-4 video-streams for live view and remote playback via the Safari browser.

      Notice:
      MAC OSX browser plug-in compatible for MAC OSX 10.9 (Mavericks) and 10.10 (Yosemite).
    • v8.0.22
      Version: V8.0.22
      Release date: 08.12.2014
      Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)

      Changes:
      1. New design of user interface
      2. Full-text search function for easy filtering the result list
      3. Direct modification of IP settings via IP-Installer:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900,FUAA11000,FUAA50000
      4. Network search in all subnet’s within local network:
      TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
      TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
      TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
      TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
      TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
      TVIP86300, TVIP86900
      5. Language settings of local operating system will be used by the application

      Improvements:
      1. Network search speed and detection of firmware version further optimized

  • Recording Software

    • ABUS VMS Express v7.8.14 Win 32/64-Bit
      Version: 7.8.14
      Release Date: 08.12.2014
      Filename: Software ABUS VMS Express, Version 7.8.14



      Changes:

      1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
      Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.

      2. Error message can be disabled via system settings menu "miscellaneous".


      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TVIP86300, TVIP86900
    • ABUS VMS Express V6.11.1963 Win 32/64-Bit
      ABUS VMS Software
      History
      Version: 6.11.1963
      Release Datum: 02.11.2011
      Info:
      32 Bit + 64 Bit Version
      For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
      Changes:
      Supports the network camera TVIP62000
      Several runtime errors solved for network cameras
      Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
    • ABUS VMS Basic-Professional-Enterprise v7.8.14 Win 32/64-Bit
      Version: 7.8.14
      Release Date: 08.12.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.8.14, Software ABUS VMS Enterprise Demoversion, Version 7.8.14

      Changes:

      1. Added support for hemispheric camera TVIP86300 and TVIP86900. Motion detection support only available for camera channel1.
      Please note: Only when setting camera to "real-time mode deactivated", all video streams can be accessed at the same time.
      2. Adding support for installer logo (PNG/JPG, 128x64px) via system settings. The software needs to be restarted after adding
      a new logo.


      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100,
      TVIP86300, TVIP8600
    • ABUS VMS Basic-Professional-Enterprise V6.11.1963 Win 32/64-Bit
      ABUS VMS Software
      History
      Version: 6.11.1963
      Release Datum: 02.11.2011
      Info:
      32 Bit + 64 Bit Version
      For free with all ABUS Security-Center network cameras and 4 to 8 channel PCI cards
      Changes:
      Supports the network camera TVIP62000
      Several runtime errors solved for network cameras
      Direct access for ABUS network cameras via the management system is now independent of the http port (default port 80)
    • ABUS VMS Enterprise Demo v7.5.2408 Win 32/64-Bit
      ABUS VMS Software

      History
      Version: 7.7.12
      Release Date: 30.09.2014
      Filename: Software ABUS VMS Basic_Professional_Enterprise, Version 7.7.12, Software ABUS VMS Enterprise Demoversion, Version 7.7.12

      Optimizations:

      1. Faster search results within new version of ABUS IP-Installer
      2. Solved issue for audio playback when using Windows 8
      3. Automatic audio pre-configuration of connected ABUS IP cameras for usage with VMS software
      4. Audio playback enabled for reader software (database export)
      5. Memory utilization for TV3300-TV3310 improved
      6. Solved issue when launching VMS without any connected network interface
      7. Video streaming for AXIS network cameras corrected
      8. Fixed problem on launching reader software (database export)
      9. Solved issue on fast open/close masking settings within configuration menu



      Compatible network cameras:

      TVIP10000, TVIP10001, TVIP10050, TVIP10051, TVIP10500, TVIP10550, TVIP11000, TVIP11050, TVIP11500, TVIP11501, TVIP11502, TVIP11550, TVIP11551,
      TVIP11552, TVIP11560, TVIP20000, TVIP20001, TVIP20050, TVIP20051, TVIP20500, TVIP20550, TVIP21000, TVIP21050, TVIP21500, TVIP21501, TVIP21502,
      TVIP21550, TVIP21551, TVIP21552, TVIP22500, CASA20550, TVIP31000, TVIP31001, TVIP31050, TVIP31500, TVIP31501, TVIP31550, TVIP31551, TVIP32500,
      TVIP40000, TVIP41500, TVIP41550, TVIP51500, TVIP51550, TVIP52500, TVIP52501, TVIP52502, TVIP60550, TVIP61500, TVIP61550, TVIP62000, TVIP62500,
      TVIP70000, TVIP71500, TVIP71501, TVIP71550, TVIP71551, TVIP72000, TVIP72500, TVIP81000, TVIP81100, TVIP82000, TVIP82100, TV7203, TV7204, TV7206,
      TV7220, TV7221, TV7222, TV7223, TV7230, TV7240

Required accessories:

DC 2-Pin Adapter
TVAC35800
