Special product features:

• Recorder and monitor combined in one space-saving unit
• Real-time recording at full resolution: 4CIF @ 25 fps
• Space-efficient H.264 data compression

• Video & audio recording
• Network connection for worldwide access

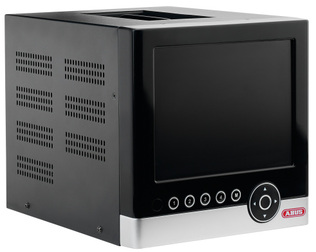

The 4-channel 8" all-in-one digital recorder with H.264 offers you "all-inclusive" video monitoring in confined spaces. It combines a 4-channel digital recorder with highly-efficient H.264 data compression and an 8" TFT monitor in compact, space-saving housing.
The advanced compression saves storage space on the hard drive and compresses the video data to be transmitted smoothly and with high image quality over the network (LAN, Internet). Thanks to its small size of just 210 x 210 x 249 mm, the 4-channel all-in-one digital recorder (DVR) is in demand wherever there is insufficient space for a large monitor plus separate recorder: For example, in kiosks and filling stations, at sales counters or at cash desks. With little required space, low weight and fast, uncomplicated set up via onscreen display and mouse or via the included remote control, the all-in-one is the first choice recording solution for mobile or short term uses. It simply has to be connected to up to 4 cameras and there you go; the complete surveillance system is ready.
The recorder provides a maximum resolution of 704 x 576 pixels depending on the frame rate setting and real time recording depending on the resolution setting with up to 25 frames per second. Audio data can also be recorded. Data storage takes place on a 3.5" SATA hard drive (not included). Using the available USB interface, a quick and simple data export is also possible.
Speed dome cameras are connected at the RS-485 port and can be simply operated with a mouse. Alarming occurs via the OSD display or email. If required, a spot monitor can also be connected. This will display the relevant camera in full-screen in the event of an alarm or if motion is detected. Besides two video outputs (monitor, spot monitor), the device offers four alarm inputs and an Ethernet network connection for access to the networks of up to 24 users at the same time (worldwide via Eytron server or DynDNS). Thus, this DVR meets the requirements of a compact all-in-one solution at all points

Technical data:

Scope of delivery:

• 1x Power adapter and cable
• 1x USB mouse
• 1x Remote control (without batteries)
• 1x CD with software
• 1x User manual
