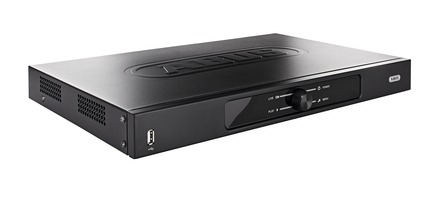

16-channel 650 TVL realtime digital video recorder (Art. no. TVVR41220)

Description
Technical data
Scope of delivery
Downloads

Special product features:

Real-time recording at 960H resolution
Live display of all channels simultaneously at maximum resolution
Installation wizard for easy initial start-up
Memory-saving H.264 data compression
Supports up to 2 SATA hard drives

Video and audio recording
Network connection for worldwide access
Mobile access via iDVR app
Max. 16 alarm inputs

Recording solution for analogue surveillance cameras
The powerful 16-channel digital recorder (DVR) allows simultaneous management of up to 16 analogue cameras. The high-resolution analogue video signals (650 TVL) are compressed with H.264 technology and saved in excellent image quality. The image data takes is ideal for network streaming (data access via LAN/WLAN).

Up to 2 SATA hard drives can be integrated for maximum memory space
The recorder is designed for 2 SATA hard drives (not supplied). The recordings from all cameras can be varied from QCIF (176 x 144 pixels) to WD1 (960 x 576 pixels) at 25 frames per second. Recording is can be started manually, according to a schedule, when motion is detected, when a detector is triggered, or through a combination of individual modes, and includes video and audio data. Using the 4 alarm inputs, suitably wired detectors (NO or NC) can be connected, and sounders can be activated via a relay output in the event of an alarm. PTZ cameras can be controlled via an RS 485 interface. The recorder features triplex operation, where simultaneous live view, playback and data export are possible. The data is stored via the USM connection or the network.

Access anywhere in the world via ABUS-Server
Setting up the recorder via ABUS-Server (www.abus-server.com) means that a DDNS service can be used free of charge to access the recorder via the internet at any time. Access to live pictures and recordings is possible, regardless of changing IP addresses.

Intuitive operation and simple installation
The jog/shuttle allows reliable and intuitive operation. A mouse for operating the on-screen display is supplied. The installation wizard helps you set up and use the recorder.

Technical data:

Art. no.:	TVVR41220
Compliant with loi Sarkozy (FR only):	Yes
Total network throughput (input/output):	60 MBit/s (0 MBit/s / 60 MBit/s)
Dimensions:	440 x 275 x 45 mm
Alarm inputs (NO/NC):	16
Alarming:	Acoustic warning signal, OSD signal, e-mail
Views:	1 / 4 / 6 / 8 / 9
Audio:	Input: 4 x Cinch (2.0 V p-p, 1000Ω), Output: 1 x Cinch (600Ω)
Recording resolution @ frame rate per camera (NTSC):	352 x 288 @ 30 fps, 704 x 288 @ 30 fps, 704 x 576 @ 30 fps, 960 x 576 @ 30 fps
Recording resolution @ frame rate per camera (PAL):	352 x 288 (CIF) @ 25 fps, 704 x 288 (2CIF) @ 25 fps, 704 x 576 (4CIF) @ 25 fps, 960 x 576 (WD1) @ 25 fps
Recording modes:	Manual, schedule, motion detection, alarm, motion detection and alarm, motion detection or alarm
Recording duration at max. resolution and frame rate:	52 hours/TB
Recording duration at min. resolution and frame rate:	104 hours/TB
Operating mode:	Triplex
Width:	440 mm
Storage:	2 x USB 2.0
DDNS:	Yes
Total frame rate (PAL):	400
Simultaneous network access:	128 camera connections
Height:	45 mm
Hybrid-enabled:	No
Camera inputs:	16 x BNC (1.0 V p-p, 75 )
Analog compression levels:	6
Length:	275 mm
Power consumption:	<20 (without="" hdd)="">
Max. operating temperature:	55 °C
Min. operating temperature:	-10 °C
Monitor outputs:	Monitor: 1 x BNC (1,0 V p-p, 75 Ω), 1 x VGA; 1 x HDMI
Net weight:	4 kg
Network access:	RJ45 10/100 Mbps
Network functions:	Live view, playback, data export, settings
NTP:	Yes
PTZ protocols:	PELCO-D, PELCO-P, Samsung, LG-MULTIX
PTZ control:	RS-485
Relay output:	4 (Loading capacity: 12VDC/1A)
Software:	ABUS CMS software
AC voltage supply:	12 V
Storage medium:	2 x SATA HDD ports
OSD language:	German, English, French, Dutch, Danish, Polskia, Russia
Control:	Mouse
Search modes:	By event, date & time
Analog video channels:	16
Total video channels:	16
HD-SDI video channels:	0
IP video channels:	0
Video compression:	H.264
Pre-alarm/post-alarm memory:	0~30 sec. / 5 - 900 sec. s
Certifications:	CE

Scope of delivery:

1x Power supply unit and power cable
1x USB mouse
2x Hard drive cable
2x Server cabinet holder
1x Installation material
1x Recorder software (on CD)
1x User guide and quickstart manual

General Downloads:

Additional Information:

Software:

Installation Software
- ABUS CMS
- v.1.0

  MAC-OSX Plug-in compatible for:
  • TVVR35001, TVVR35011, TVVR45021, TVVR45030, TVVR60011, TVVR60021
  • TVVR41200, TVRR41210, TVVR41220
  • TVHD80000, TVHD80010, TVHD80100, TVHD80110, TVHD80120
  • TVIP52502, TVIP72000, TVIP81000, TVIP81100, TVIP82000, TVIP82100
  • TVIP11560, TVIP41500, TVIP61500, TVIP61550

  History
  Version: v1.0
  Release date: 03.11.2014
  File name: DVR_NVR_IPC_MAC_OSX_Plug-In_v.1.0_11-2014.zip
  Description:
  The plug-in enables to display H.264/MPEG-4 video-streams for live view and remote playback via the Safari browser.

  Notice:
  MAC OSX browser plug-in compatible for MAC OSX 10.9 (Mavericks) and 10.10 (Yosemite).
- v8.0.22

  Version: V8.0.22
  Release date: 08.12.2014
  Filename:IP-Installer-Setup.exe (ABUS_IP-Installer_v8.0.22.zip)
  Changes:
  1. New design of user interface
  2. Full-text search function for easy filtering the result list
  3. Direct modification of IP settings via IP-Installer:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900,FUAA11000,FUAA50000
  4. Network search in all subnet’s within local network:
  TVVR35011, TVVR45021, TVVR45030,TVVR60011,TVVR60021,TVHD80000,TVHD80010,TVHD80100,TVHD80110,TVHD80120,
  TVVR41200,TVVR41210,TVVR41220,TVVR36000, TVVR30004,TVVR35010,TVVR45020,TVVR60010,TVVR60020,
  TVVR50010,TVVR50011,TVVR50020,TVVR50021,TVVR41100,TVVR41110,TVVR41120,TVVR40000,TVVR40010,TVVR40020,TVVR40021,
  TVVR20000, TVVR20001,TVVR30000,TVVR30001,TVVR30002,TVVR30003
  TVIP11560,TVIP41500,TVIP52502,TVIP61500,TVIP61550,TVIP70000,TVIP72000,TVIP81000,TVIP81100,TVIP82000,TVIP82100,
  TVIP86300, TVIP86900
  5. Language settings of local operating system will be used by the application
  Improvements:
  1. Network search speed and detection of firmware version further optimized
Firmware
- V2.2.11

  Firmware compatible to: TVVR41220
  History
  Version: V2.2.10
  Release date: 21.11.2013
  Filename:TVVR41220_V2.2.10.cap (TVVR41220_V2.2.10.zip)
  Changes:
  1. Initial Firmware

  Version: V2.2.11
  Release date: 04.06.2014
  Filename:TVVR41220_V2.2.11.cap (TVVR41220_V2.2.10.zip)
  Changes:
  1. Native support for Internet Explorer 11 (no longer requires to activate compatbility mode)
  2. SMTP function now supports TLS encryption mode when activating SSL
  3. Random generated device ports by UPnP will be submitted to ABUS-Server
- V2.2.10
Helper Software
- DVR Player Software
