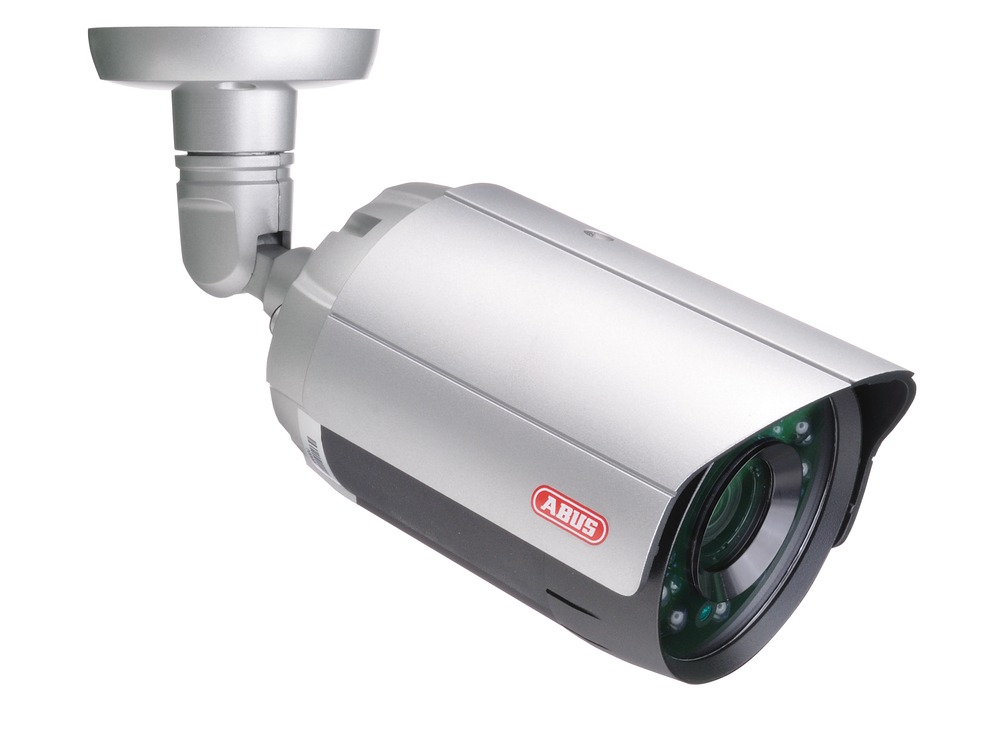

WDR Day/Night IR Vario 650 TVL Outdoor Camera (Art. no. TVCC60021)

Special product features:

  • 690 HTVL-E TVL resolution
  • Camera for use under extreme backlighting conditions
  • PIXIM image sensor and DSP technology
  • Illumination range can be regulated by up to 120 dB
  • Weatherproof camera housing and mount with internal cable routing (IP66)

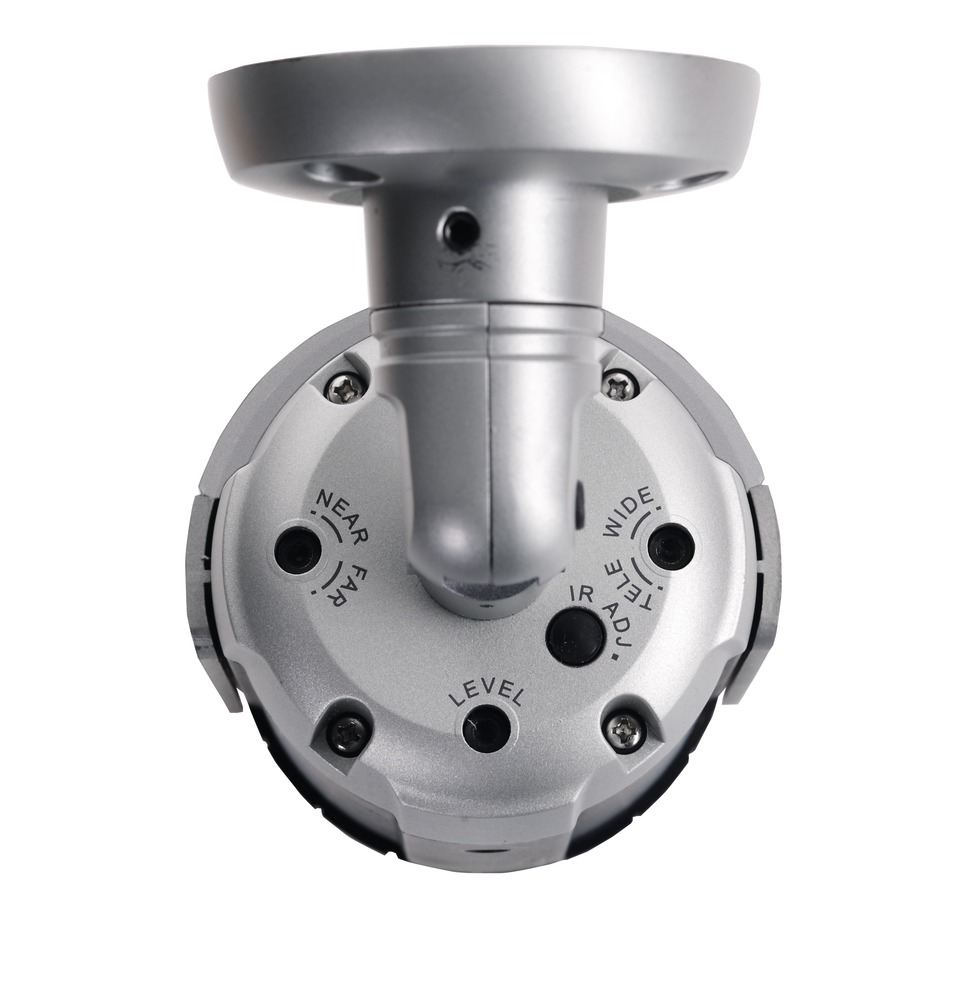

  • Manual zoom/focus control accessible from outside
  • Adjustable beam spread of the integrated IR LEDs

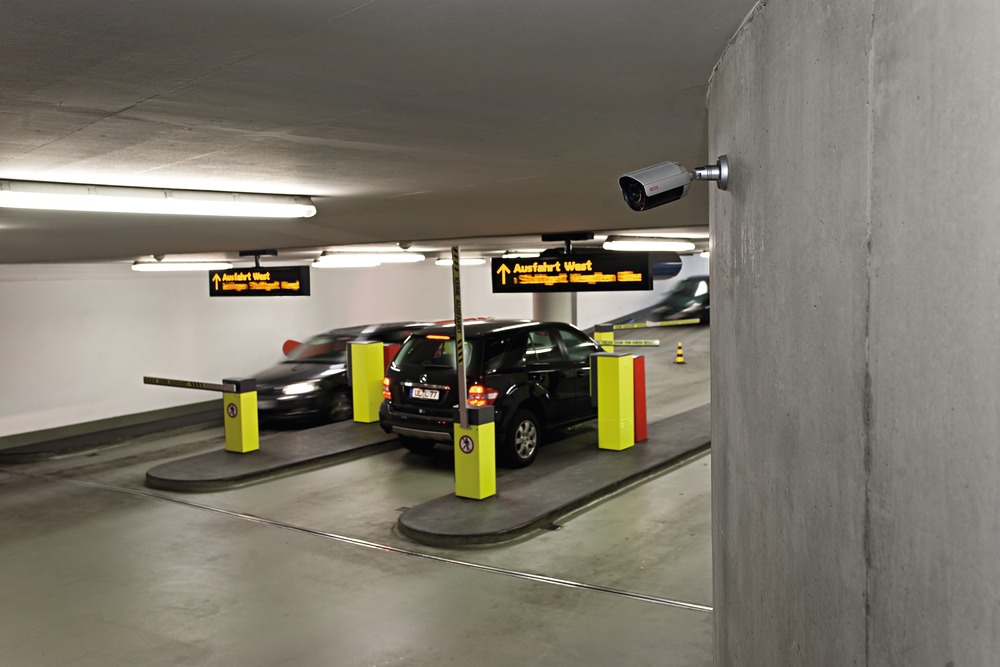

Every pixel counts - optimal exposure through superior sensor technology! With this water-proof variofocal IR outdoor camera, you can take images at high-end level in any weather. The top model boasts high-tech with visible value gain: The 1/3" Pixim DPS CMOS not only delivers 690 HTVL-E (Horizontal TVL-Effective), but also automatically controls the exposure of each individual pixel (optimal details in each area of the picture). In addition, WDR (Wide Dynamic Range) guarantees that details in dark and bright image areas remain visible (perfect for back light and high contrast as in e.g. parking garage exits). To achieve this, the camera takes several pictures with varying exposure times and then automatically merges them into a single image. In the dark, the color camera operates in B/W mode. Then, 30 integrated infrared LEDs (IR) handle the exposure (coverage up to 40 m). Beam angle and intensity of the LEDs can be matched to any environment. The focal length of the integrated variofocal lens with auto-Iris function ranges from 3.3 to 12 mm. Besides AI, the camera features DNR, AGC and ATW. The rugged design (IP66) guarantees problem-free use under wet or adverse outdoor conditions (without weather-proof housing). All cabling is completely internal, which provides optimal protection against weather, sabotage, and other influences. Ideal for quick, easy installation: focus, zoom, and IR angle can be directly adjusted from the outside.

Technical data:

Art. no.: TVCC60021
Dimensions: (WxHxD) 88x84x237.5 mm
Image sensor: 1/3" Pixim DPS CMOS
Pixels (effective): 758 x 540 pixel
Pixels (total): 768 x 548 pixel
Image integration: 0 ~ 4x (Auto)
Aperture at minimum illumination (color): 0.01
Aperture at minimum illumination (IR): 0.05
Aperture at minimum illumination (B/W): 0
Width: 88 mm
Focal length: 3,3 – 12,0 mm
DSP: Pixim Seawolf
Dynamic range (WDR): 120 (max.) dB
Electronic shutter: Auto
Backlight compensation: WDR
Height: 84 mm
Horizontal angle of view: 23,9 – 89,8 °
IR angle: 30 ~ 55 °
IR LEDs: 30
IR range: 40 m
Camera type: Outdoor Camera
Length: 238 mm
Max. operating temperature: 50 °C
Max. humidity: 0 ~ 85 %
Min. operating temperature: -10 °C
Minimum illumination (color): 0,3
Minimum illumination (IR): 0
Minimum illumination (B/W): 0,03
Lens: 3,3 – 12,0 mm
Lens control: AI
Optical zoom: 3x
Noise reduction: 3D DNR
IP protection class: 66
Signal-to-noise ratio: 50
DC voltage supply: 12 V
Packaging language: DE, UK, FR, NL, DK, IT, ES, PL, SWE
Power consumption: 480 mA
Day/night switching: IR cut can be swivelled electromagnetically
TVL: 690 HTVL-E TVL
Amplifier control: 60 (max.)
Video output: FBAS (1Vss, 75 Ohm)
Video system: PAL
White balance: ATW, 2000~7500K
Certifications: CE, RoHS, REACH
