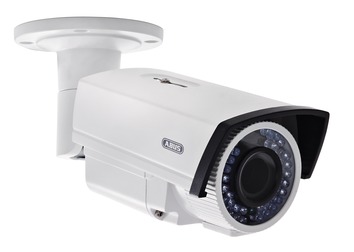

Universal Analog Tube IR 720 TVL (Art. no. TVCC91600)

Special product features:

  • Compact day/night vision outdoor camera
  • Various camera installation options - whether indoors or outdoors
  • Discreet design and high protection class (IP66)
  • Weatherproof camera housing and mount with internal cable routing
  • 720 TVL for detailed, high resolution
  • 3-axle mount
  • Variofocal lens 2.8 - 12.0 mm

High-resolution analogue technology for indoors and outdoors
This 720 TVL high-resolution infrared universal analog tube camera is the correct choice for every purpose. It features analog technology that is stable and quick to install. With the IP66 protection type, 2.8-12 mm variable lens and integrated infrared LEDs, it is the ideal surveillance camera for all environments, even in poorly lit locations and even in complete darkness – both indoors and in sheltered outdoor areas.

Suitable for unprotected outdoor use
The robust IP66 design guarantees use, even in difficult environmental conditions -perfect for outdoor use without any extra protective housing. The fully internal cable routing (in the bracket) also ensures optimum protection against poor weather conditions and tampering. Quick installation ensures that the focus, zoom and IR light (intensity/beam angle) can be adjusted from outside the device.

Auto backlight
The integrated WDR function compensates great differences in contrast and brightness and is therefore ideal for backlight.

Assured simplicity
The integrated 2.8 - 12 mm easy-focus lens can be set easily and comfortably for the monitored area using two-button operation, which leads to optimal image results.

Technical data:

Art. no.: TVCC91600
Dimensions: 267,2 x 105 x 86,9 mm
Connections: 1 x BNC, 1 x DC
Image sensor: 1/3" CMOS
Pixels (effective): 1280(H) x 960(V) pixel
Image integration: 4 x
Width: 86.9 mm
Focal length: 2,8 - 12,0 mm
Electronic shutter: 1/25 s - 1/25000 s (PAL), 1/30 s - 1/30000 s (NTSC)
Backlight compensation: BLC
Housing material: Metal
Height: 105 mm
Horizontal angle of view: 27,2 - 80 °
IR range: 20 m
Camera outputs: 1 x BNC, 1Vss
Camera type: tube camera
Length: 267.2 mm
Max. operating temperature: +60 °C
Max. humidity: 90 %
Min. operating temperature: -20 °C
Minimum illumination (color): 1
Minimum illumination (IR): 0
Minimum illumination (B/W): 0,14
Net weight: 1.35 kg
Lens control: AI
Optical zoom: 4x
Noise reduction: 3D DNR
IP protection class: 66
Signal-to-noise ratio: >62
DC voltage supply: 12,0 (+/- 10 %) V
Language of instructions: DE, UK, FR, NL, DK, ES, IT, PL, RU
Power consumption: 420 mA
Day/night switching: ICR/Color/B/W
TVL: 720 TVL
Amplifier control: AGC
Video output: 1,0 Vpp
Video system: PAL
White balance: AWB
Certifications: CE, RoHS, Reach

Scope of delivery:

  • 1x Tube camera
  • 1x User guide
  • 1x Installation material
