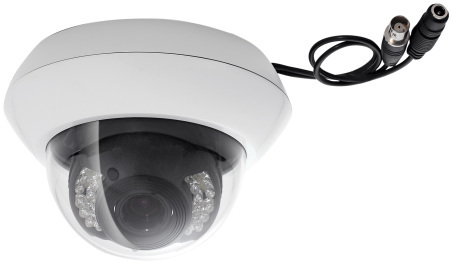

WD DNR IR Vario 650 TVL dome camera (Art. no. TVCC70500)

Special product features:

  • 650 TVL resolution
  • Sony Effio chip set with Soft WDR function for clear image display even under strong contrast conditions
  • DNR function for images free of noise
  • Varifocal lens, 2.8 – 10.5 mm
  • Auto-IR LED function for automatic adaptation of LED power
  • Plug & play camera module and mounting plate for quick installation
  • 3-axis camera mount

The WD DNR Vario dome camera is ideal for monitoring areas with unfavourable light conditions. Thanks to the state-of-the-art Sony Effio-E chip set, it deals very well both with backlight as well as with poor lighting. Another plus point is the high resolution of a genuine 650 TV lines in 960 H format and the integrated variofocal lens, which allows flexible adjustments for the situation to be monitored. Installation is very user-friendly, as the mounting plate is attached separately. The camera module is then connected using the Easy Plug function. The triaxial camera holder allows a flexible alignment of the dome camera.

Technical data:

Art. no.: TVCC70500
Dimensions: (HxØ) 99.5 x145 mm
Connections: 2 x BNC, 1V s-s, 75 Ohm (Cinch), 5.5x2.1mm (DC)
Image sensor: 1/3" Sony Exview HAD II CCD
Pixels (effective): 976(H) x 582(V) pixel
Pixels (total): 1028(H) x 596(V) pixel
Aperture at minimum illumination (color): 2.0, 3
Width: 145 mm
Focal length: 2,8 – 10,5 mm
DSP: 1/3" Sony Effio-E
Dynamic range (WDR): 46 dB
Electronic shutter: AI
Backlight compensation: Soft-WDR, BLC, HLC (High Light Compensation)
Height: 100 mm
Horizontal angle of view: 27,4 – 101,8 °
IR range: 10 m
Camera type: Dome camera
Power consumption: 120 W
Max. operating temperature: 50 °C
Max. humidity: 85 %
Min. operating temperature: -10 °C
Minimum illumination (color): 0,05
Minimum illumination (IR): 0
Net weight: 0.45 kg
Lens: 2,8 – 10,5 mm
Lens control: DC
Optical zoom: 3.75
Noise reduction: 2D DNR
IP protection class: 34
Signal-to-noise ratio: 48
DC voltage supply: 12 V
Control: DC
Power consumption: 450 mA
Day/night switching: IR cut can be swivelled electromagnetically
TVL: 650 TVL
Amplifier control: AGC
Video output: FBAS (1 Vss, 75 Ohm)
Video system: PAL
White balance: ATW, 1800~10500K
Certifications: CE, ROHS, Reach

Scope of delivery:

  • 1x DC 2-pin adapter
  • 1x Installation material
  • 1x Tinted dome
  • 1x User guide
