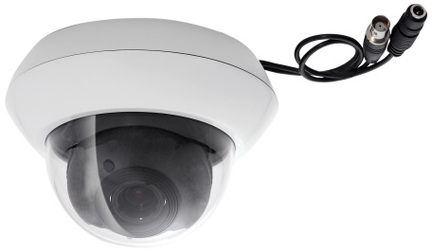

S-Lux Vario 550 TVL dome camera front view
DGUV
||||||

S-Lux Vario 550 TVL dome camera (Art. no. TVCC35010)

Special product features:

  • 550 TVL resolution
  • Light-sensitive chip set for clear image display under poor light conditions
  • Integrated 2.8 – 10.5 mm Vario lens
  • Plug & play camera module and mounting plate for quick installation
  • 3-axis camera mount

This Vario dome camera with innovative S-Lux technology has been specially developed for monitoring poorly-lit areas without any blackout phases (such as underground garages, foyers, corridors or operating facilities). Thanks to the Easy Plug module, the base plate is first attached to the wall or ceiling before the camera module is simply positioned on top - the connection is made using contact points. The 2.8 - 10.5 mm variofocal lens is set to the desired angle of view beforehand. Easy to install, hard to beat - the qualities of this high-resolution 550 TVL Vario dome camera speak for themselves.

Technical data:

Art. no.: TVCC35010
Dimensions: (HxØ) 99.5 x145 mm
Connections: 2 x BNC, Cinch, DC (5.5x2.1mm)
Image sensor: 1/3'' Sharp HQ CCD
Pixels (effective): 752(H) x 582(V) pixel
Pixels (total): 795(H) x 596(V) pixel
Aperture at minimum illumination (color): 2.0, 50
Width: 145 mm
Focal length: 2,8 – 10,5 mm
DSP: Sharp
Electronic shutter: AI
Backlight compensation: BLC
Height: 100 mm
Horizontal angle of view: 27,4 – 101,8 °
Camera type: Dome camera
Power consumption: 1,2 W
Max. operating temperature: 50 °C
Max. humidity: 85 %
Min. operating temperature: -10 °C
Minimum illumination (color): 0,3
Net weight: 0.33 kg
Lens: 2,8 – 10,5 mm
Lens control: DC
Optical zoom: 3,75
Signal-to-noise ratio: 48
DC voltage supply: 12 V
Control: DC
Power consumption: 120 mA
TVL: 550 TVL
Amplifier control: AGC
Video output: 2 x FBAS (1 Vss, 75 Ohm)
Video system: PAL
White balance: AWB
Certifications: CE, RoHS, Reach

Scope of delivery:

  • 1x Tinted dome
  • 1x Installation material
  • 1x DC 2-pin adapter
  • 1x User guide
